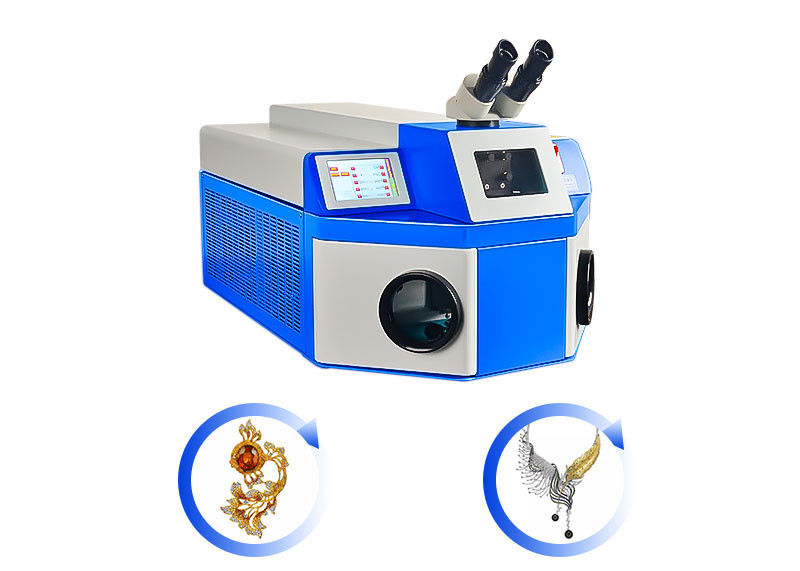

Desktop Style Jewelry YAG Laser Welding Machine 200W Power Soldering

Desktop Style Jewelry YAG Laser Welding Machine 200W Power Soldering

  • Name
    YAG Laser Welding Machine 200W
  • Light Spot
    0.3-2.5 Mm
  • Laser Pulse Width
    0.1-20ms
  • Laser Pulse Frequency
    0-50Hz
  • Laser Power
    200W
  • Power Supply
    220V/50Hz
  • Max Output Power
    60 W
  • Control System
    Computer Control
  • Net Weight
    103kg
  • Dimension
    83*53*38 Cm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO / CE / FDI
  • Model Number
    CW-J2
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Wooden cases for export
  • Delivery Time
    15-30 Work days
  • Payment Terms
    L/C, T/T,
  • Supply Ability
    100 set / Month

Desktop Style Jewelry YAG Laser Welding Machine 200W Power Soldering

Desktop Style Jewelry YAG Laser Welding Machine

200W Power Soldering

Product Description:

This welder is specially developed for laser welding of jewelry by Toch-tech and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application.The spot welding process is thermal conduction, The laser radiation heats the surface of work piece,and the surface heat diffuse to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser-pulse to form specific molten pool. Because of its unique advantage,it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

Feature:

One-button operation for automatic pumping,pwm continuously variable fans,touch screen integrated CCD display.
1.Small heat affected zone;
2.Does not lead to the product deformation welding the weld depth is big;
3.Welding firmly;
4.Melting fully,without tracheotomy,leave no trace repair; 5.Can work continuously 24 hour a day.
Laser System
CW-J2
Laser Type
1064nm YAG Laser
Nominal Laser Power
60W
Beam Diameter
0.5-3.0mm
Pulse Width
0.1-15ms
Frequency
1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy
40J
Host Power Consumption
≤2.5KW
Cooling System
Build in Water Cooling
Aiming and Positioning
Microscope + CCD Camera System
Operating Mode
Touch Control
Pump Source
Single lamp
Display Touch Screen
10X high quality colorful CCD
Electrical Connection Values
AC 110V/220V ± 5%, 50HZ / 60HZ
Machine Dimension
RL-Y60: L51CM×W29.5CM×H42CM
Wooden Package Dimension
RL-Y60: L63CM*W52CM*H54CM
Machine Net Weight
35KG
Machine Gross Weight
40KG
Operating Environmental Temp
≤45℃
Humidity
< 90% non-condensing
Application
Welding and repairing all kinds of jewelry and accessories



Desktop Style Jewelry YAG Laser Welding Machine 200W Power Soldering 0

Advantage:

High speed,high efficiency,deep,small deformation,small heat effect area,high welding quality,pollution free welding
spot,environment friendly.

Application:

Widely used in precision machining of small parts,for example:Jewelry, denture dentures, communication tools, metal products,
watches,stainless steel and other industries.

Desktop Style Jewelry YAG Laser Welding Machine 200W Power Soldering 1


Packing and Shipping:
Packaging and Shipping

The Jewelry Laser welding Machine is shipped in a secure, well-sealed cardboard box. The box contains the machine, any additional parts, a manual for setup and operation, a power cable, and a warranty card.

The box is then placed into a shrink-wrapped protective layer and secured with bubble wrap to ensure that it is not damaged during transit. It is then labeled with the shipping address and ready for pick-up.

FAQ:

Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from

bao'an International airport to our factory.



Q2: How many years do you do this business?

A2: From 2008.



Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.



Q4: What is payment terms?

A4: 100% T/T advanced.



Q5: About shiping?

A5: 3-10 days after payment for standard products, please consult our sales for customized products.



Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.



Q7: Do you have patents or core technology?

A7: Yes, for details, please contact our sales.



Q8: Where have you sold your products?

A8: Europe, Americas, Africa, and Asia.
