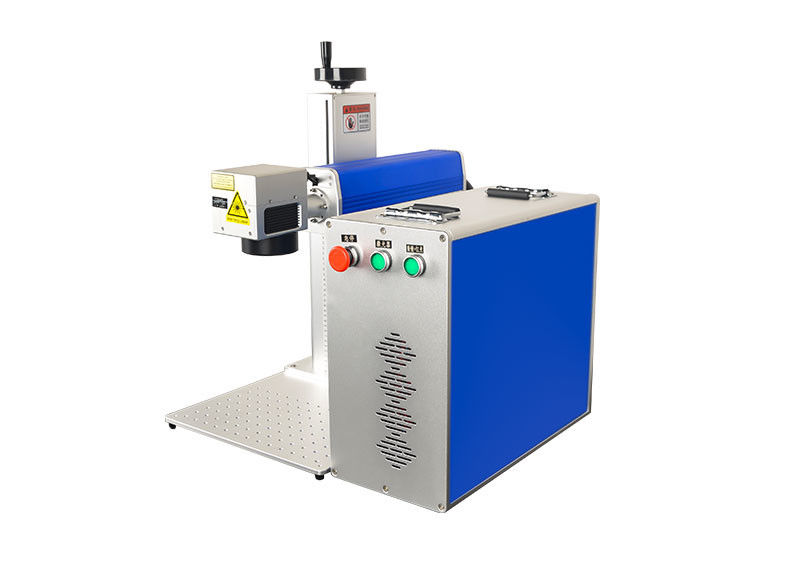

Portable 100W Fiber Laser Marking Machine For Metal And Stainless Deep Marking
APPLICATION INDUSTRIES
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
PRODUCT PARAMETER
| Laser Type | Fiber Laser |
| Laser Power | 100W |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | BMP / Dst / Dwg / LAS / DXF /AI |
| Working Accuracy | 0.01mm |
| Laser Source Brand | JPT |
| Weight (KG) | 88 KG |
| Marking Area | 300mm*300mm |
| Configuration | Stand-alone |
| Control Software | EZCAD |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Marking Depth | 0.01- 2 mm |
| Marking material | Metal / Stainless |
INTRODUCTION
Fiber laser marking machine is the use of fiber laser, the laser beam on the surface of a variety of different substances, through light energy to make the surface material physical or chemical changes, so as to carve out patterns, trademarks and text and other permanent marking equipment. Its components include: fiber laser, laser galvanometer, field mirror, industrial computer, monitor, cabinet, control switch, power supply, scale and lifting shaft, etc. MOPA laser marking machine is also a type of fiber laser marking machine.
PRODUCT DESCREPTION
WHAT CAN THE MACHINE DO
HOW TO CHOOSE LASER MARKING MACHINE?
Laser marking machine is the use of laser beam to hit a variety of different substances on the surface, through light energy to make the surface material physical or chemical changes, so as to carve out patterns, trademarks and text and other permanent marking equipment.
Common laser marking machines are:
Fiber laser marking machine, CO2 laser marking machine, UV laser marking machine, etc.
The main configuration components of the laser marking machine include: laser, galvanometer, field mirror, marking card, industrial computer, cabinet shell, scale and lifting shaft.
Production enterprises in the selection of laser marking machine, first of all to consider the material of the product to be processed, the material is different, the configuration parameters are different.
For example, metal engraving generally uses fiber laser marking equipment, non-metallic materials can use carbon dioxide laser marking equipment, ultra-fine marking, drilling is recommended to use UV laser marking equipment.
The main product parameters of laser marking machine are: laser type, laser wavelength, laser power, marking range, engraving speed, etc., in which the marking range is determined by the field mirror, and the marking speed is also affected by the material density of the product, the depth of the mark, the size of the marking format and other factors.
PACKAGE AND SHIPMENT
1.We have three layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-worthy packing or Sea packing which with international standard.
SERVICE
1.one year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.
6.For free sample testing, please send us your file, we will do marking here and make video to show you the effect, or send sample to you for checking quality.
PAYMENT
FAQ
Q1. What support do I get with my laser machine?
Our products are sold all over the world, you can rest assured.
