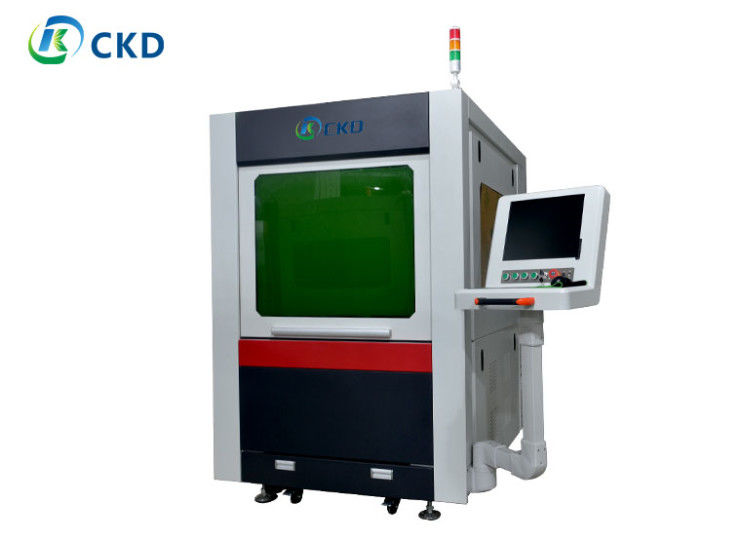

♦ High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
♦ Gantry double-drive structure, with imported German rack & pinion transmission system, improves the production efficiency.
♦ High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
♦ Close-loop laser cutting control system, auto focus, high-speed piercing and automatic tracing-edge function.
| Maximum working area | 1500*3000mm,4000*1500mm, 4000*2000mm,6000*2000mm,2500*6000mm ( optional) |
| Cutting thickness | Depend on the laser power |
| Laser power | 1000-20000w |
| Transmission mode | Imported square rail and helical gear |
| Positioning accuracy of X/Y axis | ±0.01 mm |
| Repositioning accuracy of X/Y axis | ±0.02 mm |
| Maximum moving speed of X/Y axis | 120m/min |
| Minimum cutting line width | 0.02mm |
| Floor dimension | Depend on the laser power |
| Whole weight | Depend on the laser power |
Laser source
Raycus/MAX/IPG The higher the power, the thicker the application material. Laser power from 1kw to 12kw, high brightness (high power, small spot), high stability/thermal redundancy, various fiber output core diameters optimized for application requirements compact and robust design for built-in laser scanning oscillator and optical head, integrated optical gate, optical coupler and time-sharing optical gate for extended functionality
High grade aviation aluminum material
High grade aviation aluminum material is used, with a rigidity increase of 60%, high temperature resistance, and improved equipment operation stability.
Aviation aluminum is light in weight, with a total weight reduction of 20%, which meets the needs of high-speed and high-precision operation of the beam and is not prone to deformation.
The 10000 ton extrusion production and processing process ensures excellent mechanical properties of the beam and reduces the failure rate.
Raytools Laser Cutting Head
Auto focus, free your hand, with more accuracy and fast speed. Optimized optical configuration, smooth & efficient airflow design, improve cut quality and efficiency, keep high accurate and Anti-collision function, free from the risk of collision; Collimation lens, focusing lens and nozzle are all have cooling structures, 3 pieces of protection lens, highly effective protection of collimating focus lens.
control panel CYPCUT
The system supports input in multiple languages and formats, intelligent typesetting and minimization of leftover material. You don't have to worry about not having skilled workers. We provide training
Servo motor
from Japan using top brand Yaskawa, Fuji, etc. High power motor system on X, Y, Z axis. High precision brings better cutting effect, high speed brings faster cutting speed.
Cutting Material
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
Q1 : Could I visit your factory ?
A1 : Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2 : How many years do you do this business?
A2 : From 2008.
Q3 : Does your factory have the design & development capacities, we need customized products?
A3 : yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4 : What is payment terms?
A4 : 100% T/T advanced.
Q5 : About shiping?
A5 : 3-10 days after payment for standard products, please consult our sales for customized products.
Q6 : How about your after service?
A6 : Our engineers who has long time professional experience and sales will help you within 24h.
Q7 : Do you have patents or core technology?
A7 : Yes, for details, please contact our sales.
Q8 : Where have you sold your products?
A8 : Europe, Americas, Africa, and Asia.
Our products are sold all over the world, you can rest assured.
