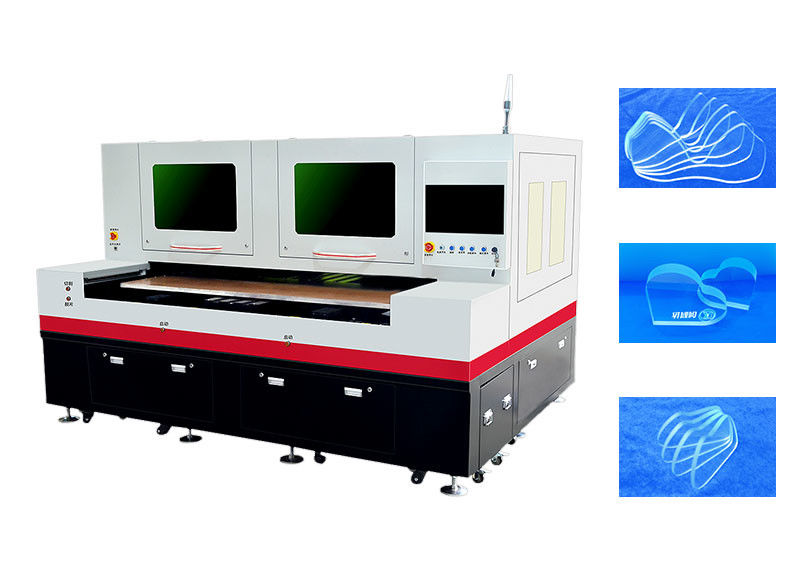

2000×2000mm Work Size Laser Glass Cutting Machine
With Infrared Picosecond Laser
Product Advantages
1. The light source is high power picosecond laser
2. Self-developed glass cutting head, all imported lenses, light spot fine, deep focus
3. Support cutting segments in one, separate cutting, separate segments
4.X/Y axis motor adopts high-end linear motor, Germany 0.1um digital grating ruler
5. Motion control standard PSO function, uniform control of laser spot spacing
6. Device alignment CCD and telecentric vision lens, accurately identify circle , cross and other mark points
7. The electric components are made by Schneider of France, and the switching power supply is made by Taiwan Mingwei
| Technical parameters | |||
| Work Size | 1000*1000mm*2 | Accuracy | ±0.01mm |
| Thickness | 0.03-25mm | Speed | 0-500mm/s |
| Chipping | ≤5μm | power | 50W(10W,20W,30W,60W,80W) |
| Chipping | 1064nm | power | M2<1.2 |
| Pulse width | <10PS | Pulse frequency | 1Hz-1000kHz |
| Cooling mode | water-cooling | Voltage,power | <8KW.AC220V |
Scope of application
Picosecond laser cutting machine with high processing accuracy and high efficiency is widely used in instruments , watches , mobile phones on the thick glass and extra thick glass cutting , such as : ultra white glass , white glass , high borosilicate glass , quartz glass , mobile phone glass cover plate , car glass cover plate , camera glass cover plate . Mobile phone sapphire cover , camera sapphire glass cover , sapphire light strip (LED light strip) and so on .
FAQ
Q1 : Does your factory have the design & development capacities, we need customized products?
A1 : yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q2: About shiping?
A2:15 - 45 days after payment for standard products, please consult our sales for customized products.
Q3 : How about your after service?
A3.Our engineers who has long time professional experience and sales will help you within 24h.
Q5 : How many years do you do this business?
A5 : From 20108.
Q6 : Does your factory have the design & development capacities, we need customized products?
A6 : yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q7 : What is payment terms?
A7 : 100% T/T advanced.
Our products are sold all over the world, you can rest assured.
