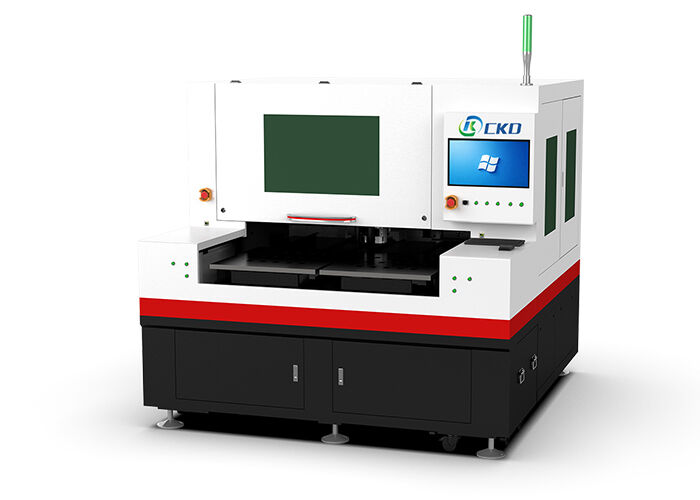

Laser Glass Cutting Machine Offering Fast Processing Speed and Consistent Cutting Results for Large Scale Production

Product Description:

The Laser Glass Cutting Machine is a state-of-the-art solution designed to meet the demanding requirements of modern glass processing industries. Engineered with precision and advanced technology, this machine offers unparalleled performance for various glass cutting applications, including irregular glass cutting and colored glass cutting. It incorporates cutting-edge features and robust construction to ensure high efficiency, accuracy, and reliability.

With dimensions of 2150mm × 2080mm × 1960mm or alternatively 2550mm × 2080mm × 1960mm, this Laser Glass Cutting Machine is compact yet spacious enough to handle a wide range of glass sizes. The thoughtfully designed frame and layout provide stability during operation, reducing vibrations and ensuring consistent cutting quality. These dimensions make it suitable for integration into existing production lines or standalone use in workshops.

One of the key highlights of this machine is its advanced transmission system based on rack and pinion technology. This system guarantees smooth and precise movement of the cutting head, enabling it to navigate complex glass shapes and contours with ease. The rack and pinion transmission enhances the machine's durability and minimizes maintenance requirements, thereby reducing downtime and operational costs.

The drive motor system features an XY linear motor combined with a grating ruler for position feedback. This innovative combination ensures highly accurate and responsive motion control, which is critical for achieving clean and precise cuts, especially when dealing with irregular glass cutting tasks. The linear motor technology also provides faster acceleration and deceleration, contributing to increased overall productivity.

At the heart of the Laser Glass Cutting Machine lies its splitting laser source: the RFC02 Radio Frequency CO2 laser. This laser source operates at a wavelength of 10.6μm and is available in multiple power configurations, including 150W as standard, with optional upgrades to 250W or 350W. The laser’s frequency range from 1 to 100kHz allows fine-tuning of cutting parameters to suit various glass types and thicknesses. The water cooling system integrated into the laser source ensures stable operation and prevents overheating, extending the lifespan of the laser components.

The cutting speed on this machine is fully adjustable from 0 up to 500mm/s, allowing operators to tailor the process depending on the complexity of the glass design and material characteristics. This flexibility is particularly beneficial when working with colored glass cutting machine applications, where precise control over heat input and cutting velocity is essential to avoid discoloration or damage.

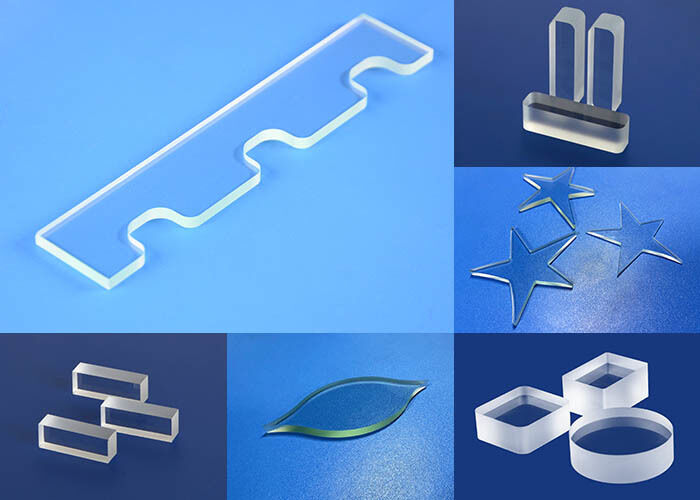

While primarily designed for glass, this Laser Glass Cutting Machine shares some technological advancements with Fiber Laser Cutting Machines, particularly in terms of precision and motor control, making it a versatile and forward-looking investment. Its ability to handle irregular shapes and various glass types, including colored and patterned glass, makes it an indispensable tool for manufacturers seeking to expand their product offerings and improve production efficiency.

In summary, the Laser Glass Cutting Machine stands out as a powerful, reliable, and versatile piece of equipment tailored for intricate and high-quality glass cutting tasks. Its combination of compact dimensions, advanced rack and pinion transmission, XY linear motor drive with grating ruler feedback, and a high-performance RFC02 RF CO2 laser source make it ideally suited for a wide range of industrial applications. Whether your focus is on irregular glass cutting or operating a colored glass cutting machine, this product provides the precision, speed, and adaptability required to excel in today’s competitive market.

Technical Parameters:

Applications:

The CKD brand Laser Glass Cutting Machine, featuring models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, and many more, is designed to serve a variety of application occasions and scenarios where high precision and efficiency are paramount. Originating from China and certified with ISO and CE standards, this glass cutting and splitting machine (All-in-One) is ideal for industries requiring exact and clean glass cuts with a tolerance as fine as ±0.01mm.

One of the most common application scenarios for the CKD Laser Glass Cutting Machine is in the production of architectural and automotive glass. The single table glass cutting machine design allows for streamlined processing of large glass sheets used in windows, facades, and vehicle windshields. Its environmental protection glass laser cutting machine technology ensures minimal waste and reduced environmental impact, aligning with modern sustainable manufacturing practices.

In addition, the CKD models such as CKD-DP6070D-50E and CKD-SP6070S-80TE are widely used in the electronics industry for cutting glass panels in smartphones, tablets, and display screens where precise dimension control and edge quality are critical. The machine’s acceleration of 1G facilitates rapid cutting speeds without compromising accuracy, making it suitable for high-volume production lines.

Another important application occasion includes the production of decorative and specialty glass products. The all-in-one capability of cutting and splitting glass sheets makes it highly effective for manufacturers producing mirrors, glass furniture, and artistic glass panels. Its robust 3500kg weight and wooden vacuum packaging ensure stable operation and safe delivery, even when shipped over long distances.

Maintenance scenarios for the CKD laser glass cutting machine include recommended optical alignment every 200 hours and coolant replacement every 1000 hours, supported by regular remote diagnostics and software updates. This ensures consistent performance and longevity, which is essential for industries requiring reliable and continuous glass processing. The supply ability of 60 sets per month and flexible payment terms like L/C and T/T further enhance its suitability for various enterprise scales.

Overall, the CKD single table glass cutting machine models provide versatile and reliable solutions for glass cutting needs in construction, automotive, electronics, and decorative applications, making it a preferred choice for those seeking precision, environmental protection, and operational efficiency in glass manufacturing.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precision, efficiency, and reliability for all your glass processing needs. To ensure optimal performance and longevity of your machine, please refer to the following technical support and service guidelines.

Technical Support:

Our dedicated technical support team is available to assist with installation, setup, troubleshooting, and maintenance queries. We provide comprehensive user manuals and software updates to keep your machine running smoothly. For any technical issues, please ensure you have your machine model and serial number ready for faster assistance.

Maintenance Services:

Regular maintenance is crucial for the optimal functioning of your Laser Glass Cutting Machine. We recommend routine cleaning of optical components, checking alignment, and verifying the calibration of the laser system. Our service professionals can perform preventive maintenance and repairs to minimize downtime and extend the life of your equipment.

Training and Consultation:

We offer training sessions to help your operators understand the full capabilities of the machine and adhere to safety protocols. Additionally, consultation services are available to customize machine settings according to specific glass types or cutting requirements.

Warranty and Repairs:

The Laser Glass Cutting Machine comes with a standard warranty covering parts and workmanship. In case of malfunction or defects, our authorized service centers provide repair services using genuine spare parts. Extended warranty plans and service contracts are also available for added peace of mind.

For detailed information about your Laser Glass Cutting Machine or to schedule a service appointment, please refer to the product documentation provided with your machine.
