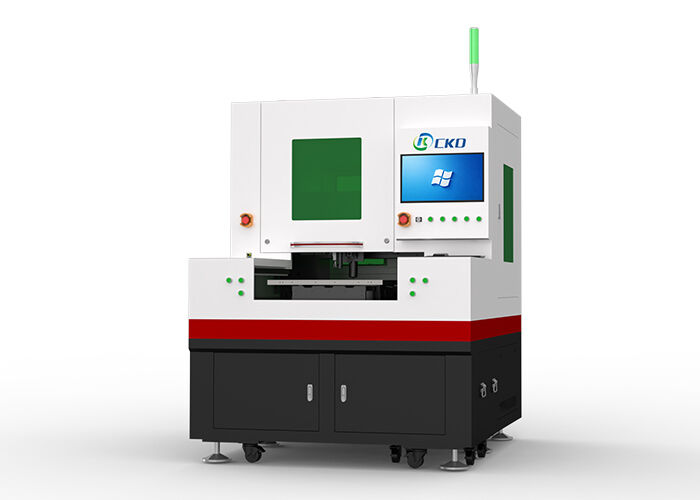

Laser Glass Cutting Machine equipped with advanced laser technology providing accurate and clean cuts on glass surfaces

Product Description:

The Laser Glass Cutting Machine is an advanced and high-performance device designed specifically for precision cutting of various types of glass, including stained glass and irregular glass shapes. Utilizing cutting-edge laser technology, this machine offers unparalleled accuracy and efficiency, making it an essential tool for industries requiring meticulous glass cutting solutions. Its robust design and sophisticated features ensure that both professional craftsmen and industrial manufacturers can achieve exceptional results with minimal effort.

One of the standout features of this Laser Glass Cutting Machine is its working voltage of 220V, which ensures stable power supply and consistent operation. This voltage level is ideal for maintaining the machine’s performance over long periods, allowing for continuous and reliable use in demanding production environments. The machine is equipped with a splitting laser source that operates within a pulse frequency range of 1-100kHz, providing flexibility to adjust the cutting speed and precision according to the specific requirements of different glass types and thicknesses.

The splitting laser source emits light at a wavelength of 10.6µm, which is perfectly suited for cutting glass materials. This wavelength allows for efficient absorption by the glass, resulting in clean and smooth edges without causing cracks or thermal damage. This characteristic is particularly important when working with delicate stained glass or irregular glass pieces that require careful handling to preserve their integrity and aesthetic appeal.

Equipped with CNC (Computer Numerical Control) technology, the Laser Glass Cutting Machine offers automated and highly accurate control over the cutting process. This CNC capability enables the machine to execute complex cutting patterns and shapes with remarkable precision, making it ideal for custom projects and intricate designs. Whether you need straight cuts, curves, or irregular shapes, the machine’s CNC system ensures that each piece is cut exactly to specification with minimal human intervention.

One of the key advantages of this High Precision Laser Cutting Machine is its exceptional cutting accuracy of ±0.01mm. This level of precision guarantees that each cut meets stringent quality standards, reducing material waste and enhancing the overall efficiency of production. Such accuracy is critical for applications where tight tolerances are necessary, such as in architectural glass installations, decorative stained glass artwork, and specialized industrial glass components.

The Laser Glass Cutting Machine is particularly renowned for its capability to handle irregular glass cutting tasks with ease. Traditional cutting methods often struggle with non-standard shapes, leading to rough edges and increased risk of breakage. In contrast, this machine’s laser technology and CNC control allow for smooth, precise cuts even on complex, irregular glass forms. This makes it an invaluable tool for artisans and manufacturers who work with custom stained glass designs or bespoke glass projects.

In addition to its technical excellence, the machine is designed for user-friendly operation and maintenance. The integration of CNC control simplifies programming and setup, enabling operators to quickly switch between different cutting jobs without extensive downtime. Furthermore, the laser cutting process is non-contact, which minimizes wear and tear on the machine components and reduces the need for frequent maintenance.

In summary, the Laser Glass Cutting Machine is a state-of-the-art stained glass cutting machine that combines advanced laser technology, CNC precision, and versatile functionality to deliver superior glass cutting performance. Its 220V working voltage, 1-100kHz pulse frequency laser source, 10.6µm wavelength, and ±0.01mm cutting accuracy make it a top choice for industries and artisans seeking a reliable solution for high precision laser cutting tasks. Whether you are engaged in irregular glass cutting or require flawless stained glass pieces, this machine offers the precision, efficiency, and durability needed to meet the highest standards of quality and craftsmanship.

Features:

• Product Name: Laser Glass Cutting Machine
• Laser Power Options: 30W, 50W, 60W, 75W, 80W, 90W
• Linear Speed: Up to 1000mm/s for efficient cutting
• Drive Motor: XY Linear Motor combined with Grating Ruler for precise movement
• Cutting Width Range: 0.03mm to 25mm suitable for various glass thicknesses
• Brand: CKD
• Environmental protection glass laser cutting machine ensuring eco-friendly operation
• High Precision Laser Cutting Machine delivering accurate and clean cuts
• Thick glass laser cutting machine capable of handling thicker glass materials

Technical Parameters:

This Fiber Laser Cutting Machine is an ideal colored glass cutting machine and small glass laser cutting machine, offering precision and efficiency for various glass cutting applications.

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, and CKD-SP6070C-80E, is designed to meet the demanding needs of high precision laser cutting in various industrial applications. Manufactured in China and certified with ISO and CE, these machines guarantee quality and reliability. With a supply ability of 60 sets per month and flexible payment terms including L/C and T/T, CKD ensures timely and efficient delivery within 25-45 days, packaged securely with wooden vacuum packaging to protect the equipment during transit.

These advanced laser glass cutting machines are ideal for a wide range of application occasions and scenarios. The high precision laser cutting machine is perfectly suited for industries requiring meticulous and detailed cutting of glass materials, including architectural glass, automotive glass, and decorative glass production. Its ability to handle irregular glass cutting efficiently makes it invaluable for custom glass shaping and design, where traditional cutting methods fall short. The optical glass laser cutting machine models within this series are specifically engineered to process delicate and sensitive optical glass components used in electronics, medical devices, and precision instruments, ensuring minimal stress and high-quality edges.

The CKD laser glass cutting machines operate optimally in a controlled working environment at 26℃, utilizing advanced TPI linear guides for smooth and accurate motion control. The splitting laser source with a pulse frequency range of 1-100kHz and pulse width of less than 10ps allows for ultra-fine and clean cuts, essential for high-end applications requiring precision and minimal thermal impact. Weighing approximately 3500kg, these machines combine robust construction with cutting-edge technology to deliver consistent performance.

Whether used in glass manufacturing plants, research laboratories, or precision engineering workshops, the CKD series supports diverse scenarios such as prototyping, small batch production, and large-scale manufacturing. Its versatility in handling various glass thicknesses and shapes makes it a preferred choice for manufacturers aiming to enhance productivity and product quality. By integrating this laser glass cutting machine into their operations, businesses can achieve superior cutting accuracy, reduced material waste, and faster turnaround times, ultimately driving innovation and competitiveness in the glass processing industry.

Customization:

CKD offers professional product customization services for the Laser Glass Cutting Machine, model numbers including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070D-50E, CKD-SP6070D-60E, and CKD-SP6070C-50E series. Originating from China and certified with ISO and CE standards, these machines ensure high precision with a positioning accuracy of ±2μm.

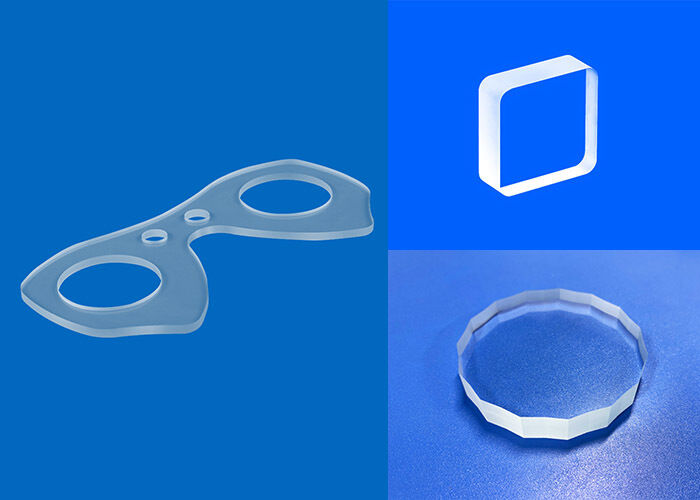

We specialize in customizing environmental protection glass laser cutting machines designed for various applications such as ultra clear glass, plain white glass, high borosilicate glass, quartz glass, optical glass, phone glass covers, car glass, camera glass covers, LCD screens, K9 glass, filters, and mirrors. Our machines support irregular glass cutting and thick glass laser cutting, meeting diverse industry needs.

With a minimum order quantity of 1 and flexible pricing negotiable to suit your requirements, CKD guarantees reliable supply ability of up to 60 sets per month. Each machine is delivered within 25-45 days, securely packaged in wooden vacuum packaging to ensure safe transportation.

The laser glass cutting machines feature advanced advantages such as high-speed cutting, no taper or burr, minimal chipping, high yield rate, and low consumable and energy consumption, making them an eco-friendly choice with no pollution, powder, or wastewater. Equipped with a 1G acceleration and efficient water cooling system, these machines provide stable and efficient performance.

Payment terms are flexible, including L/C and T/T options, offering convenience and security for your purchase. Trust CKD to customize the perfect laser glass cutting solution tailored to your production needs, combining cutting-edge technology with environmental responsibility.

Support and Services:

Our Laser Glass Cutting Machine is designed to provide precise and efficient cutting solutions for various types of glass. To ensure optimal performance and longevity of your machine, please follow the guidelines below:

Installation and Setup: Ensure the machine is installed on a stable, level surface in a clean, dust-free environment. Follow the user manual for proper electrical connections and initial calibration procedures.

Operation: Only trained personnel should operate the machine. Use the recommended software settings for different glass types and thicknesses. Always wear appropriate safety gear, including protective eyewear.

Maintenance: Regularly clean the machine components, including the laser lens and cutting bed, to prevent residue buildup. Check and replace any worn parts as indicated in the maintenance schedule. Lubricate moving parts as necessary to maintain smooth operation.

Troubleshooting: If you encounter issues such as inconsistent cutting quality or machine errors, refer to the troubleshooting section of the user manual. Common solutions include recalibrating the laser, checking for software updates, and ensuring all connections are secure.

Software Support: Our machine is compatible with the latest version of the included control software. For updates and patches, please visit our official website. Ensure your computer meets the minimum system requirements for optimal software performance.

Warranty and Repairs: The Laser Glass Cutting Machine comes with a standard warranty covering manufacturing defects. For repairs outside the warranty period, please consult authorized service centers to ensure genuine parts and expert service.

For further assistance, please refer to the detailed user manual provided with your machine or visit our support page online.
