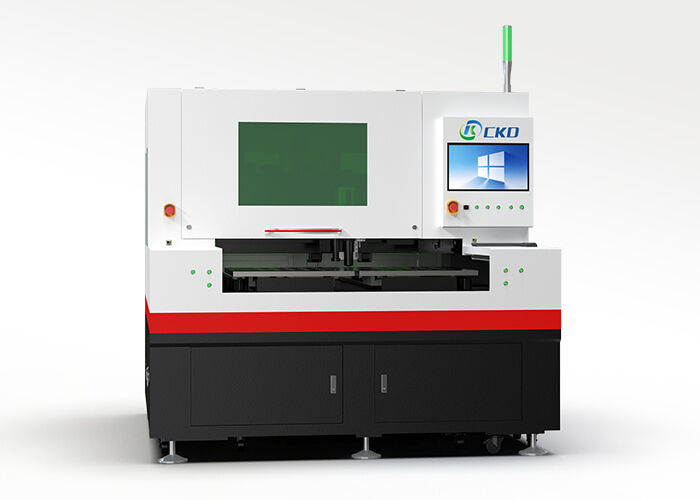

Laser Glass Cutting Machine offering automated control systems and high precision suitable for complex glass cutting tasks

Product Description:

The Laser Glass Cutting Machine is a state-of-the-art solution designed to meet the diverse needs of modern glass processing industries. Engineered for precision and efficiency, this machine excels in irregular glass cutting, making it an indispensable tool for manufacturers requiring complex shapes and customized designs. As a polygonal glass cutting machine, it offers unparalleled accuracy in cutting multi-sided glass pieces, ensuring clean edges and minimal waste. Its single table glass cutting machine configuration provides a streamlined workflow, enabling operators to handle various glass types with ease and speed.

One of the standout features of this laser glass cutting machine is its exceptional compatibility with automation systems. It supports seamless integration with major automation platforms, including robot interfaces and automatic loading/unloading systems. This compatibility allows for enhanced automation of production lines, reducing manual intervention and boosting overall productivity. The machine also supports standard industrial communication protocols such as Modbus and OPC, ensuring smooth communication with existing factory control systems and facilitating real-time monitoring and control.

The machine supports a wide range of image and text formats, making it highly versatile for various design inputs. It can process AI, PLT, DXF, BMP, DST, DWG, LAS, and DXP formats, allowing designers and operators to import intricate patterns and detailed instructions directly from their preferred software. This broad compatibility ensures that the laser glass cutting machine can handle diverse project requirements, from simple cuts to highly detailed and complex designs.

At the core of its cutting mechanism is a precision transmission system based on rack and pinion technology. This system delivers smooth and accurate movement of the cutting head, ensuring consistent cutting quality across the entire glass surface. The rack and pinion transmission enhances the machine's durability and reduces maintenance needs, making it a reliable choice for continuous industrial use.

The laser pulse width of this machine is less than 10 picoseconds (<10ps), which is critical for achieving fine and precise cuts without causing thermal damage to the glass. Such an ultra-short pulse width minimizes heat-affected zones, preventing cracks, chips, or discoloration around the cut edges. This capability is especially important for cutting delicate or thin glass materials where precision and quality are paramount.

The working environment for the laser glass cutting machine is optimized at 26℃, ensuring stable performance and consistent output quality. Maintaining this controlled temperature helps in preserving the laser’s efficiency and the mechanical components' longevity. It also contributes to the overall safety and reliability of the cutting process, making the machine suitable for continuous operation in industrial settings.

In summary, this laser glass cutting machine combines advanced technology with practical features to deliver superior performance in irregular glass cutting and polygonal glass cutting applications. Its single table glass cutting machine design, extensive format support, integration capability with automation systems, and cutting-edge transmission and laser pulse technologies make it an ideal choice for manufacturers aiming to enhance precision, efficiency, and automation in their glass processing operations. Whether for small-scale custom jobs or large-scale industrial production, this machine stands out as a versatile and reliable partner in the glass cutting industry.

Features:

• Product Name: Laser Glass Cutting Machine
• Cutting Precision: ±0.01mm for high accuracy
• Working Frequency: 50HZ/60HZ for versatile operation
• Splitting Laser Source Power: 150W (optional 250W/350W available)
• Linear Guide Brand: TPI for smooth and precise movement
• Ideal as a Small Glass Laser Cutting Machine for detailed work
• Designed as an Environmental Protection Glass Laser Cutting Machine

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070D-50E, CKD-SP6070S-50E, and others, is designed to meet a wide range of industrial cutting needs with precision and efficiency. Originating from China and certified by ISO and CE, these machines are perfect for various application occasions and scenarios in industries that demand high-quality glass cutting.

In the glassware industry, the CKD fiber laser cutting machines excel in processing optical glass, K9 glass, and ultra-thin glass with cutting thicknesses reaching up to 19mm for ultra-clear glass in a single cut and blue glass double cut. This makes them ideal for manufacturers producing precision glass components where accuracy and edge quality are paramount.

The stained glass cutting machine functionalities are highly valued in the houseware sector, where high-borosilicate glass, quartz glass, and sanitary ware glass require delicate yet efficient cutting solutions. The CKD laser glass cutting machines provide custom options for table size, laser power (up to 500W), and specialized cutting heads that can handle curved or micro-level cutting, making them highly adaptable for artistic and functional glassware production.

In the automotive industry, these colored glass cutting machines are indispensable for cutting automotive glass and car windshields. Their ability to maintain consistent quality in industrial environments with working voltage of 220V and environmental conditions ranging from 15°C to 30°C with 20%-80% relative humidity ensures optimal performance even in cleanrooms or factory floors.

The new energy sector benefits from CKD's laser glass cutting technology in photovoltaic glass production, where precision and minimal material waste are critical. Additionally, in home appliance manufacturing, these machines are used to cut home appliance glass and panel lighting glass, supporting the creation of durable, aesthetically pleasing products.

Real estate and architectural decoration industries also leverage these advanced cutting machines for producing bathroom glass, decorative architectural glass, and other specialized glass panels. The wooden vacuum packaging guarantees safe delivery within 25-45 days, with flexible payment terms such as L/C and T/T, and a supply ability of 60 sets per month.

Overall, CKD’s laser glass cutting machines, including the fiber laser cutting machine models and specialized colored glass cutting machine options, are versatile solutions tailored for diverse application scenarios. Their customizable features and robust build make them an excellent choice for businesses seeking precision, reliability, and efficiency in glass cutting operations across multiple industries.

Customization:

CKD offers customizable Laser Glass Cutting Machines with a wide range of models including CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070D-50E, CKD-SP6070D-60E, and CKD-SP6070C-50E, among others. All models are made in China and certified with ISO and CE standards, ensuring high quality and reliability.

Our Single Table Glass Cutting Machine is designed for precision and efficiency, featuring CNC capabilities for automated control and adjustable cutting speeds from 0 to 500mm/s. This customization allows for optimal performance based on your specific glass cutting requirements.

The cutting system uses an advanced RFC02 Radio Frequency CO2 laser source with options of 150W, 250W, or 350W power, operating at 10.6μm wavelength with water cooling for stable operation. The XY linear motor combined with an optical grating scale provides accurate positioning and minimal cutting burrs of ≤5um, perfect for both regular and irregular glass cutting tasks.

Customization options include tailored packaging with wooden vacuum packaging for secure delivery, and flexible payment terms such as L/C and T/T. The minimum order quantity is 1 set, with a supply capacity of 60 sets per month and delivery times ranging from 25 to 45 days depending on customization requirements.

CKD’s Single Table Glass Cutting Machine is ideal for applications requiring precise irregular glass cutting, ensuring clean and accurate cuts every time. Our customization services are designed to meet your specific production needs, providing a reliable and efficient solution for glass processing.

Packing and Shipping:

The Laser Glass Cutting Machine is carefully packaged to ensure safe delivery and optimal protection during transit. The machine is securely placed in a custom-fitted foam mold inside a sturdy wooden crate, which is reinforced to withstand shocks and vibrations. All delicate components are wrapped with anti-static and anti-scratch materials to prevent damage.

For shipping, the package is labeled with clear handling instructions including “Fragile” and “This Side Up” to guide carriers. The wooden crate is designed for easy forklift access and is treated to meet international shipping standards. We offer multiple shipping options including air freight, sea freight, and express courier services to accommodate different delivery timelines and destinations.

Upon receipt, customers are advised to inspect the packaging for any signs of damage before unpacking and to follow the included setup manual for proper installation and operation of the Laser Glass Cutting Machine.
