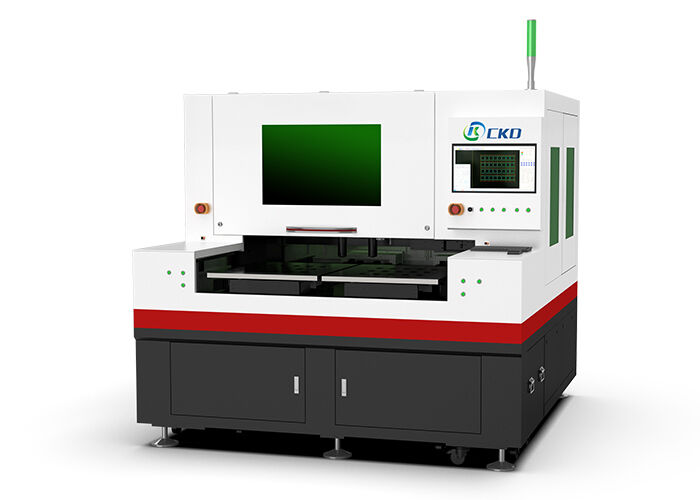

Laser Glass Cutting Machine integrated with safety protection features and easy maintenance design to ensure long term operation

Product Description:

The High Precision Laser Cutting Machine is an advanced solution specifically designed for the stained glass cutting machine industry, offering unmatched accuracy, efficiency, and versatility. Engineered to meet the demanding requirements of modern glass processing, this machine delivers exceptional performance through its state-of-the-art features and robust construction. Whether you are working on intricate stained glass designs or standard glass cutting tasks, this High Precision Laser Cutting Machine ensures superior results with minimal burr and high repeatability.

One of the standout features of this High Precision Laser Cutting Machine is its sophisticated water cooling system. This cooling mechanism effectively dissipates heat generated during the cutting process, maintaining optimal operating temperatures and ensuring stable laser output. The water cooling system not only prolongs the lifespan of the laser components but also enhances cutting precision by preventing thermal deformation of the glass material. This feature is particularly beneficial for stained glass cutting machine applications, where delicate and complex patterns require consistent quality and fine detail.

The machine boasts an impressive minimum cutting burr of ≤5μm, which signifies its capability to produce exceptionally smooth and clean edges on glass surfaces. This low burr level significantly reduces the need for secondary finishing processes, saving time and costs while preserving the integrity of the glass pieces. Such precision is crucial for stained glass cutting, where the aesthetics and structural integrity of each segment are paramount. The laser’s high acceleration of 1G ensures rapid movement and swift cutting speeds, enhancing productivity without compromising on accuracy.

Versatility is another key advantage of this High Precision Laser Cutting Machine. It offers multiple cutting area options, including 400mm*500mm, 600mm*700mm, and 600mm*900mm, allowing users to process a wide range of glass sizes and project specifications. This flexibility makes the machine suitable for various applications, from small decorative stained glass panels to larger architectural glass installations. The ample cutting area combined with precise motion control enables complex designs to be executed with ease and consistency.

In addition to its mechanical and optical excellence, the High Precision Laser Cutting Machine is designed for seamless integration with modern automation systems. It supports compatibility with major automation platforms, including robot interfaces and automatic loading/unloading systems, facilitating streamlined production workflows and reducing manual labor requirements. The machine also supports standard industrial communication protocols such as Modbus and OPC, enabling easy connectivity with factory control systems and enhancing overall operational efficiency. This integration capability is particularly valuable for manufacturers aiming to implement Industry 4.0 principles and smart factory solutions.

Overall, this High Precision Laser Cutting Machine represents a cutting-edge technology solution for stained glass cutting machine applications, combining precision engineering, advanced cooling technology, and automation compatibility. Its ability to deliver clean cuts with minimal burr, fast acceleration, and flexible cutting areas makes it an indispensable tool for glass artisans, manufacturers, and fabricators seeking to elevate their production quality and throughput. With its robust design and intelligent features, this machine sets a new standard in the field of laser glass cutting, ensuring that your stained glass creations and glass processing projects achieve the highest level of craftsmanship and efficiency.

Features:

• Product Name: Laser Glass Cutting Machine
• Laser Wavelength: 1064nm
• Thick glass laser cutting machine designed for high precision and efficiency
• Linear Speed: Up to 1000mm/s for fast and accurate cutting
• Drive Motor: XY Linear Motor with Grating Ruler for precise movement control
• Control Software: Compatible with popular CAD/CAM software including AutoCAD, SolidWorks, and CorelDRAW
• Easy-to-use interface with broad programming support for diverse cutting applications
• Maintenance Requirements: Optical alignment recommended every 200 hours and coolant replacement every 1000 hours
• Regular remote diagnostics and software updates available to ensure optimal performance
• High Precision Laser Cutting Machine suitable for various glass thicknesses and complex designs

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and many others, represents the pinnacle of precision and efficiency in glass cutting technology. Originating from China and certified with ISO and CE standards, these machines are designed to meet the diverse needs of modern industries. With a minimum order quantity of just one unit and a supply capacity of 60 sets per month, CKD ensures accessibility and reliable delivery within 25-45 days, complemented by flexible payment terms including L/C and T/T. The packaging is secured through wooden vacuum packaging to guarantee safe transportation.

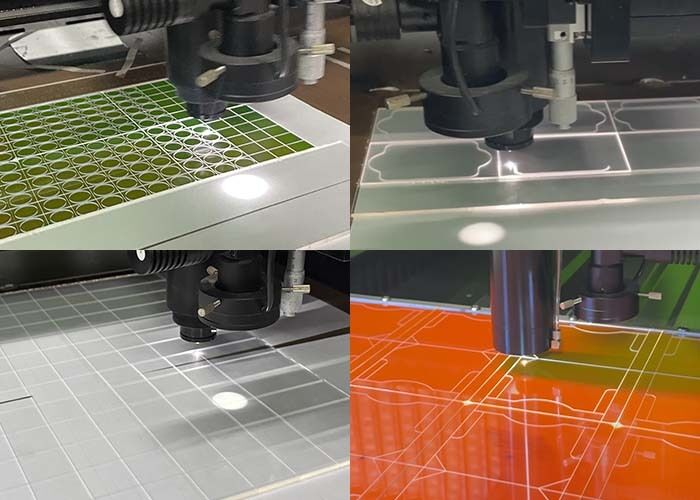

The CKD Laser Glass Cutting Machines are optimal for a wide range of application occasions and scenarios. Their advanced infrared picosecond laser technology, combined with a splitting laser source RFC02 (Radio Frequency CO2) operating at 10.6μm with power options of 150W, 250W, or 350W, allows for ultra-precise cutting of various glass materials. The adjustable cutting speed, ranging from 0 to 500mm/s, and the use of an XY linear motor paired with an optical grating scale drive motor, provide exceptional accuracy and smooth operation. These features make the machine ideal for industries requiring high precision, such as optical glass manufacturing, electronics, and decorative glass processing.

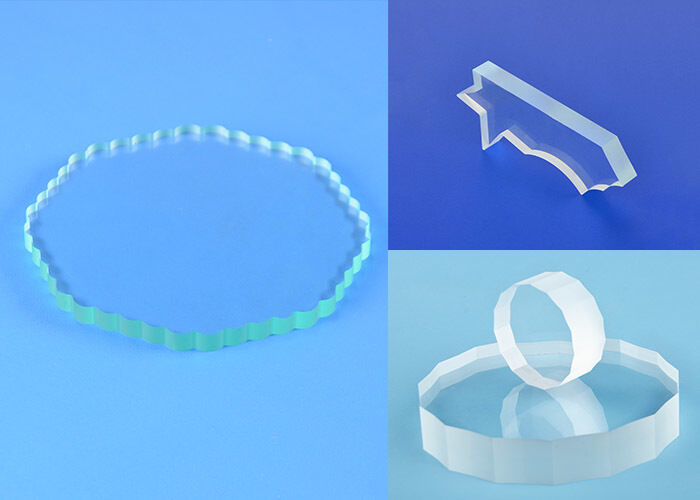

In optical glass processing applications, the CKD optical glass Laser Cutting Machine excels by delivering clean, smooth edges without micro-cracks, which is crucial for lenses, prisms, and other precision optical components. For manufacturers of colored glass, the colored glass cutting machine variants within the CKD lineup offer specialized cutting capabilities that preserve color integrity and prevent thermal damage. Additionally, the Fiber Laser Cutting Machine models are suited for cutting thin glass sheets and complex patterns with high efficiency, making them indispensable in the production of smartphone screens, glass panels, and other delicate glass products.

The versatility of the CKD Laser Glass Cutting Machine series extends to various working environments, optimized for 26℃ to ensure stable performance. Businesses engaged in custom glass fabrication, architectural glass design, automotive glass manufacturing, and even artistic glass cutting will find these machines invaluable. The ability to negotiate pricing further enables companies of different scales to adopt this cutting-edge technology. In summary, CKD’s laser glass cutting solutions are perfect for any scenario demanding precision, speed, and quality, whether it be in industrial mass production or specialized bespoke glass cutting projects.

Customization:

CKD offers customizable Laser Glass Cutting Machines tailored to meet your specific needs. Our product range includes models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070D-50E, and CKD-SP6070C-50E among others, all designed for precision and efficiency.

Originating from China, our Fiber Laser Cutting Machine comes with ISO and CE certifications, ensuring high quality and reliability. We accept a minimum order quantity of 1 unit, with pricing negotiated to suit your requirements.

Each unit is packaged securely with wooden vacuum packaging to guarantee safe delivery. Delivery time ranges from 25 to 45 days, supported by flexible payment terms including L/C and T/T. Our supply ability stands at 60 sets per month to meet growing demands.

The Laser Glass Cutting Machine features a pulse width of less than 10ps and operates under voltage and power conditions of less than 8KW and AC220V. The customizable work size is 610*700mm x 2, suitable for various glass cutting projects.

With cutting thickness capabilities ranging from 0.03 to 25mm, this Single Table Glass Cutting Machine is ideal for precision cutting tasks. It also boasts energy consumption efficiency with standby power around 500W and average power consumption during cutting at 2.5kW, reflecting its status as an environmental protection glass laser cutting machine with eco-friendly modes.

Support and Services:

Our Laser Glass Cutting Machine is designed to deliver precise and efficient glass cutting solutions for various industrial applications. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and services.

Technical Support:

Our expert technical support team is available to assist you with installation, operation, and troubleshooting of the Laser Glass Cutting Machine. We offer detailed user manuals, setup guides, and maintenance instructions to help you get started quickly and maintain smooth operation.

Maintenance Services:

Regular maintenance is crucial to keep your laser cutting machine operating at peak efficiency. We provide scheduled maintenance services including cleaning, calibration, and parts inspection to prevent downtime and extend the lifespan of your equipment.

Software Updates:

We continuously improve our machine software to enhance functionality and user experience. Software updates are available for download, ensuring your machine operates with the latest features and security improvements.

Training Programs:

To maximize the potential of your Laser Glass Cutting Machine, we offer training sessions for operators and technicians. These programs cover machine operation, safety protocols, and basic troubleshooting techniques.

Warranty and Repair:

Our machines come with a warranty covering manufacturing defects and hardware malfunctions. In case of any issues, our repair services are available to restore your machine promptly using genuine spare parts.

Spare Parts and Accessories:

We supply a range of genuine spare parts and accessories designed specifically for the Laser Glass Cutting Machine to ensure compatibility and maintain performance standards.

Customer Satisfaction:

We are committed to providing excellent customer service and support. Our goal is to ensure that your Laser Glass Cutting Machine meets your operational needs effectively and reliably.
