Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass

Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass

  • Highlight

    Picosecond Laser Glass Cutting Machine

    ,

    CKD Laser Cutting Machine 50W

    ,

    Watch Glass Laser Cutting Machine

  • Product Name
    Laser Glass Cutting Machine
  • Cutting Accuracy
    ±0.01mm
  • Cutting Area
    400mm*500mm
  • Cutting Speed
    400-500mm/s
  • Cutting Thickness
    0.1-19mm
  • Laser Power
    50W
  • Laser Wavelength
    10.6um
  • Machine Size
    1700mm*1700mm*1960mm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO
  • Model Number
    CC-GS002
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Plywood Box
  • Delivery Time
    10-20 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Sets Per Month

Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass

High-Performance Infrared Picosecond

Laser Glass Cutting Machine For Watch Glass



product brief introduction

Adopted Picosecond IR Ultra-fast Lasers are robust and affordable, it produces high energy pulses with durations below 10 ps.

The laser is based on a hybrid optical amplier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass ampliers. Compact and water-cooled, this laser is low maintenance and never needs realignment. With burst mode optional, it could be suitable for variety applications with low cost!



Key attributes

Power

20W/30W/40W/50W/70W

Machine Size

1700mm*1700mm*1960mm

Weight

2500kg

Cutting Head

Glass Special Cutting Head

Control System

HTI

Cooling Methid

Water Cooling

Configuration

3-axis

Mode of Operation

Pulsed

Feature

VISION SYSTEM

Graphic Format Supported

AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Impulse frequency

1-100khz

Core Components

laser axis

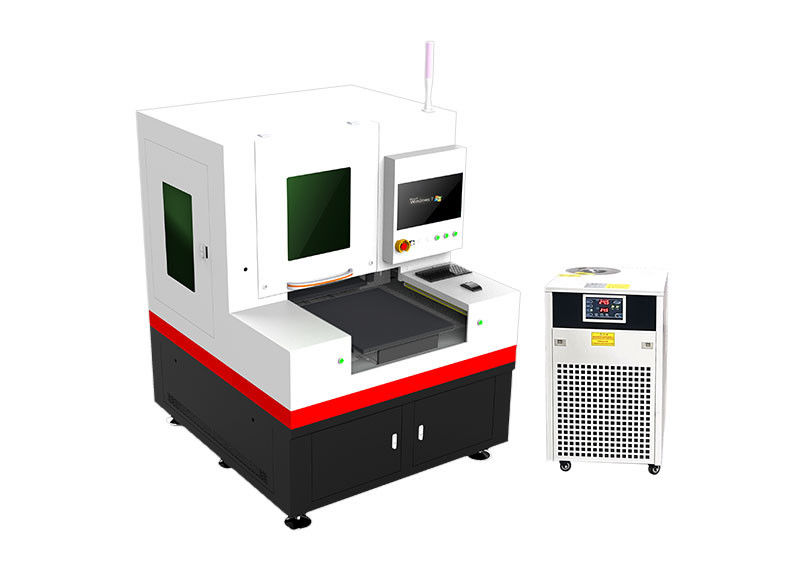

Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass 0Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass 1



Advantages

Irregular-shape High-speed cutting High cutting quality , no taper ,no burrs , small chipping
Low-cost,High-yield rate , Low consumablesand energy -savingNo pollution , No Powder and no wastewate

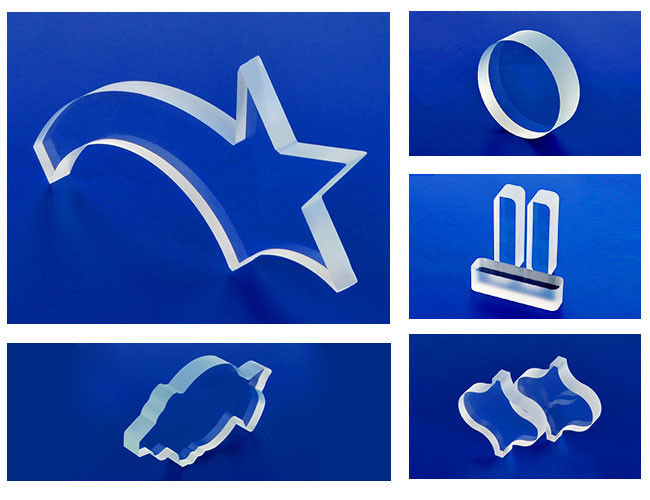

Materials

Ultra clear class,plain white glass,
high borosilicate glass, quartz glass etc;
Phone glass cover, car glass , camera glass cover etc;
LCD screen,K9 glass, filter cutting, mirror cutting etc

Infrared Picosecond Laser Glass Cutting Machine 50W For Watch Glass 2



If you have any questions, Please no hesitate to contact us. We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
