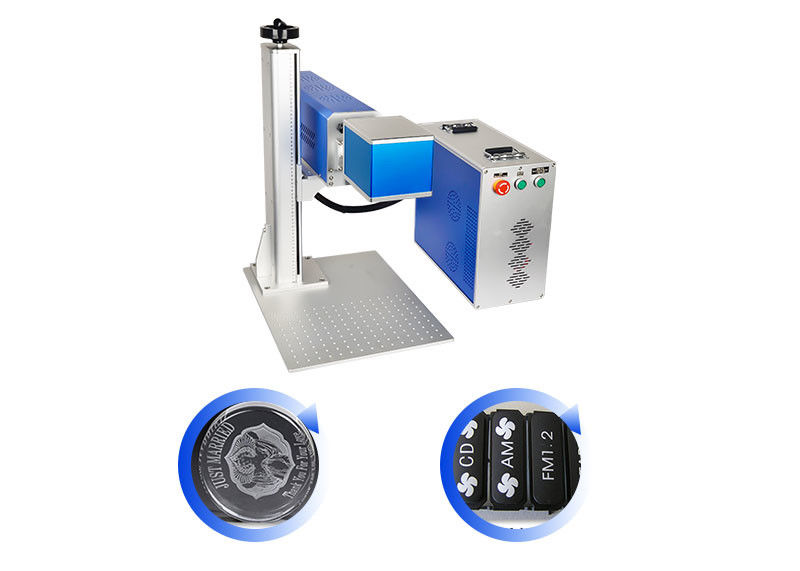

B2B Buyers Choice CO2 Laser Marker Power 100W For EVA Handicraft And ABS Marikin
PRODUCT PARAMETER
| Laser Type | CO2 Laser |
| Laser Power | 100W |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | AI / PLT / DXF / BMP / Dst / Dwg / LAS / DXP |
| Working Accuracy | 0.1mm |
| Weight (KG) | 57 KG |
| Control Software | EZCAD |
| Laser source | IPG |
| Power supply | 110V / 220V 50Hz / 60Hz 2kVA |
| Working area | 300mm*300mm |
| Software | EZCAD2 |
| Marking material | Wood / Handicraft / Package / ABS / EVA |
APPLICATION INDUSTRY
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, etc
PRODUCT DESCREPTION
Unlike traditional CO2 marking machines that have backlash due to acceleration / decoration of the gantry, the galvo CO2 laser marking machines runs at a steady speed without any of the backlash. About 7 times higher speed than ganty CO2 laser engraving machine.
Widely used in many nonmetal matrials, such as denim jeans fabric, bamboo, boulder, horns, leather, wood, organic plastic, acrylic pmma, paper, film, wood, acrylic, ABS, PP etc.
Galvo CO2 laser engraving marking machine features
1.Free maintenance, no consumables, only need electricity.
2.EZCAD2 or EZCAD3 control software, support working with lightburn software too.
3.Compatible with any windows system computer and laptop.
4.Laser power 30w 50w 100w for option
5.Metal RF laser tube with various brands: Syherent, Coherent, Davi.
6.High speed galvanometer head: 5x beam, 6x beam, 8x beam 20mm spot diameter galvo head.
7.Field Lens: 70mm*70mm, 110mm*110mm, 140mm*140mm, 170mm*170mm, 300mm*300mm
8.Extral Parts: support working with Rotary, rotating disk table, electric X, XY, XYY table.
MACHINE STRUCTURE
Fiber laser source
high quality laser beam and long lifespan 100,000 hours
Digital Galvanometer Scanning Head
Fast speed:<0.7ms
scanning and high accuracy
Focus Mirror Lens
Fast speed, high conversion rate
Field lens: 70mm*70mm - 300mm*300mm
BJJCZ Control System
EZ-CAD software program-easy operation
shield-utillzing part of complex functions, ensuring higher stability.
Red light Pointer
Adpot double red light pointer for high precision position
Stand Column
50cm height; 68cm; 80cm;
Standard Manual, the electric design optional
Aluminium Working Table
Thickness 10mm
stable and protect inside parts
It can be used with other workbenches and devices
WHAT CAN THE MACHINE DO
PACKAGE AND SHIPMENT
1.We have three layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-worthy packing or Sea packing which with international standard.
SERVICE
1.one year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
2. 24 hours on line service each day, free technical support.
3.Machine has been adjusted before delivery.
4.For free sample testing, please send us your file, we will do marking here and make video to show you the effect, or send sample to you for checking quality.
