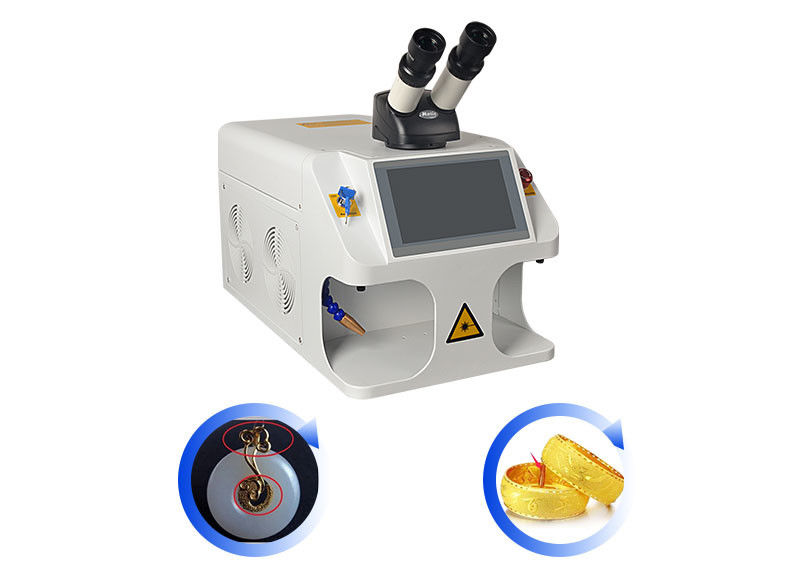

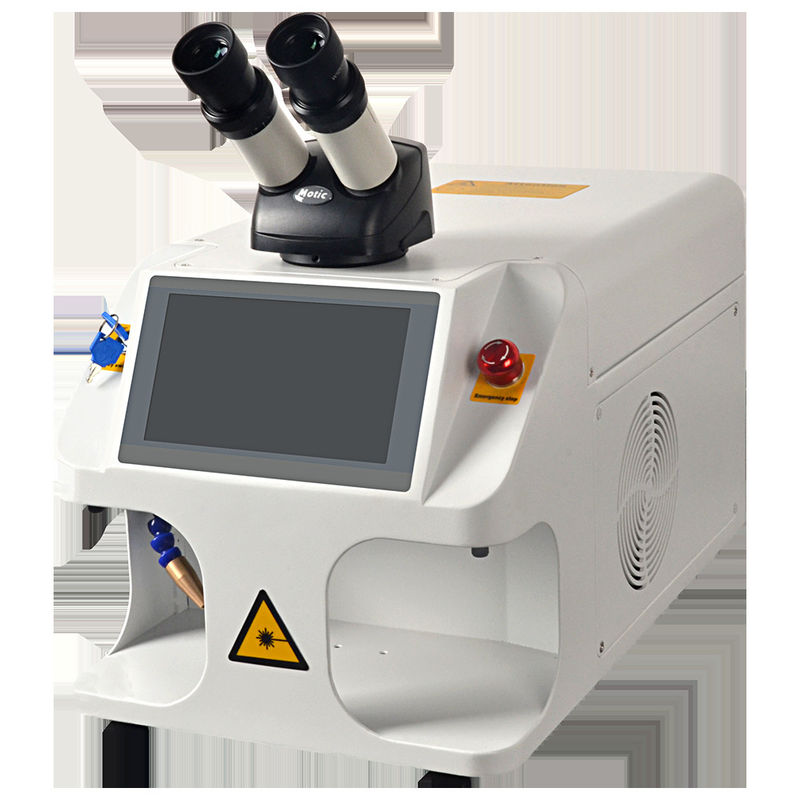

Precise Jewelry Laser Welding Machine 8-CCD Monitor For Jewelry Repair

Precise Jewelry Laser Welding Machine 8-CCD Monitor For Jewelry Repair

  • Highlight

    Precise Jewelry Laser Welding Machine

    ,

    CKD Jewelry Laser Welding Machine

    ,

    Precise Laser Jewelry Repair Machine

  • Product Name
    Jewelry Laser Welding Machine
  • Laser Pulse Frequency
    0-25Hz
  • Dimension
    520*300*270 Mm
  • Laser Wavelength
    1064nm
  • Laser Pulse Width
    0.1-10ms
  • Max Output Power
    60 W
  • Power Supply
    220V/50Hz
  • Cooling System
    Water Cooling
  • Place of Origin
    China
  • Brand Name
    CKD
  • Model Number
    CW-J1
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Wooden cases for export
  • Delivery Time
    5-15 days after receive the deposit.
  • Supply Ability
    100 set / Month

Precise Jewelry Laser Welding Machine 8-CCD Monitor For Jewelry Repair

     Precise Jewelry Laser welding Machine 8-CCD Monitor for Jewelry Repair

2

Product Description:


Jewelry Laser Welding Machine

The Jewelry Laser Welding Machine is a perfect tool for jewelry manufacturing processes. It is capable of producing precise and reliable welds and is designed to meet the highest standards in jewelry production. It has a maximum output power of 60 Watts, and an adjustable laser power of 200 Watts. The power supply is 220V/50Hz, which ensures a stable and reliable operation. The Jewelry Laser Welding Machine is compact in size with a dimension of 520*300*270 mm. It is suitable for any jewelry production line, with a low power consumption and low maintenance costs. This Jewelry Laser Welding Machine is a reliable and efficient tool for jewelry manufacturing and repairs, making it a great choice for any jewelry workshop.



Features:

  • Product Name: Jewelry Laser Welding Machine
  • Laser Type: YAG
  • Max Output Power: 60W
  • Welding depth: 0.1-3mm
  • Weight: 28.6kg


Technical Parameters:

Product Name Technical Specifications
Jewelry Laser Welding Machine Max Output Power: 60 W
Laser Pulse Frequency: 0-25Hz
Laser Spot Diameter:     0.1-3mm
Laser Pulse Width: 0.1-10ms
Dimension:  520*300*270 mm
Laser Wavelength:  1064nm
Welding depth: 0.1-3.0 mm
Laser Power: 200W
Weight:  28.6kg


3

Applications:

Jewelry Laser Welding Machine – CKD CW-J1 from China

Jewelry Laser Welding Machine CKD CW-J1 is a powerful tool for jewelry makers, goldsmiths and jewelers. It is designed for precise welding of small components of jewelry with minimal heat input and maximum efficiency. This laser welding machine is made in China with power supply of 220V/50Hz and equipped with YAG laser with wavelength of 1064nm. It can be adjusted to have laser pulse frequency of 0-25Hz and laser pulse width of 0-10ms.



The Jewelry Laser Welding Machine CKD CW-J1 is an ideal welding machine for small components of jewelry. It offers perfect welding results with minimum heat input and maximum efficiency. The machine has a simple and easy to use control panel, which makes it easy to adjust the settings to get the desired result. It is perfect for precision welding of jewelry.



 Precise Jewelry Laser Welding Machine 8-CCD Monitor For Jewelry Repair 2

Support and Services:

We provide technical support and services for Jewelry Laser Welding Machine. Our support and services include:

  • 24/7 technical assistance via phone, email or live chat
  • On-site maintenance and repair services
  • Regular software updates
  • Troubleshooting and diagnostic services
  • Remote support
  • Parts replacement services
  • Full warranty coverage


Packing and Shipping:

The Jewelry Laser welding Machine will be securely packaged in a cardboard box. The box will contain bubble wrap and other protective material to ensure the contents of the box are not damaged during shipping.

The package will be shipped via a reliable shipping provider. The item will be tracked and insured. The delivery time will depend on the chosen shipping method and the recipient's location.



Precise Jewelry Laser Welding Machine 8-CCD Monitor For Jewelry Repair 3

FAQ:

Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from bao'an International airport to our factory.



Q2: How many years do you do this business?

A2: From 2008.



Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.



Q4: What is payment terms?

A4: 100% T/T advanced.



Q5: About shiping?

A5: 3-10 days after payment for standard products, please consult our sales for customized products.



Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.



Q7: Do you have patents or core technology?

A7: Yes, for details, please contact our sales.



Q8: Where have you sold your products?

A8: Europe, Americas, Africa, and Asia.
