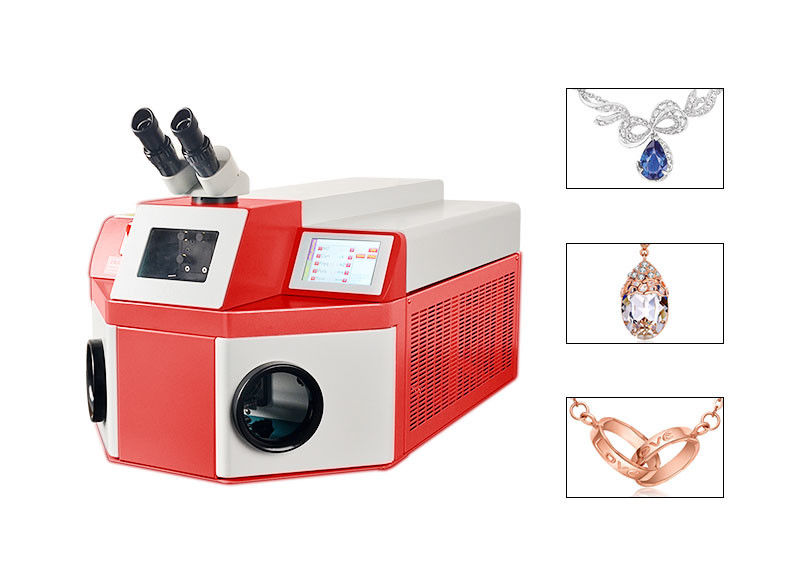

Desktop Gold Silver Laser Soldering Machine , YAG Laser Welding Machine 150W

    Desktop Jewelry Laser Welding Machine for Gold and Siliver Jewelry Restoration

Product Description:

This Jewelry Laser Welding Machine is specifically designed for jewelry welding and repair applications. It is equipped with a laser spot diameter of 0.1-3mm, a laser pulse frequency of 0-25Hz, a maximum output power of 60 W, a water cooling system, and a computer control system. It can perform precision and complex welding on jewelry with high accuracy and reliability. The Jewelry Laser Welding Machine is widely used in jewelry welding and repair, and is the perfect choice for jewelry makers and artisans.

Features:

• Product Name: Jewelry Laser Welding Machine
• Laser Power: 150W
• Control System: Computer Control
• Laser Spot Diameter: 0.1-3mm
• Cooling System: Water Cooling
• Laser Pulse Frequency: 0-50Hz

SHOW DETAILS

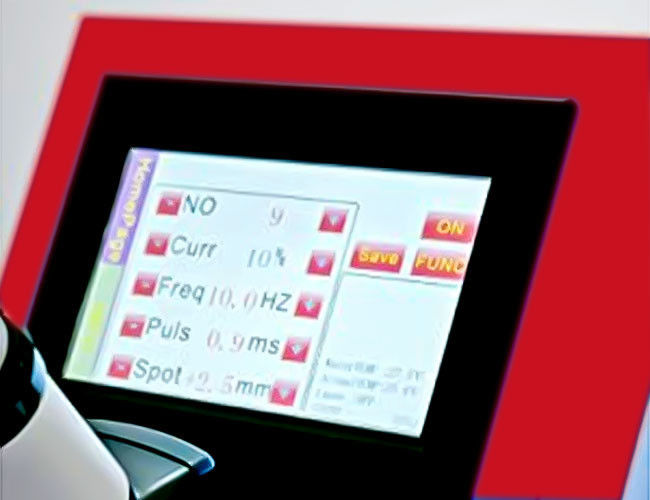

Spot size adjustment User-friendly adjustment settings, ranging from-3.0mm to 3mm. Spot size at minus direction,it is more suitable for leveling post treatment welding and thin gold and silver sheet laser repairing welding. While at plus direction,more suitable for deep spot laser welding	Customized Laser Source The welding system built-in phase formationit can use with CCD togetherso the machine does not connect with CCD separetly
Patent beam path Patent beam path and whole machine Perfect structural design neither on performance or in size	Built-in water chiller The machine is equiped with professional water chiller so that the machine can work more time and more stable with big power

Technical Parameters:

Applications:

The CKD CW-J2 Jewelry Laser Welding Machine is a high-precision laser processing device for jewelry repair and modification. It is designed and manufactured in China and requires a minimum order quantity of 1 set. It is equipped with a laser pulse width range of 0.1-10ms and a laser spot diameter range of 0.1-3mm, both of which are particularly suitable for jewelry repair and modification. The single pulse energy range of the laser is 40J/100J, and the type of laser is YAG. The machine is also equipped with a water cooling system for better thermal management.

This Jewelry Laser Welding Machine from CKD is an ideal device for repairing and modifying jewelry. It is highly accurate and provides precise control for a wide range of applications. Its high-power laser and adjustable parameters make it perfect for welding jewelry with delicate details, making it a great tool for jewelry makers and professionals.

COMPANY PROFILE>>



Established in 2010,Shenzhen CKD Precision Mechanical & Electrical Co., Ltd is a laser equipment manufacturer and automation New Intelligent Manufacturing solution provider, specializing in the R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation,CKD has obtained more than 40 patents, passed CE certification, ISO9001 quality management system certification,and intellectual property management system certification, and gained National H-Tech enterprise. Thanks to our strong R&D team and core software technology, our product technology has achieved innovation and breakthroughs in fields such as ultra-fast laser cutting, laser drilling, TFT-LCD screen laser repair, laser welding, and laser marking. Especially in the automation new intelligent manufacturing of glass brittle material processing and TFT-LCD repair industry, the company provides customers with low-cost, high-quality, and efficient solutions, making contributions to customer value,innovation, and development.





Laser equipment workshop	CNC processing center	Screen repair workshop
Sample room	Team	Equipment

The Jewelry Laser welding Machine is shipped in a secure, well-sealed cardboard box. The box contains the machine, any additional parts, a manual for setup and operation, a power cable, and a warranty card.

The box is then placed into a shrink-wrapped protective layer and secured with bubble wrap to ensure that it is not damaged during transit. It is then labeled with the shipping address and ready for pick-up.

FAQ:

Q: What is the Brand Name of this Jewelry Laser welding Machine?

A: The Brand Name is CKD.



Q: What is the Model Number of this Jewelry Laser welding Machine?

A: The Model Number is CW-J2.



Q: Where is the Jewelry Laser welding Machine made?

A: It is made in China.



Q: What is the Minimum Order Quantity for this Jewelry Laser welding Machine?

A: The Minimum Order Quantity is 1 set.



Q: What kind of materials can this Jewelry Laser welding Machine weld?

A: This Jewelry Laser welding Machine is suitable for welding all kinds of metal materials, such as gold, silver, copper, etc.
