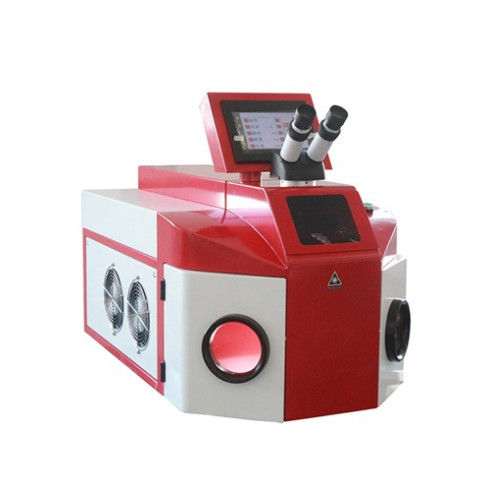

Table Top Laser Welder Water Cooling YAG Laser Jewellery Welding Machine

Table Top Laser Welder Water Cooling YAG Laser Jewellery Welding Machine

  • Highlight

    Jewellery Table Top Laser Welder

    ,

    Table Top Laser Welder Water Cooling

    ,

    YAG Laser Jewellery Welding Machine

  • Max Output Power
    60 W
  • Weight
    103 Kg
  • Laser Type
    YAG
  • Laser Pulse Frequency
    0-25Hz
  • Product Name
    Jewelry Laser Welding Machine
  • Cooling System
    Water Cooling
  • Laser Power
    100W/200W
  • Laser Wavelength
    1064nm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Model Number
    CW-J2
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Wooden cases for export
  • Supply Ability
    100 set / Month

Table Top Laser Welder Water Cooling YAG Laser Jewellery Welding Machine

                Water Cooling System Tabletop Jewelry Laser Welding Machine



Product Description:

The Jewelry Laser Welding Machine offers precise and efficient welding of jewelry components with computer control. It can produce a laser spot diameter of 0.1-3mm and a single pulse energy of up to 40J/100J. The machine is also equipped with adjustable laser pulse width of 0.1-10ms, allowing for flexibility in welding. Jewelry Laser Welding Machine is ideal for a wide range of jewelry fabrication, repairs, and restoration. The machine is designed for fast and precise welding, and it is easy to operate. It is suitable for all kinds of jewelry materials, including gold, silver, platinum and other non-ferrous metals.



This Jewelry Laser Welding Machine offers a high degree of accuracy and control, and it is capable of welding with thin wires, small parts, and intricate designs. The machine is highly reliable and requires minimal maintenance. It is also user-friendly, making it suitable for both entry-level and experienced welders. With its adjustable parameters, the Jewelry Laser Welding Machine can be customized to meet the specific needs of each jewelry-making project.



The Jewelry Laser Welding Machine is an essential tool for any jewelry-making workshop. It is the perfect choice for fast, precise, and reliable welding of jewelry components. The machine is easy to operate and requires minimal maintenance, making it a great option for both jewelry professionals and hobbyists.



2 (2)

Features:

  • Product Name: Jewelry Laser Welding Machine
  • Max Single Pulse Energy: 40J/100J
  • Weight: 28.6kg
  • Laser Pulse Frequency: 0-25Hz
  • Laser Pulse Width: 0.1-10ms
  • Laser Type: YAG





SHOW DETAILS

26-1 3

Spot size adjustment

User-friendly adjustment settings,
ranging from-3.0mm to 3mm.
Spot size at minus direction,it is more
suitable for leveling post treatment
welding and thin gold and silver sheet
laser repairing welding.
While at plus direction,more suitable
for deep spot laser welding



Customized Laser Source

The welding system built-in phase
formationit can use with CCD
togetherso the machine does not
connect with CCD separetly

4 2

Patent beam path

Patent beam path and whole machine

Perfect structural design

neither on performance or in size

Built-in water chiller

The machine is equiped with
professional water chiller so
that the machine can work more
time and more stable with big power







Technical Parameters:

Parameters Value
Laser Type YAG
Max Single Pulse Energy 40J/100J
Laser Spot Diameter 0.1-3mm
Dimension 520*300*270 mm
Max Output Power 60 W
Control System Computer Control
Laser Pulse Frequency 0-25Hz
Weight 103kg
Power Supply 220V/50Hz
Welding Depth 0.1-3mm


Applications:

The CKD CW-J2 Jewelry Laser Welding Machine is the perfect tool for jewelers and jewelry makers to quickly and effectively weld jewelry. It utilizes a YAG laser with a wavelength of 1064nm and a laser power of 100W/200W, with a pulse width of 0.1-10ms. This machine is designed with a water cooling system, making it both powerful and efficient. With its minimum order quantity of only 1 set, it is an affordable and reliable solution for all jewelry welding needs.



The CKD CW-J2 Jewelry Laser Welding Machine is ideal for a variety of jewelry welding applications, such as the repair of broken jewelry, the joining of two pieces of jewelry, and the creation of intricate designs. It is also perfect for creating custom pieces of jewelry that require precise, intricate details. The laser welding process is fast, clean, and accurate, making it a great choice for any jewelry welding job.

The CKD CW-J2 Jewelry Laser Welding Machine can be used in a variety of jewelry-making settings, such as jewelry stores, workshops, and production lines. It is also perfect for home use, as it is small and easy to operate. With its powerful laser and precise control, it can be used to create stunning jewelry pieces.



The CKD CW-J2 Jewelry Laser Welding Machine is a great choice for any jewelry maker or jewelry store. It is reliable, efficient, and cost-effective, making it an ideal choice for any jewelry welding project.



Packing and Shipping:

Packaging and Shipping for Jewelry Laser Welding Machine

The Jewelry Laser Welding Machine is carefully packed and shipped in a sturdy cardboard box with foam inserts to protect it during transit. It is shipped using a reliable international courier service, providing a tracking number for the customers to track the status of their shipment. The package is also insured to cover any damage that may occur during transit.

Table Top Laser Welder Water Cooling YAG Laser Jewellery Welding Machine 5

FAQ:

Q1: What is the Brand Name for Jewelry Laser welding Machine?

A1: The Brand Name for Jewelry Laser welding Machine is CKD.

Q2: What is the Model Number for Jewelry Laser welding Machine?

A2: The Model Number for Jewelry Laser welding Machine is CW-J2.

Q3: Where is Jewelry Laser welding Machine produced?

A3: Jewelry Laser welding Machine is produced in China.

Q4: What is the Minimum Order Quantity for Jewelry Laser welding Machine?

A4: The Minimum Order Quantity for Jewelry Laser welding Machine is 1 set.

Q5: What is the power of Jewelry Laser welding Machine?

A5: The power of Jewelry Laser welding Machine is 2KW.
