Vertical Horizontal Glass Drilling Machine

Vertical Horizontal Glass Drilling Machine

  • High Light

    Vertical Glass Drilling Machine


    Horizontal Glass Drilling Machine

  • Name
    Vertical Horizontal Glass Drilling Machine
  • Drilling Thickness
  • Positioning Accuracy
  • Chipping
  • Work Size
  • Laser Power
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    30 Sets Per Month

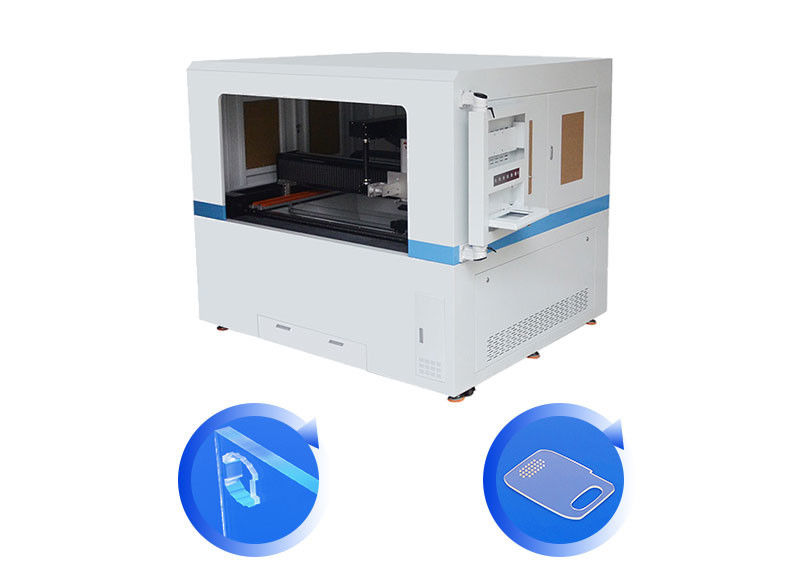

Vertical Horizontal Glass Drilling Machine

Vertical Horizontal Glass Drilling Machine

For Glass Hole Drill Price From China

Product Description:

Infrared subnanosecond laser has been widely used in the field of microhole drilling of glass materials such as microelectronics, biomedicine and optical devices.


1. It enables fine processing of glass materials, including micro-hole drilling.


2. The heat affected area is small, and the instantaneous high energy laser pulse can quickly heat and evaporate the material, and can avoid the formation of the heat affected area.


3. Can quickly complete the drilling task, improve production efficiency, save time and cost.


4. High processing flexibility can be drilled in different shapes and sizes to achieve complex hole design and meet different processing needs.


Laser drilling is the use of laser beam thermal effect on the material processing , through the laser beam on the surface of the material to produce a high temperature area , so that the material local melting or vaporization , the formation of holes . Laser drilling is suitable for hole processing of various materials , including metals , plastics , ceramics , glass , etc ., can achieve high precision , high efficiency, non-contact and non-mechanical damage advantages , widely used in electronics , automotive , aerospace , medical equipment and other fields .

1 . Higher production efficiency

2 . Reduce processing flow

3 . Higher edge strength

4 . No consumables , no pollution , environmental protection and energy saving

5 . High precision , can cut abnormity

Technical Parameters:


Technical parameters
Laser type Fiber Mopa
Laser power 120w / 180w
laser wavelength 532nm
laser pulse width 7ns@100KHz
Laser pulse frequency 50-500KHz
Work Size 800*800mm / 600*900mm
Drilling Thickness <20mm
Drilling Φ <Φ100mm
Positioning Accuracy ±0.02mm
Chipping ≤200μm
Positional accuracy ±3μm / ±5μm
Power AC220V±5%,L+N+E,<3KW
Dimension 1560mm × 1750mm × 1750mm / 1900mm ×1800mm × 1900mm
Weight 1500kg



Independently developed cutting system , easy to learn and use , support a variety of cutting data formats dxf , dwg

Glass and ceramic products have been broadly used in many industries , such as household appliances , sanitary ware , decoration , optics , technology, and photovoltaic .

Besides , it has some practical application in construction , which is drilling of glass and ceramic products .

Glassware hole processing , such as nozzle hole , handle hole , etc

Hole processing and decorative processing of glass crafts, such as glass pendants , glass ornaments , etc

Hole processing and contour processing of laser lens , optical filter , etc


Customized Laser Drilling Machine - CKD CC-G1

We offer laser drilling machine with brand name CKD and model number CC-G1. It is certified by ISO/CE/FDI. The minimum order quantity is 1 set and the price is negotiable. The packaging is wooden box and the delivery time is 15-45 days. The payment terms are L/C and T/T. We supply 50 sets per month. The repeatability is ±0.01mm. The power supply is 220V/50Hz. The dimension is 1560mm*1750mm*1750mm. The pulse energy is 2mJ and the repetition frequency is 20kHz.

Our laser drilling machine is perfect for glass drilling machine portable, laser micro drilling machine and glass drilling machine portable price. We have been manufacturing this product for many years and are confident that you will be satisfied with the quality. If you have any questions, please contact us. We look forward to working with you.


Vertical Horizontal Glass Drilling Machine 0

Support and Services:

Laser Drilling Machine Technical Support and Service

Pre-Sales Service :

Demand analysis: Communicate with customers to understand their specific cutting needs, including material type, thickness, cutting accuracy requirements, output, etc., in order to customize the cutting machine to meet customer needs.


Technical consulting: To provide customers with relevant technical consulting services, including the advantages and disadvantages of different cutting technologies, scope of application, cost and other aspects of information, to help customers choose the most suitable cutting technology for their needs.


Technical scheme design: According to customer needs and actual situation, provide customers with customized cutting machine technical scheme design, including equipment configuration, process flow, production line layout, etc.


Prototype demonstration: To provide customers with customized cutting machine prototype demonstration, so that customers intuitively understand the performance and working effect of the equipment, so that customers can make a more accurate choice.


Pre-sales training: Provide customers with relevant cutting machine operation and maintenance training to help customers better understand the operation method and maintenance points of the equipment.


After-sales Services :
1 . 3 year guarantee for fiber laser cutting machine .
2 . Full technical support by e-mail, call and video .
3 . Lifelong maintenance and spare parts supply .
4 . Free design of fixtures as customers required .
5 . Free training installation and operation for the staffs .

Packing and Shipping:

Packaging and Shipping

The Laser Drilling Machine is packaged to ensure safe delivery to your door. All components of the machine are securely packed in a durable cardboard box. The box is filled with foam padding to ensure that it will not move during shipping. The box is also labeled with the name of the product and a barcode.

The Laser Drilling Machine is shipped via a major courier company. The delivery time is dependant on the destination and the package size. Delivery is usually within 3-5 business days.

If you have any questions about the packaging and shipping of the Laser Drilling Machine, please contact us.
