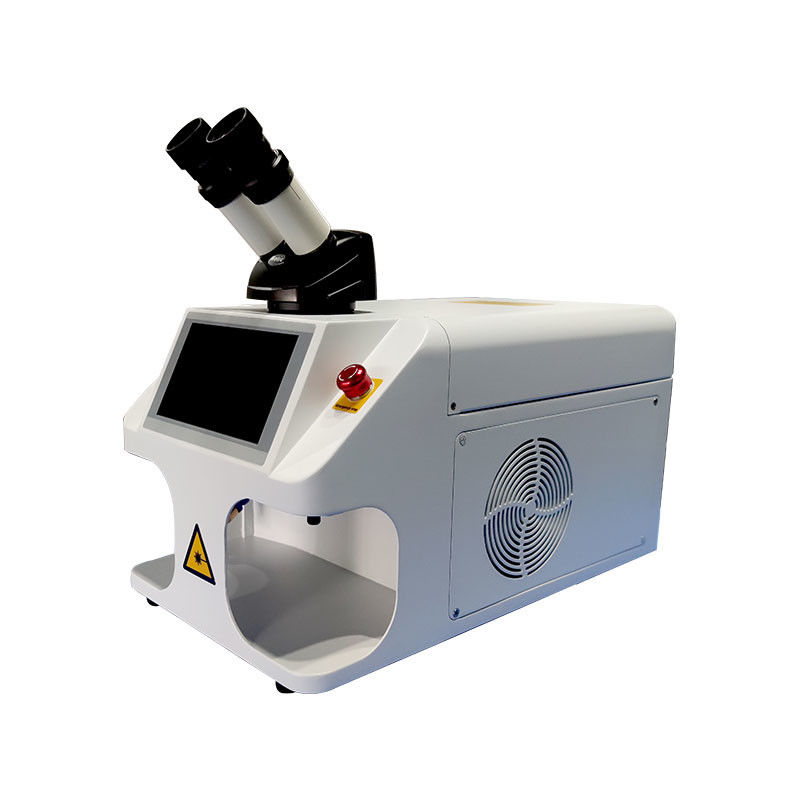

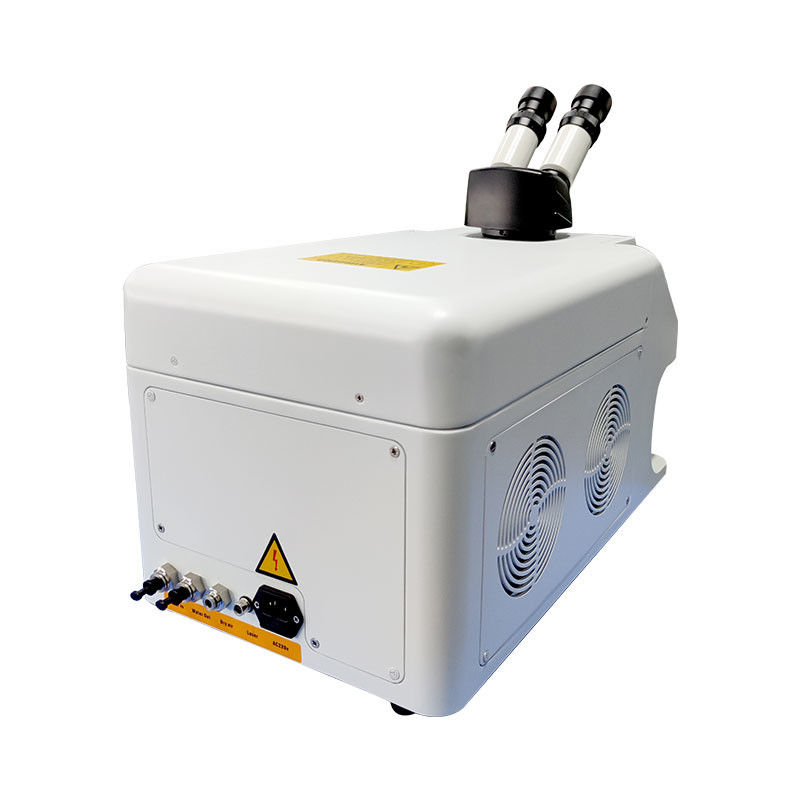

Efficient Jewelry Laser Welding Machine Welding Depth 0.1-3mm 1064nm Laser Wavelength

Efficient Jewelry Laser Welding Machine Welding Depth 0.1-3mm 1064nm Laser Wavelength

  • Name
    Laser Welding Machine
  • Laser Pulse Width
  • Laser Power
  • Laser Wavelength
  • Max Output Power
    60 W
  • Power Supply
  • Welding Depth
  • Laser Spot Diameter
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-30 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 Sets Per Month

Efficient Jewelry Laser Welding Machine Welding Depth 0.1-3mm 1064nm Laser Wavelength

Efficient Jewelry Laser Welding Machine Welding

Depth 0.1-3mm 1064nm Laser Wavelength

Product Description:

Application Industries:

This equipment is capable of welding gold, silver, platinum, titanium, and their alloys, electric nickel strips, and other materials. It can be used for various applications such as jewelry and denture filling trachoma, watch hairsprings, integrated circuit leadwires, and heat-sensitive parts precision welding. Therefore, it is suitable for use in optoelectronic devices, electronics, communications, machinery, automobiles, military, gold jewelry, and other industries.

Machine Size & Weight:

This machine is 510x300x278mm in size (or 395mm when in use). Its net weight is 30.5 kg, while its packed weight is approximately 45 kg.


This welder was developed specifically for laser welding of jewelry pieces, and is used for piercing and spot welding of gold and silver jewelry. It is able to weld 14k gold, making it a perfect choice for both restoring and producing jewelry, watches, and eyewear.

This welder features spot welding, butt welding, seam welding and sealing welding capabilities, with high position accuracy and potential for automation. Additionally, it has a large working space allowing for the placement of various tools and easy cleaning of welding debris.

The technology used is YAG, with xenon brand and crystal being the core part of the entire laser welding machine. This jewellery laser welding machine also includes a ring-shaped, shadow-free, adjustable-brightness LED light making the welding area clearer and enabling the subtle welding that is often needed.



Laser Type
1064nm YAG Laser
Nominal Laser Power
Beam Diameter
Pulse Width
1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy
Host Power Consumption
Cooling System
Build in Water Cooling
Aiming and Positioning
Microscope + CCD Camera System
Operating Mode
Touch Control
Pump Source
Single lamp
Display Touch Screen
10X high quality colorful CCD
Electrical Connection Values
AC 110V/220V ± 5%, 50HZ / 60HZ
Machine Dimension
RL-Y60: L51CM×W29.5CM×H42CM
Wooden Package Dimension
RL-Y60: L63CM*W52CM*H54CM
Machine Net Weight
Machine Gross Weight
Operating Environmental Temp
< 90% non-condensing
Welding and repairing all kinds of j

Technical Parameters:

Jewelry Laser Welding Machine

LED LIGHT: The jewelry laser welding machine is equipped with 2 high-light camera auxiliary lights, a white CCD auxiliary light, and a blue mi-croscope auxiliary light. These auxiliary lights, with energy-saving high-light bulbs, have clear imaging and good heat dissipation effect, making the welding area clearer and ensuring safety for a long time.

LASER POWER:The laser power supply of this jewelry laser welding machine meets almost all the practical application needs, and it's the ideal configuration of Nd:YAG pulse laser. It has an intelligent control of Xenon lamp operating current, lasing frequency and pulse width.

HD MICROSCOPE:Motic microscope observation operation and small parts are at your fingertips. LCD interface with current, pulse width, frequency display functions and dial to adjust the work table make it more convenient for operation.

LCD SCREEM:The jewelry laser welding machine is equipped with high-definition CCD and red double-positioning systems to ensure higher positioning accuracy. It also has an integrated independent system, LCD display control box, and fast working atmosphere, operative posture, faster, better, and more comfortable.


Century metal team specializes in the restoration and production of jewellery, watches, eyewear. Our 14K gold can be welded that is suitable for small jewelry stores, and the daily use time is less than one hour.

We also support customization; you can make your own logo or design the appearance of the machine. The whole machine is guaranteed for one year, and online technical supports are available post-sales.

No minimum order quantity (MOQ) request, and the Wholesale price is provided. If you are interested in our products, please do not hesitate to contact us for a wholesale price quotation.

Efficient Jewelry Laser Welding Machine Welding Depth 0.1-3mm 1064nm Laser Wavelength 0


Jewelry Laser Welding Machine
  • Brand Name: CKD
  • Model Number: CW-J4
  • Place of Origin: China
  • Minimum Order Quantity: 1 set
  • Max Output Power: 60 W
  • Cooling System: Water Cooling
  • Laser Power: 100W/200W
  • Welding depth: 0.1-3mm
  • Laser Type: YAG

CKD Jewelry Laser Welding Machine is designed and manufactured for jewelry welding. It is featured by water cooling system and laser power of 100W/200W, which can meet different welding needs. The welding depth can reach 0.1-3mm, which ensures better welding effect.

Support and Services:

Jewelry Laser Welding Machine offers a wide range of technical support and services. Our experienced technicians are available to provide on-site and remote support for installation, maintenance and troubleshooting. We also offer training services for operators and maintenance personnel to ensure that all personnel are familiar with the safe and effective operation of the machine. We also provide spare parts and consumables at competitive prices. All our services are backed by a comprehensive warranty and our customer service team is always available to answer any questions or concerns you may have.

Packing and Shipping:

Packaging and Shipping

The Jewelry Laser Welding Machine is carefully packaged in durable, waterproof, and shock-resistant boxes to ensure that it arrives to you in perfect condition. The boxes are filled with foam padding for extra protection during transit. We ship worldwide using the most reliable delivery services.


Q1: What is the Brand Name, Model Number, Place of Origin of this Jewelry Laser Welding Machine?
A1: The Brand Name is CKD, Model Number is CW-J4, and Place of Origin is China.
Q2: What is the Minimum Order Quantity?
A2: The Minimum Order Quantity is 1 set.
Q3: Does this Jewelry Laser Welding Machine support customized design?
A3: Yes, this Jewelry Laser Welding Machine support customized design.
Q4: What is the delivery time for Jewelry Laser Welding Machine?
A4: The delivery time for Jewelry Laser Welding Machine is about 15-20 days.
Q5: What is the payment term for Jewelry Laser Welding Machine?
A5: The payment term for Jewelry Laser Welding Machine is T/T, L/C, Western Union, MoneyGram, etc.
