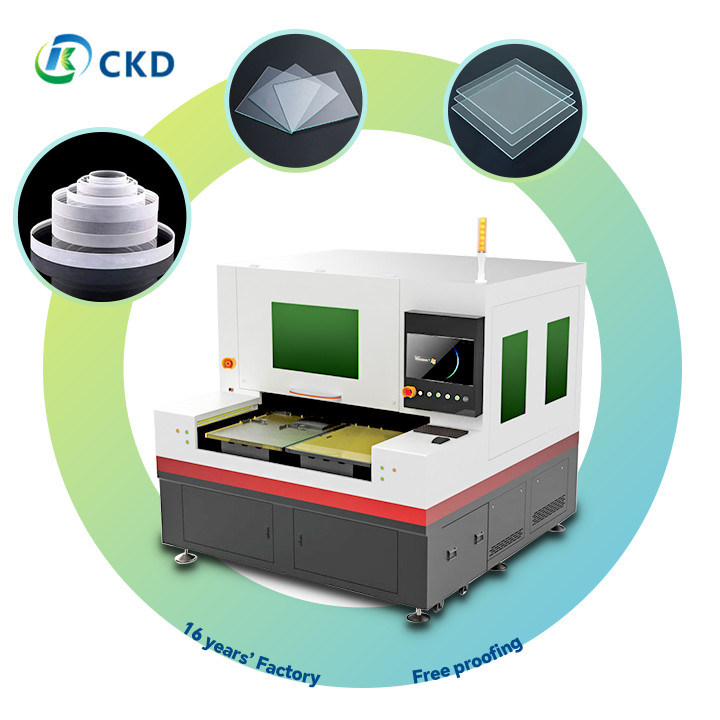

Precision 3500kg Glass Cutting Machine with Splitting Laser Source and TPI Linear Guide

Product Description:

• High-Power Laser Source: Equipped with a cutting-edge, high-frequency pulsed laser for superior cutting performance.
• Versatile Material Handling: Capable of processing a wide range of materials including metals and non-metals.
• Multifunctional Cutting Capabilities:
  • Supports continuous sheet cutting
  • Precision single-point cutting
  • Efficient strip cutting
• Advanced X/Y Axis Control: Utilizes high-precision DC servo motors and ultra-fine 0.1μm optical encoders for unparalleled accuracy.
• Intelligent Motion Control: Features automatic focus-following functionality and dynamic piercing control.
• High-Resolution Imaging: Incorporates a premium CCD camera system for real-time visual monitoring, pattern recognition, and mark point detection.
• Robust Power Supply: Equipped with a German-made, high-stability power source. Taiwanese brand power supply used for optical components.
• Impressive Cutting Range: Capable of processing materials up to 19mm in thickness, catering to a wide array of industrial applications.
• Precision-Engineered Components:
  • Motor base and optical platform constructed with natural granite
  • Designed for superior stability and vibration resistance
  • Ensures maintained accuracy over time

• Ideal for high-precision industrial applications
• User-friendly interface for easy operation
• Reduced material waste due to precise cutting
• Suitable for both small-scale and large-volume production runs
• Low maintenance requirements, ensuring long-term reliability

The Advanced Laser Cutting Machine is an exceptional piece of machinery. It delivers precision and versatility in all cutting applications, with a range of key features that are second to none. For example, the high-power laser source is equipped with a cutting-edge, high-frequency pulsed laser for superior cutting performance. Meanwhile, the machine is capable of processing a wide range of materials, both metals and non-metals, ensuring flexible and efficient handling.

The multifunctional cutting capabilities of the machine are also highly impressive, with continuous sheet cutting, precision single-point cutting and efficient strip cutting all supported. The advanced X/Y Axis Control system is powered by high-precision DC servo motors and ultra-fine 0.1μm optical encoders, delivering unparalleled accuracy. An intelligent motion control system adds to the machine's capabilities, featuring automatic focus-following functionality and dynamic piercing control.

Additional key features of the Advanced Laser Cutting Machine include high-resolution imaging, thanks to a premium CCD camera system that allows for real-time visual monitoring, pattern recognition, and mark point detection. The robust power supply is German-made and high-stability, while Taiwanese brand power supply is used for optical components. The machine's impressive cutting range is suitable for a wide variety of industrial applications, with materials up to 19mm in thickness easily processed.

Precision-engineered components also ensure that the machine delivers reliable performance over time. The motor base and optical platform are constructed with natural granite, designed to deliver unparalleled stability and vibration resistance. Additional benefits of the Advanced Laser Cutting Machine include its user-friendly interface, its suitability for both small- and large-volume production runs, low maintenance requirements, and reduced material waste due to precise cutting.

Features:

1. Precision Cutting
   • Irregular shape high-speed cutting
   • Contour cutting
   • Small hole drilling
   • Hand-held cutting capabilities
2. Superior Processing
   • High-quality edge finishing
   • No taper effects
   • Minimal material loss
   • Burr-free cutting
3. Eco-Friendly Operation
   • No pollution
   • No powder residue
   • No wastewater production

1. High-Speed Processing
   • Rapid cutting of complex shapes and patterns
2. Superior Cut Quality
   • Clean edges with no tapering
   • Minimal to no burrs
   • Extremely small chipping, if any
3. Cost-Effective
   • High yield rate
   • Low consumable usage
   • Energy-efficient operation
4. Environmentally Friendly
   • Clean process with no harmful byproducts

1. Specialized Glass
   • Ultra-clear glass
   • Plain white glass
   • High borosilicate glass
   • Quartz glass
2. Electronic Components
   • Phone glass covers
   • Car glass
   • Camera glass covers
   • LCD screens
3. Optical Materials
   • K9 glass
   • Various optical filters
   • Mirror cutting
4. Precious Materials
   • Sapphire processing for watch faces and electronic components

1. Glass Manufacturing
   • Optical glass
   • Tempered glass
   • Ultra-thin glass
   • Laboratory glassware
   • Medical glass equipment
2. Electronics
   • Mobile phone screens and covers
   • Tablet displays
   • Laptop screens
   • Optical/ITO/Yellow/Purple semiconductor glass
3. Automotive
   • Car windows and windshields
   • Dashboard displays
   • Instrumentation panels
4. Real Estate and Construction
   • Architectural glass
   • Decorative glass panels
   • Bathroom glass fixtures
5. Home Appliances
   • Glass panels for ovens and refrigerators
   • Lighting glass components
6. Communication Media
   • Mobile device screens
   • Watch sapphire covers
   • Camera and CCTV lenses
7. New Energy Sector
   • Solar panel glass
   • Specialized glass for energy-efficient windows
8. Aerospace and Defense
   • High-precision optical components
   • Specialized glass for cockpit displays
9. Medical and Scientific Research
   • Laboratory equipment glass
   • Optical lenses for medical devices
   • Microfluidic chips

This advanced laser cutting system offers a versatile solution for a wide range of industries, providing high-precision, efficient, and eco-friendly processing of various glass and optical materials. Its ability to handle complex shapes and delicate materials makes it an ideal choice for both large-scale manufacturing and specialized, high-value applications.

Technical Parameters:

Below are the technical parameters for the three types of laser cutting machines that we offer. Each machine provides high precision and accuracy, and can be customized based on specific cutting requirements and material properties.

• Laser Type: Ultrashort pulse fiber laser (specific type varies by model)
• Average Power: 50W (options for 10W, 20W, 30W, 60W, 80W available)
• Wavelength: 1064nm, with second harmonic at 532nm
• Pulse Width: <10ps (picoseconds)
• Repetition Rate: 1Hz - 1000kHz (adjustable)
• Beam Quality: M² < 1.2 (near-diffraction-limited beam)

• Positioning Accuracy: ±2μm over entire work area
• Repeatability: ±1.5μm, with ±16 arc-seconds angular accuracy
• Maximum Cutting Speed: Up to 1000mm/s
• Cutting Thickness:
  • Ultra-thin glass: ≤1mm
  • Standard glass: ≤19mm (varies based on material properties and cutting requirements)
• Minimum Line Width: ≤30μm (material dependent)
• Minimum Hole Diameter: ≤20μm

• Dual-platform Models: 600x700mm, 600x900mm, or 400x500mm per platform
• Single-platform Model: 400x500mm, 600x700mm, or 600x900mm

• Power Consumption: 150W (250W/350W standby)
• Input Voltage: AC220V ± 10%
• Frequency: 50-60Hz

• Machine Dimensions:
  • Length: 1600mm - 2550mm (model dependent)
  • Width: 1700mm - 2080mm
  • Height: 1960mm
• Weight: 3500kg - 5000kg (varies by model)

• Cooling System: Built-in water cooling for thermal stability
• Control System: Advanced CNC with high-speed processing capabilities
• Software: Proprietary cutting optimization software included
• Safety Features: Class 1 laser safety enclosure, emergency stop buttons

• Operating Temperature: 18-28°C (64-82°F)
• Humidity: 40-70% non-condensing
• Power Stability: ±5% maximum fluctuation

• Enhanced vision system for automatic alignment
• Automated material loading/unloading system
• Custom fixture designs for specific applications
• Extended warranty and service packages available

Note: Specifications may vary slightly based on specific configurations and continuous product improvements. Please consult with our technical team for the most up-to-date information and customization options.

Applications:

Our state-of-the-art laser cutter is designed to cater to a diverse range of industrial requirements, offering precision and efficiency across various materials and applications. Some of the areas where our laser cutting machine excels are:

• Ideal for creating high-precision instrument panels, dashboards, and control interfaces
• Capable of handling thin to medium-thickness materials with exceptional accuracy

Our laser cutting machine is ideal for processing different types of glass, such as:

• Ultra-thin Glass: Precise cutting of delicate glass sheets for electronic devices
• White Glass: Clean and accurate processing for decorative and architectural applications
• High-Borosilicate Glass: Specialized cutting for laboratory equipment and heat-resistant products
• Quartz Glass: Precision cutting for optical components and semiconductor industry needs

• Tailored for cutting PCB boards, flexible circuits, and other electronic substrates
• Ensures clean edges and minimal thermal impact on sensitive electronic materials

Our laser cutting machine is ideal for working with gems and precious materials:

• Sapphire Cutting: For watch faces, smartphone camera lenses, and high-end displays
• Precision Gemstone Shaping: Creating intricate designs in precious and semi-precious stones
• LED Component Manufacturing: Cutting sapphire wafers for LED production

Our machine is capable of processing various components of an LCD, including:

• ITO (Indium Tin Oxide) conductive films
• RGB color filters
• Polarizing films

It ensures precise cutting without damaging delicate display materials.

• Accurate cutting of K9 optical glass for high-quality lenses and prisms
• Precision shaping of optical films for various industrial and scientific applications

• Micro-cutting of small, intricate parts for the medical and aerospace industries
• Custom shape cutting for unique product designs and prototypes
• Multi-layer material processing for composite products

Our laser cutting system's versatility makes it an invaluable tool across multiple industries, from consumer electronics to advanced scientific research, ensuring high-quality results and efficient production processes.
