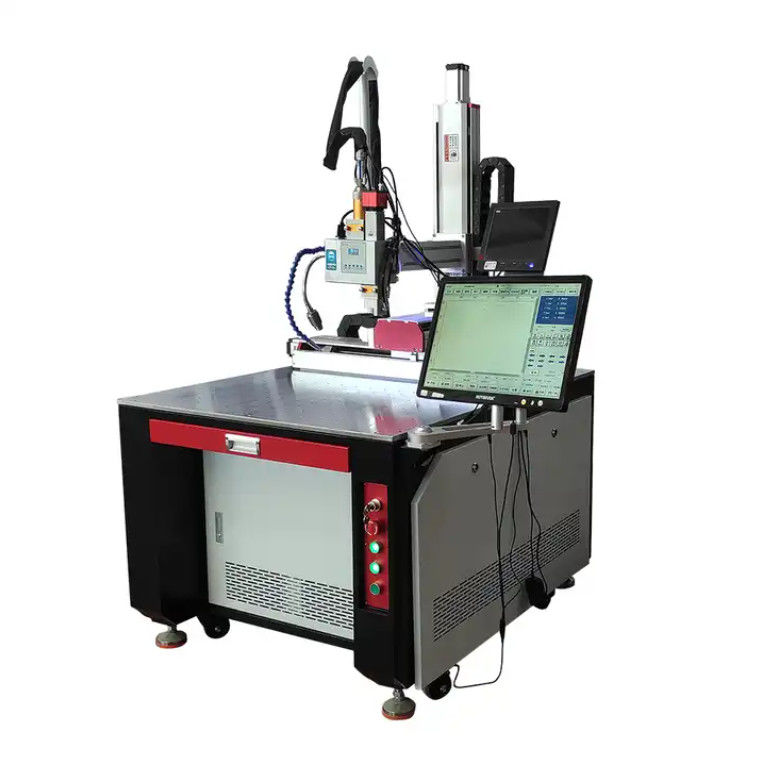

Multi - Axis Automatic CNC Laser Welding Machine (Continuous)
1000W - CKD LASER
Fully automatic laser welde is a new type of welding method. Laser welding is mainly for the welding of precision parts. It can realize spot welding, butt welding, stitch welding, sealed welding, etc., with high aspect ratio, small weld width, small heat-affected zone, and small deformation.
Fully automatic laser welde is a new type of welding method. Laser welding is mainly for the welding of precision parts. It can realize spot welding, butt welding, stitch welding, sealed welding, etc., with high aspect ratio, small weld width, small heat-affected zone, and small deformation , The welding speed is fast, the welding seam is smooth and beautiful, no treatment is required after welding, the welding seam is of high quality, no air holes, can be accurately controlled, the focus spot is small, the positioning accuracy is high, and it is easy to realize automation.
The continuous optical fiber laser welding machine is consist of welding body, welding working table, water chiller and controller system etc. This series of equipment is 3-5 times of the speed than the traditional optical fiber transmission laser welding machine, It can precisely weld plane circumference, line type products and non-standard customized production lines. The fiber laser has the characteristics of high beam quality and high energy. In the continuous welding state, compared with the same power YAG laser, it has the characteristics of deep welding depth and good welding strength. The equipment has no consumable parts long life, low failure rate and other characteristics.
|
Product Name
|
Automatic Laser Welding Machine
|
|||||
|
Laser Power
|
1000W 1500W 2000W 3000W 4000W optional
|
|||||
|
Laser Source
|
Raycus IPG JPT Max optional
|
|||||
|
Welding Head
|
WSX Raytools optional
|
|||||
|
Laser Wavelength
|
1070nm
|
|||||
|
Pulse Width
|
0.5-15ms
|
|||||
|
Pulse Frequency
|
≤100Hz
|
|||||
|
Spot adjusting range
|
0.1-3mm
|
|||||
|
Repeating precision
|
±0.01mm
|
|||||
|
Cooling System
|
Water Cooling
|
|||||
|
Voltage
|
380V/3-Phase/50Hz/40A/60A
|
|||||
1.WinYing is a real equipment manufacturers and OEM manufacturer in CHINA
2.Components selected from domestic top brand
3.Guarantee long-running accuracy of equipment
4.Ensure the efficiency of the equipment run stably for a long time. Quick response 24/7 on line service.
4 Axis Automatic Fiber Laser welding machine uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stick welding, sealing welding, etc. The welding speed is fast, no treatment is needed after welding, and the quality of the weld is high. , can be precisely controlled, small focus spot, high positioning accuracy, easy to automatic.
Our products are sold all over the world, you can rest assured.
