Introduction

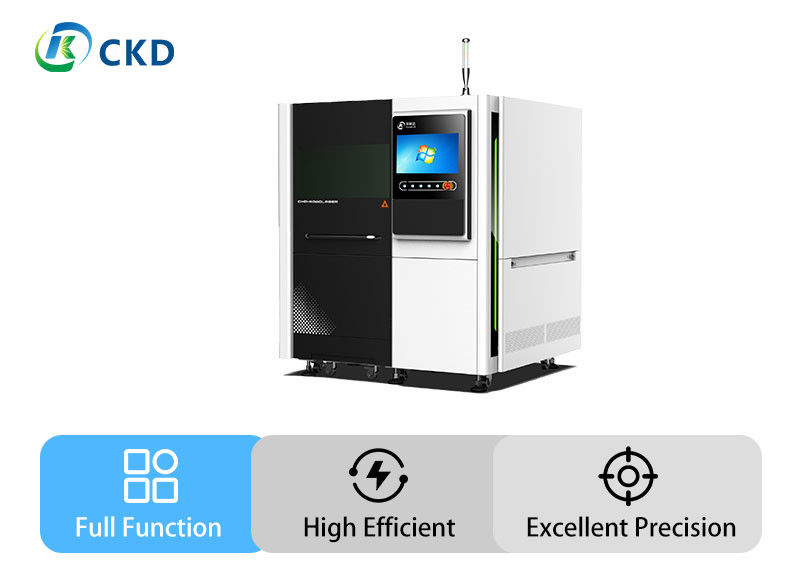

Small High precision laser cutting machine has the characteristics of high precision and small size,use the aviation aluminum beam,adopt the motor and guide rail of international famous brand.It is suitable for stainless steel, carbon steel, copper, aluminum.
Features
1. High-performance laser source with good beam quality , high power stability ;
2. Professional cutting software , multi-level authority operation, convenient for production management
3. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity , stability , shock resistance.
4. Double screw rod and double motor drive system , improve production efficiency, running speed can reach 1000mm/s .
5. The cutting precision of the whole machine is ±25um , the equipment stability is high , CPK>1.33.
7.The software has graphics nesting and sharp corner smoothing processing functions , which can realize high-speed cutting , punching, and marking functions .
8.The optical path of the whole machine is conducted by optical fiber , the external optical path is maintenance-free , and the consumption of easy loss is very small .
Parameters
| Model | CC-M1 |
| Laser | Fiber |
| Power | 1000W - 3000W |
| Energy stability | ≤3% |
| Min. focus spot diameter | >0.03mm |
| Max. cutting thickness | 3mm |
| Working area | 400*400mm(Can be customized) |
| repeat positioning accuracy | ±0.002mm |
| Power supply | 380V/50Hz/6KVA |
Configuration
| No. | Name | Quantity | Country of Origin |
| 1 | 1000w laser source | 1pc | Raycus |
| 2 | Laser cutting head | 1pc | Raytool Switzerland |
| 3 | Machine Cabinet | 1pc | QUESTT |
| 4 | X,Y axis Liner motor amd Guider | 1set | Taiwan Hiwin |
| 5 | CNC system(software) | 1set | Cyper cut CHINA |
| 6 | Cutting database | 1set | Questt laser |
| 7 | Chiller | 1set | Hanli China |
| 8 | Vacuum system | 1set |
China |
Applications
It is suit for all kinds of sheet metals cutting, micro holes processing, metal parts precision cutting. It has been widely used in aviation, shipping manufacturing, instrument equipment, mechanical and electrical products and automobile industry
Cutting Samples
Our products are sold all over the world, you can rest assured.
