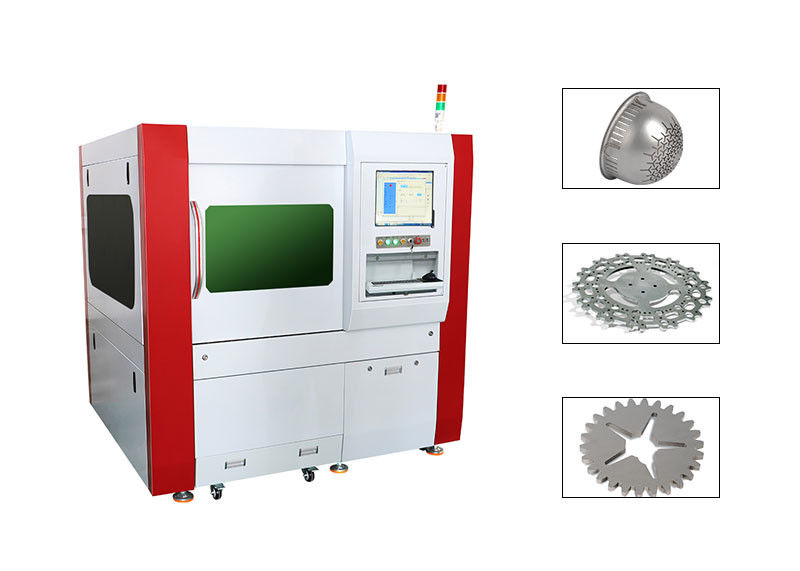

Linear Motor Fiber Laser Cutting Machine
2000w For Jewelry Metal Gold Sliver
Laser cutting is a method of cutting shapes or designs into sheet metal or other structural materials that are primarily used in the manufacturing industry,Laser cutters can cut all types of metals, from mild steel to stainless and also non-ferrous metals. More reflective metals like aluminium are more difficult to cut. In those instances, fibre lasers are the better option. The thickness of the metal can be anywhere up to 30 mm.
Our TIPTOP company focus on small size metal laser cutter, mainly have 1300×900, and 300×300.600*600,600*400 etc size metal laser cutter. And also the silver and gold laser cutter.
PRECISION CUTTING
The ball screw drive mode improves metal cutting precision .
SAFETY
The closed structure ensures safety during use .
Machine Technical Parameters
| Main Collocation |
| Articles |
Specification |
Brand |
| Linear Motor |
ULMAC3, ULMCC2 |
CKD |
| Grating ruler reading head |
Resolution 0.5μm/1μm(option) |
Spain |
| Driver |
SCFD-4D52AEB2, SCFD-0062AEB2 |
Dynahead |
| Cutting head |
BT230 |
Raytools |
| Precision linear guide |
- |
Hiwin |
| Marble |
1800*1350*200 |
Shangdong |
| Dust cover |
Standard |
Raytools |
| Main parameters |
| Working area |
600*600mm |
|
| Maximum acceleration |
2-5G |
|
| X-axis rapid movement speed |
60m/min |
|
| X-axis effective stroke |
1300mm |
|
| X-axis positioning accuracy |
±0.01mm |
|
| X repeat accuracy |
±0.004mm |
|
| Y-axis fast moving speed |
60m/min |
|
| Y-axis effective stroke |
900mm |
|
| Y-axis positioning accuracy |
±0.01mm |
|
| Y repeat accuracy |
±0.004mm |
|
| Z axis travel |
100mm |
|
| Working ambiance |
| Working temperature |
-10℃·45℃ |
|
| Relative humidity |
<90% No condensation |
|
| Surroundings |
Ventilation, no major vibration |
|
| Voltage |
3x380V±10% 220V±10% |
|
| Power frequency |
50HZ |
|
Main Features of CKD1390M High Precision fiber laser cutting machine
1.High quality cutting: Adopted Switzerland RAYTOOLS professional laser cutting head, to ensure the best cutting results.
2.Fiber laser source: adopted Maxphotonics laser source, which is the first domestic brand of the stable and reliable medium power laser source, have good performance;
3Open gantry structure: Adopted bridge gantry structure, imported rack rail drive,and using centralized lubrication device, easy to maintain;
4.Stable and practical: Adopted reinforced welded bed, after the tempering treatment and vibration aging to eliminate stress, so the machine tool deformation can be controlled in ± 0.02mm;
5.Industrial aesthetic appearance design: The beam is made with drawing craft and the fine milling processing, it has light weight, high rigidity and good dynamic performance;
6.High efficiency and saving materials: The optical path of the whole machine is transmitted by optic fiber, External optical path is free maintenance, consumable consumes little.
Our Advantages:
1 . Excellent Path Quality : Smaller laser dot and high work efficiency , high quality .
2 . High Cutting Speed : cutting speed is 2-3 times than same power CO2 laser cutting machine .
3 . Stable Running : adopt top world import fiber lasers , stable performance, key parts can reach 100,000 hours .
4 . High Efficiency for photoelectric conversion : Compare with CO2 laser cutting machine , fiber laser cutting machine have three. times photoelectric conversion efficiency.
5 . Low Cost : Save energy and protect environment . Photoelectric conversion rate is up to 25-30% . Low electric power consumption . it is only about 20%-30% of traditional CO2 laser cutting machine.
6 . Low Maintenance : fiber line transmission no need reflect lens , save maintenance cost .
7 . Easy Operations : fiber line transmission , no adjustment of optical path .
Applications&Sample Photos:
Our TPF3030M fiber laser cutting machine specially suitable for gold/silver/carbon steel ,mild steel,SS ,aluminum alloy plate and copper plate and other metal.It is suitable for medium and thin thickness material processing. Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.
