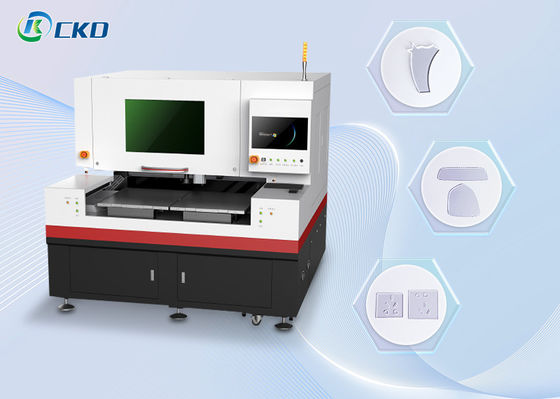

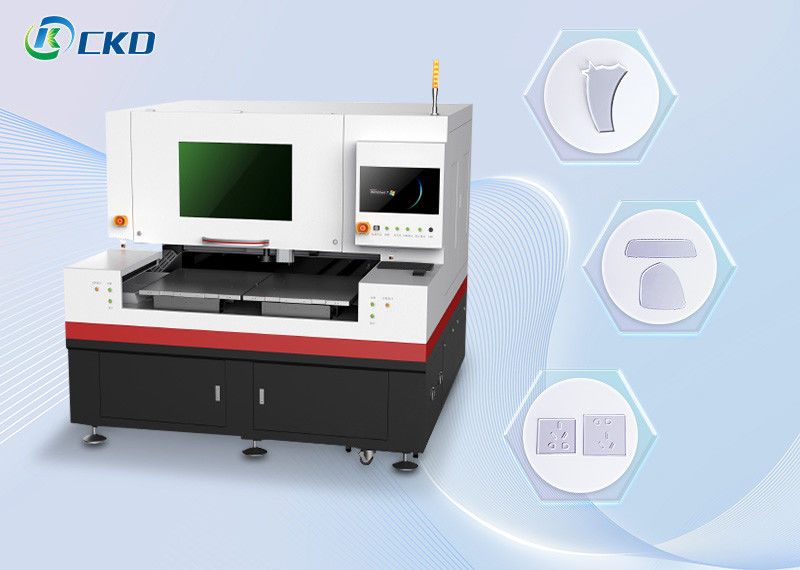

The picosecond laser glass cutting machine is a high-quality cutting equipment that offers superior performance compared to traditional cutting methods including high efficiency, with cutting speeds of up to 500mm/s, which is several times faster than CNC machines. It can cut up to 19mm thick glass in a single pass, which is three times more than traditional cutting methods. It also produces smooth and even edges, with no micro-cracks, breakage, or fragments.
|
Device Name |
Infrared Picosecond Glass Cutting & Splitting Machine |
Dual-Table Glass Cutting Machine |
Single Table Glass Cutting Machine |
|
Type |
HT-IPC- 6070CD/6090CD |
HT-IPC-4050D/6070D/6090D |
HT-IPC- 4050/6070/6090 |
|
Cutting laser source |
|||
|
Laser type |
Infrared Picosecond |
||
|
Power |
50W ( optional 10W , 20W , 30W , 60W , 80W , etc .) |
||
|
Wave length |
1064nm , Beam quality: M2<1.2 |
||
|
Pulse width |
<10PS; Pulse frequency :1Hz-1000kHz |
||
|
Type of cooling |
water-cooling |
||
|
Cutting Performance |
|||
|
Drive Motor |
XY linear motor + grating ruler , positioning accuracy <±2um , repetition accuracy < soil 1.5um , acceleration 1G , linear speed maximum 1000mm/s |
||
|
Cutting speed |
0-500mm/s |
||
|
Cutting thickness |
Ultra white glass one knife <19mm , green plate glass two knives <19mm(according to product material , thickness , speed requirements to choose the required laser power and cutting head focal depth ; Material may affect the processing thickness thicker can take multi-tool cutting) |
||
|
Minimum cutting edge breakage |
≤5um |
||
|
Cutting Accuracy |
±0.01mm |
||
|
X/Y cutting stroke |
600*900*2 / 800*1000mm*2 |
400x500mm , 600x700mm , 600x900mm dual platform |
400x500mm ,600x700mm ,600x900mm |
|
Cutting laser source |
|||
|
Laser Type |
RFCO2 |
||
|
Power |
150W / 250W / 350W |
|
|
|
Wave length |
10.6um |
||
|
Type of cooling |
water-cooling |
|
|
|
Voltage , size , weight |
|||
|
Voltage, power |
<8KW,AC220V |
<5KW,AC220V |
<4KW,AC220V |
|
Size |
L2150mm×W2080mm×H1960mm L2550mm×W2080mm×H1960mm |
L1700mm×W1700mm×H1960mm L2150mm×W2080mm×H1960mm L2550mm×W2080mm×H1960mm |
L1600mm×W1700mm×H1960mm L1700mm×W1700mm×H1960mm L1900mm×W1700mm×H1960mm |
|
Weight |
3500KG / 40000KG |
2000KG / 3500KG / 40000KG |
2000KG / 2500KG / 3000KG |
The picosecond laser glass cutting machine is eco-friendly and cost-effective as it uses no consumables and saves on production costs, increasing product profitability. It can cut various shapes with high precision of up to 20µm, making it ideal for cutting reinforced and non-reinforced glass, such as car windows, phone glass covers, camera glass covers, and optical filters. It also cuts blue sapphire glass, such as LED light bars and camera lens covers.
The machine’s design features a high-power picosecond laser source with stable performance.
Overall, picosecond laser glass cutting machine is a breakthrough technology that offers superior cutting performance, high efficiency, and eco-friendliness, making it an ideal choice for glass manufacturers looking to increase their production capacity while reducing costs.
