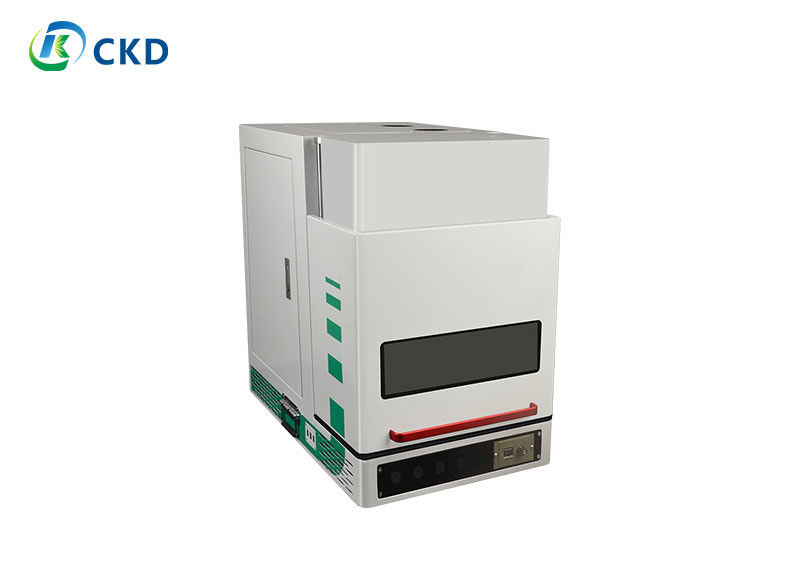

Portable Safty Enclosed Laser Marking Machine For Metal Stainless And Steel 30W
PRODUCT PARAMETER
| Laser Type | Fiber Laser |
| Laser Power | 30w |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | AI / PLT / DXF / BMP / Dst / Dwg / LAS / DXP |
| Working Accuracy | 0.01mm |
| Laser Source Brand | MAX |
| Weight (KG) | 56 KG |
| Marking Area | 300*300mm |
| Configuration | Stand-alone |
| Control Software | EZCAD |
| Power supply | 110V / 220V 50Hz / 60Hz 2kVA |
| Marking Depth | 0.01- 2 mm |
Closed Fiber Laser Marking Machine
1.Output power: 20W/30W/50W/100W
2.Light wavelength: 1064nm
3.Beam quality M2:<1.2
4.Monopulse repetition frequency: 10kHz~200kHz
5.Refrigeration method: evaporative cooling
6.Focusing range: ≤±30mm
7.Laser marking speed: ≤12000mm/s
8.Working temperature: 18~28℃
9.Working standard voltage: 110V-220V50Hz/60Hz (optional)
PRODUCT DESCREPTION
PACKAGE AND SHIPMENT
1.We have three layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-worthy packing or Sea packing which with international standard.
3. DHL / TNT / FedEx etc.
WHY CHOOSE ENCLOSED MARKING MACHINE
Fiber laser marking machine is the most excellent laser marking machine and equipment in the world at present, with cost-effective light, small size, faster speed, long service life in the work, smart and convenient installation and protection free characteristics.
Choose fiber laser generator to produce laser engraving machine, light cost-effective, its output core is 1064nm, the whole mechanical service life is about 100,000 hours, compared with other types of laser marking machine service life is longer, photoelectric conversion efficiency is above 28%, Compared with other types of laser marking machine 2%-10% conversion efficiency advantages are particularly large, and the characteristics of green environmental protection and other fields are also better.
SERVICE
1.one year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
FAQ
Q1. What support do I get with my laser machine?
Our products are sold all over the world, you can rest assured.
