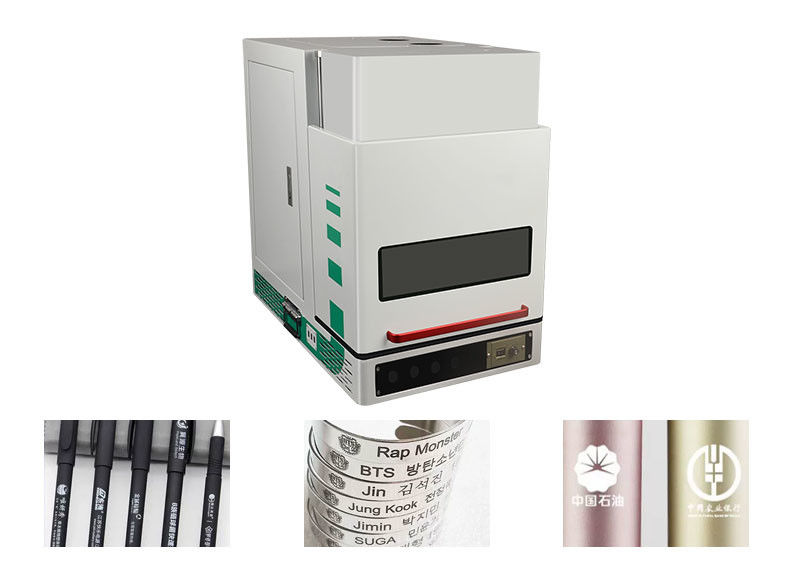

Safty Enclosed Laser Marking Machine For Metal Stainless And Steel 50W
PRODUCT PARAMETER
| Laser Type | Fiber Laser |
| Laser Power | 50w |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | AI / PLT / DXF / BMP / Dst / Dwg / LAS / DXP |
| Working Accuracy | 0.01mm |
| Laser Source Brand | MAX |
| Weight (KG) | 55 KG |
| Marking Area | 110mm*110mm (customized) |
| Feature | Deep marking |
| Control Software | EZCAD |
| Power supply | 110V / 220V 50Hz / 60Hz 2kVA |
| Working area | 110*110mm / 175*175mm / 200*200mm / 300*300mm |
| Marking Depth | 0.01- 2 mm |
| Marking material | Metal Sheet |
HOW TO USE LASER MARKING MACHINE
A boot steps:
① Check that the ground cable of the device is grounded.
② Check whether the power cord of the laser marking machine is correctly connected and reliable.
③ Insert the key switch, turn 90o clockwise to the "on" position, turn on the main power supply, and the power indicator is on.
④ Confirm that the laser marking machine emergency stop switch is pressed.
⑤ Turn on the power switch of the computer host and computer monitor.
⑥ Rotate the red emergency stop switch in the direction of the arrow, so that it springs up, you can turn on the laser head power supply, about 1 minute after the laser head is started.
⑦ Remove the lens cap; At this point, the laser marking machine is opened and can accept the operator's command for marking operation.
Two dozen mark operation
① Double-click the marking program icon to enter the program.
② Select the marking file, double-click the date and time in the content to modify, click OK, the modification is complete.
Three dozen mark test and print position
① On the workbench or production line, place a test piece equal to the height of the marking workpiece, and confirm that the test piece is indeed stable.
② Mark by operating the marking control software. To make the marking effect the most. Preferably, the following steps can be adjusted.
Fourth, adjust the focal length by adjusting the head lifting device.
① Adjust power, marking speed and other parameters in the marking software.
② Enter the software, double-click the print date, and drag it up and down with the mouse to adjust the print position to the appropriate position.
③ Print test can be carried out after completing the above steps.
④ After the test is correct, re-mark the workpiece.
Five-off
① Press the red mushroom button (emergency stop switch) to cut off the laser head power supply.
② After confirming that the industrial computer does not run any software, exit and shut down normally.
③ Turn the key switch 90o counterclockwise to the "off" position, turn off the main power supply of the marking machin
PRODUCT DESCREPTION
PACKAGE AND SHIPMENT
1.We have three layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-worthy packing or Sea packing which with international standard.
3.According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of products during transportation.
Characteristics of closed fiber laser marking machine
1. Long service life, more than 100,000 hours.
2. Choose a compact laser marking machine with evaporative cooling.
3. The productivity is 2 to 5 times of the traditional laser marking machine or laser marking machine.
4. The application of ammeter scanner and electronic device adjustment equipment, each time can be accurately marked, with high precision and accuracy.
5. Technical professional controller and laser marking mobile software. The mobile phone software automatic control system uses windows pages, which are composed of documents exported by Coreldraw, AutoCAD, Photoshop and other mobile phone software
6. Laser marking speed is faster, high efficiency and high precision.
7. Beautiful appearance, easy to operate.
8. Closed design, protective cover maintenance.
The closed fiber laser marking machine has a protective cover, the actual operation of the closed fiber laser marking machine is convenient, suitable for automatic lens focal length adjustment. Safety laminated glass is included to maintain operator safety. It is the best choice for individual users and companies.
SERVICE
1.one year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.
6.For free sample testing, please send us your file, we will do marking here and make video to show you the effect, or send sample to you for checking quality.
FAQ
Q1. What support do I get with my laser machine?
Our products are sold all over the world, you can rest assured.
