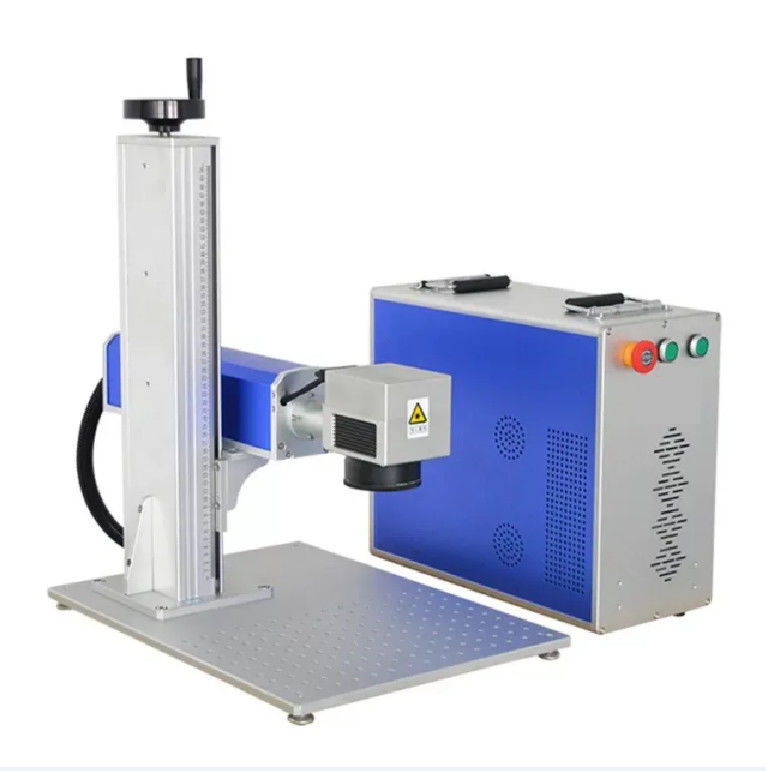

Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source

Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source

Products - Fiber Laser Marking Machine
  • Laser Type
    Fiber Laser
  • Laser Power
    20W/30W/50W/100W
  • Beam Quality
    M2 <2
  • Pulse Repetition Frequency
    20KHZ ---- 100KHZ
  • Minimum Character
    0.3mm
  • Laser Wave Length
    1064nm
  • Whole Machine Power
    500w
  • Ambient Operating Temperature
    15 ° C - 35 ° C
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO / CE / FDI
  • Model Number
    CM-F6
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-30 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 Sets Per Month

Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source

  • Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source
Get Price Contact Now

Split Type Fiber Laser Marking Machine

50w With Raycus JPT MAX Laser Source



Portable Type Fiber Laser Marking Machine with JPT / MAX / RAYCUS Source

1 . Model : Fiber Laser Marking Machine
2 . Applicable materials :
Applicable various metal , such as silver , alloy , aluminum , stainless steel , copper etc , and some non-metal materials , such as
PVC , PC , black acrylic .
3 . Applicable industry :
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc .



Parameter
1
Laser power
20W 30W 50W 100W
2
Laser wavelength
1064nm
3
Beam quality
M2<2
4
Control software
Ezcad (provided)
5
Marking depth
≤0.3mm
6
Cutting depth
≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7
Marking speed
≤7000mm/s
8
Minimum line width
0.01mm
9
Minimum character
0.5mm
10
Marking Size
110 * 110mm ( 75mm 200mm 300mm optional )
11
Electric power
<500W
12
Working voltage
110/220V ± 10%, 50/60HZ
13
Cooling way
Air cooling
14
Ambient operating temperature
15 ° C - 35 ° C
15
Graphic file format
PLT, DXF, AI, BMP, JPG
16
Machine weight
39
17
Machine size
56L * 55W * 72H (cm)
18
Packing
Plywood box



Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source 0

Machine detail

LASER SOURCE
We use Chinese famous brand Max laser source. Optional: IPG / JPT / Raycus laser source.



JCZ CONTROL BOARD
Ezcad genuine products , user-friendly interface , functional diversity, high stability, high precision.
Each board has its own number to ensure that it can be inquired in the original factory . Refuse to fake .



THE CONTROL SOFTWARE
1 . Powerful editing function .
2 . Friendly interface .
3 . Easy to use .
4 . Support Microsoft Windows XP , VISTA , Win7 , Win10 system.
5 . Support for TrueType fonts , single line fonts (JSF) , SHX fonts , dot
matrix fonts (DMF) ,1D bar codes and 2D bar codes. Flexible variable
text processing, changing text in real time during processing , can directly read and write text files , SQL databases and Excel file .



DOUBLE RED LIGHT POINTER
When two red light coincides best focus.
Double red light pointer help customers make focus quickly and easily.



RED LIGHT PREVIEW
Adopt Red light preview to show the laser path since laser beam is invisible .



MARKING RULER AND ROTATING HANDLE
Enables customers to precisely position for fast engraving.
Adapting To Different Products Height



WORKING PLATFORM
Alumina working platform and imported precise beeline device .
Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform .



Split Type Fiber Laser Marking Machine 50w With Raycus JPT MAX Laser Source 1



Our Services

1.One year quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery



FAQ

Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype .

Q3. How long is the delivery time?
For standard machines, it would be 3-15 days ; For non-standard machines and customized machines according to clien's specific requirements , it would be 10 to 30 days .

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control . The complete machine will be stested to make sure they can work very well before being out of factory . Our machine passed CE Certificate , meet European and American standard , were exported to more than 100 Countries .

Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
