5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking

5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking

  • High Light

    5000mm/S Fiber Laser Marking Machine


    Customized Fiber Laser Marking Machine


    Customized Laser Marking Machine Fiber

  • Laser Type
  • Marking Material
    Metal Sheet
  • Laser Wavelength
  • Operating System
    Windows / Mac OS / Linux
  • Control Software
  • Supported File Formats
    AI / PLT / DXF / BMP
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD1300-USD2500 / Set
  • Packaging Details
    Wooden Box
  • Delivery Time
    10-15 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000 Set / Sets / Month

5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking

White Color Laser Marking Machine For Production Line Fiber Marking Wood Stainless




Laser Type Fiber
Power Customized
Graphic Format Supported AI / PLT / DXF / BMP / Dst / Dwg / LAS / DXP
Working Accuracy 0.01mm
Laser Source Brand IPG
Weight (KG) 55 KG
Warranty 1 year
Marking Area customized
Mode of Operation Pulsed
Control Software EZCAD
Cooling Mode Air Cooling
Power supply 220V 50Hz
Marking Depth 0.01- 2 mm
Marking material Metal Sheet





A boot steps:

① Check that the ground cable of the device is grounded.
② Check whether the power cord of the laser marking machine is correctly connected and reliable.
③ Insert the key switch, turn 90o clockwise to the "on" position, turn on the main power supply, and the power indicator is on.
④ Confirm that the laser marking machine emergency stop switch is pressed.
⑤ Turn on the power switch of the computer host and computer monitor.
⑥ Rotate the red emergency stop switch in the direction of the arrow, so that it springs up, you can turn on the laser head power supply, about 1 minute after the laser head is started.
⑦ Remove the lens cap; At this point, the laser marking machine is opened and can accept the operator's command for marking operation.


Two dozen mark operation
① Double-click the marking program icon to enter the program.
② Select the marking file, double-click the date and time in the content to modify, click OK, the modification is complete.


Three dozen mark test and print position
① On the workbench or production line, place a test piece equal to the height of the marking workpiece, and confirm that the test piece is indeed stable.
② Mark by operating the marking control software. To make the marking effect the most. Preferably, the following steps can be adjusted.


Fourth, adjust the focal length by adjusting the head lifting device.
① Adjust power, marking speed and other parameters in the marking software.
② Enter the software, double-click the print date, and drag it up and down with the mouse to adjust the print position to the appropriate position.
③ Print test can be carried out after completing the above steps.
④ After the test is correct, re-mark the workpiece.


① Press the red mushroom button (emergency stop switch) to cut off the laser head power supply.
② After confirming that the industrial computer does not run any software, exit and shut down normally.
③ Turn the key switch 90o counterclockwise to the "off" position, turn off the main power supply of the marking machin





5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking 0

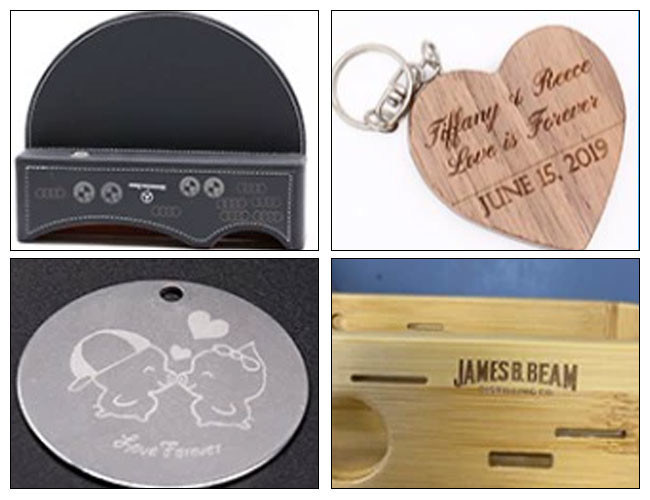

Suitable for all kinds of metal materials, such as: stainless steel, iron, copper, aluminium, silver, etc.

As well as some non-metallic materials, such as PC, ABS and PVC PC+ABS.



The mini laser engraving machine is widely applied in hardware products, tool accessories, precision instrucments, glasses and watches, jewelry, auto pats plastic buttons, electronic components, mobile communication, PVC pipe, sanitary ware and other industries.





Laser marking / printing / engraving on all metal material and some plastic material. This fiber laser marking machine is suitable for marking custom logo text, symbol, pattern, barcode, 2D code, serial number, etc higher laser power also suitable for cutting metals.





5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking 1



5000mm/s Customized Fiber Laser Marking Machine For Wood Stainless Metal Marking 2




Advantages of Laser Flying Marking Machine


Pipeline laser marking machine plays a pivotal role in the status of modern industrial equipment, and is not only limited to the application of product packaging, many products are also used to laser marking, such as the internal marking of electronic products such as mobile phones.


With the continuous development of laser technology, the working mode of static laser marking machine has been unable to fully meet the production needs of enterprises, and the fast-paced and rapid development of society needs a more efficient production mode.




In this era of the pursuit of efficiency, high quality, the pursuit of automation, intelligent assembly line laser marking machine has become the new darling of various industries, flying laser marking function and assembly line cooperation, improve production efficiency, reduce labor costs.



With the development of science and technology, the flying laser marking machine has received countless attention in the market. And its marking effect is beautiful and the quality is good. Furthermore, it has strong acceptance ability in the market.





The static laser light machine can only be operated in static form, which is equivalent to only a single operation. The pipeline laser marking machine uses the principle of motion to operate, and takes vector marking to move the cursor in the direction of a unidirectional axis to carve the motion of the printing object.



In simple terms, the meaning of the pipeline laser marking machine is to follow the work line, in conjunction with industrial automation, the workpiece to complete the marking within a period of time, is conducive to product tracking records, laser marking machine can hit the product batch number production date, barcode two-dimensional code, etc., is a kind of embodiment of automation. The static laser marking is a semi-automatic marking mode, manual loading and unloading, the workpiece is placed on the working platform, and the manual unloading is completed after the marking. Pipeline laser marking machine reduces production management costs, reduces consumables costs, improves production efficiency, and reduces management time.






1.We have three layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


2.Air-worthy packing or Sea packing which with international standard.



SERVICE year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.


2. Lifetime maintenance free of charge.


3. Free training course at our plant.




Q1, Do I need special technicians to run a laser?
A2: No. We will give you full training on how to use your new laser machine and the software provided, and how to carry out the basic routine maintenance.The training is easy to understand and the laser machine is simple to operate.
Q2, What do I need to get started with a the laser?
A3: The space for the machine to stand, a computer for your laser machine to run off, the sockets for the laser equipment to connect to, and yourself for the training
Q3. How long is the delivery time?
For standard machines, it would be 10-15 days; For nonstandard machines and customized machines according to clients specific requirements, it would be 3 to 15 days.
