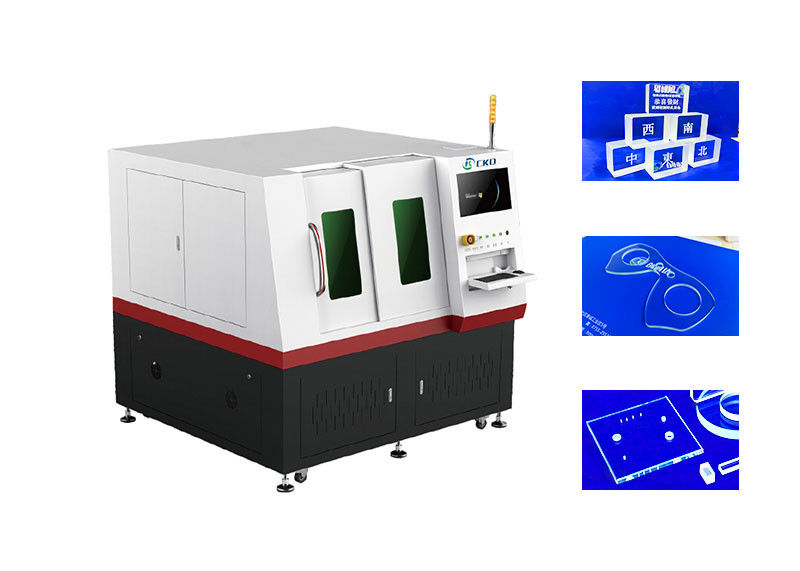

This glass drilling machine is widely used in household appliances , sanitary ware , decoration , technology , optics , Drilling of glass and ceramic products in construction, photovoltaic and other industries .
Specific materials : ordinary glass , ultra white glass , K9 glass , stone British glass , high borosilicate glass , etc
1 . High performance servo + precision screw + precision guide closed loop control ;
2 . High power pulse laser is used to cut glass with small edge breakage and fast speed .
3 . Using high-precision galvanometer , with telecentric lens , cutting stability , and the maximum close to no taper ;
4 . High negative pressure vacuum machine is used to adsorb products to ensure positioning stability ;
5 . Equipped with automatic alignment CCD and visual lens , can be used for alignment cutting ;
6 . Professional cutting software, easy to learn and use to meet application needs ;
|
Technical parameters |
|
| Laser type | Green pulse laser |
| Laser power | 10w , 30w , 45w |
| laser wavelength | 532nm |
| laser pulse width | 7ns@100KHz |
| Laser pulse frequency | 50-500KHz |
| Work Size | 800*800mm 800*1000mm |
| Drilling Thickness | ＜20mm |
| Drilling Φ | ＜Φ100mm |
| Positioning Accuracy | ±0.02mm |
| Chipping | ≤200μm |
| Positional accuracy | ±3μm / ±5μm |
| Power | AC220V±5%,L+N+E,<3KW |
| Dimension | 1560mm × 1750mm × 1750mm / 1900mm ×1800mm × 1900mm |
| Weight | 1500kg |
|
Applicable Industries
|
||
|
Glass
Optic/UTG/Willow/Brittle/Biomedical Glass
|
Real Estate
Architectural decoration bathroom glass
|
Automobile
Car glass/Instrumentation panel
|
|
Communication Media
Mobile/Watch /Sapphire cover/ Camera/CCTV Lens
|
Home Appliance
Home appliance glass panel lighting glass
|
New Energy
Photovoltaic glass
|
1 . who are we?
We are based in Shenzhen , China , start from 2010 , sell to Domestic Market ( 25.00% ) , Eastern Europe (19.00% ) , Western Europe ( 13.00% ) , Southeast Asia ( 12.00% ) , South Asia ( 6.00% ) , Eastern Asia ( 5.00% ) , North America ( 5.00% ) , Mid East ( 5.00% ) , South America(5.00%) , Africa ( 4.00% ) , Oceania ( 1.00% ) . There are total about 100-500 people in our office .
2 . how can we guarantee quality?
Always a pre-production sample before mass production ;
Always final Inspection before shipment ;
3 . what can you buy from us ?
laser cutting machine , fiber laser cuttin ,CO2 laser cutting machine , Welding machine , CNC router
4. why should you buy from us not from other suppliers?
Our equipment sold to more than 150 countries and regions at home and abroad . Bolei Laser always adhere to the customer-centered , quality first , innovative development , sincere treatment of people's business philosophy .
5 . what services can we provide?
Accepted Delivery Terms : FOB , CIF , DDU ；
Accepted Payment Currency : USD , EUR ;
Accepted Payment Type : T/T , L/C , PayPal , Western Union ,Escrow ;
Language Spoken : Chinese , Spanish , Japanese , Portuguese , German , French , Russian , Korean , Italian
Our products are sold all over the world, you can rest assured.
