Max Laser Power 180W Laser Drilling Equipment For Precise / Efficient Drilling

Max Laser Power 180W Laser Drilling Equipment For Precise / Efficient Drilling

  • High Light

    180W Laser Drilling Equipment


    Precise Laser Drilling Equipment

  • Product Name
    Laser Drilling Machine
  • Max Laser Power
  • Position Accuracy
  • Laser Wavelength
  • Pulse Energy
  • Repetition Frequency
  • Power Supply
  • Laser Beam Mode
    Green Nanosecond
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Max Laser Power 180W Laser Drilling Equipment For Precise / Efficient Drilling

Max Laser Power 180W Laser Drilling Machine for Precise and Efficient Drilling

Product Description:

The laser glass drilling machine is a laser processing system that uses high-precision optical lenses and is equipped with a control system. It can effectively make precise hole drilling in glass products, such as glassware, glass devices and optical glass.

The machine can adopt coring, linear cutting, oblique cutting and ultra-small hole drilling and can also perform the machining of circular holes, slot holes, and other types of holes. It is usually considered to be a reliable and efficient equipment for precision hole processing of glass materials.



Technical parameters
Laser type MOPA Fiber Laser
Laser power 180w
laser wavelength 532nm
laser pulse width 7ns@100KHz
Laser pulse frequency 50-500KHz
Work Size 600*900mm
Drilling Thickness <20mm
Drilling Φ <Φ100mm
Positioning Accuracy ±0.02mm
Chipping ≤200μm
Positional accuracy ±3μm / ±5μm
Power AC220V±5%,L+N+E,<3KW
Dimension 1560mm × 1750mm × 1750mm / 1900mm ×1800mm × 1900mm
Weight 1500kg

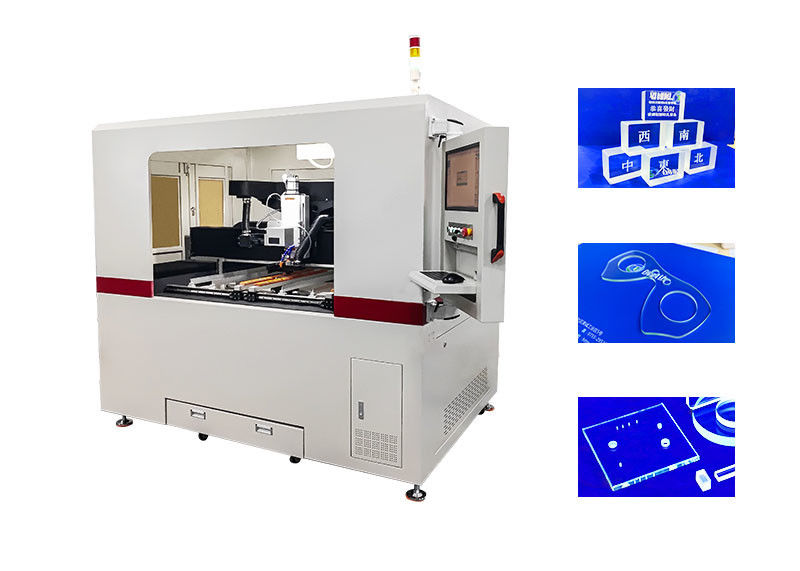

Max Laser Power 180W Laser Drilling Equipment For Precise / Efficient Drilling 0


High precision: The Laser glass drilling machine uses laser technology for processing, providing very accurate outcomes with the capability to create tiny holes, to meet the higher standard of glass product processing needs.

Non-contact processing: Laser glass drilling machines employ laser beams for processing, which is contact-free, avoiding the surface damage and cracking associated with traditional mechanical processing, ensuring quality glass product manufacturing.

High efficiency: Offering remarkable efficiency, laser glass drilling machines complete the hole processing of glass materials quickly and accurately, optimising productivity and reducing production costs.

Flexibility: Adaptability is one of the many strengths of a laser glass drilling machine, with the capability to process various shapes like round holes and slot holes, offering a great degree of diversity.

Automatic control: Many laser glass drilling machines also possess advanced numerical control systems, providing automated control of the process to improve stability and consistency.



Glassware manufacturing: Laser glass drilling machine can be used to create hole processing in products such as glass glasses, glass bowls, glass bottles and other glassware, such as nozzle holes, handle holes, etc.

Optical glass processing: This machine is perfect for precision hole processing of optical glass materials, making it suitable for optical device manufacturing.

Glass device processing: Laser glass drilling machine is ideal for hole processing in glass tubes and glass rods, which can ensure precise processing of glass devices.

Glass crafts manufacturing: This machine can be used to create hole processing and decorative features on glass crafts such as glass pendants and glass jewelry.

Optical device processing: Laser glass drilling machine can also be used for laser lenses, optical filters, hole processing and contour processing, making it perfect for optical device processing.



CKD's Laser Drilling Machine is a perfect choice for glass drilling, featuring 20kHz repetition frequency, 180W max laser power, 1064nm laser wavelength and 220V/50Hz power supply. It is portable and certified by ISO/CE/FDI. The dimension of the machine is 1560mm*1750mm*1750mm. The minimum order quantity is 1 and the packaging is Wooden box. The price is Negotiated. Delivery time is 15-45 days and payment terms are L/C and T/T. The supply ability is 50 sets per month.


Support and Services:

Technical Support and Service for Laser Drilling Machine

We provide professional technical support and services to make sure that our customers get the most out of their laser drilling machine purchase.

We have a team of experienced and knowledgeable engineers who are available to answer any technical questions and provide assistance with machine setup and maintenance.

We also offer a range of spare parts, accessories, and consumables for our customers to ensure that their machine is running at peak performance at all times.

Our team is committed to providing our customers with the highest level of service and support. We are always available to answer any questions or address any concerns that our customers may have.


Packing and Shipping:

Packaging and Shipping of Laser Drilling Machine

The laser drilling machine is packaged and shipped in accordance with the following steps:

  • The machine is securely placed in a cardboard box.
  • The cardboard box is then sealed using strong adhesive tape.
  • Additional cushioning material is added to the box to protect the machine from shock during transit.
  • The box is then labelled with the necessary shipping information.
  • The box is then sent to the customer with the chosen delivery service.


Q1 : Before asking me about our laser drilling machine, you'd better provide me with the following information
1) Your glass size and thickness. Because in our factory, we have different models according to the work area.
2) Your material.
ptical Lenses/Optical Mirrors/Windows and Diffusers/Optical Filters/Polarization Optics/Beamsplitters/Prisms/Diffraction Gratings/Optical Assemblies/SCHOTT Optical Components/Infrared Optics

Q2 : Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better
work environment. Except for the damaged parts, no parts need to be replaced.
Q3 : Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
