500W Automatic Cantilever Mould Repair Laser Machine YAG Spot Laser Repairing

500W Automatic Cantilever Mould Repair Laser Machine YAG Spot Laser Repairing

  • High Light

    500W Cantilever Mould Repair Laser Machine


    Automatic Cantilever Mould Repair Laser Machine

  • Name
    Mould Repair Laser Welding Machine
  • Work Size
  • Laser
  • Laser Power
    1000W / 1500W
  • Pulse Width
  • Beam Rang
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-30 Work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 Sets Per Month

500W Automatic Cantilever Mould Repair Laser Machine YAG Spot Laser Repairing

500w Automatic Cantilever Mold Welding Machine YAG Spot Laser Repairing


Widely used in die-casting molds, plastic molds, aluminum beryllium copper molds, small and medium-sized molds , extra large molds , sand holes , cracks , chipping angle and wear edging , sealing edges and other minor parts of the repair . The applicable base materials include : various die steel , stainless steel , beryllium copper , precious metal , ex-tremely hard material , chain , jewelry , electronic components , sensors , precision machinery , communication , connectors , data lines , crafts , etc .



1 . Three-dimensional lifting arm
Used to support the optical path , which can be manually moved leftand right

2 . Handle control box
Control the movement direction and speed of the boom

3 . Electric lifting workbench
Automatic lifting and lowering for more convenient operation


Technical Parameters:

Parameter Value
Product Name Mould Repair Laser Welding Machine
Cooling System Water Cooling
Pulse Width 0.1-20ms
Power Supply 220V
Welding Depth 0.1-1.2mm
Welding Accuracy High Accuracy
Welding Speed High Speed
Laser Source Fiber
Laser Power 1000W
Weight 215KG

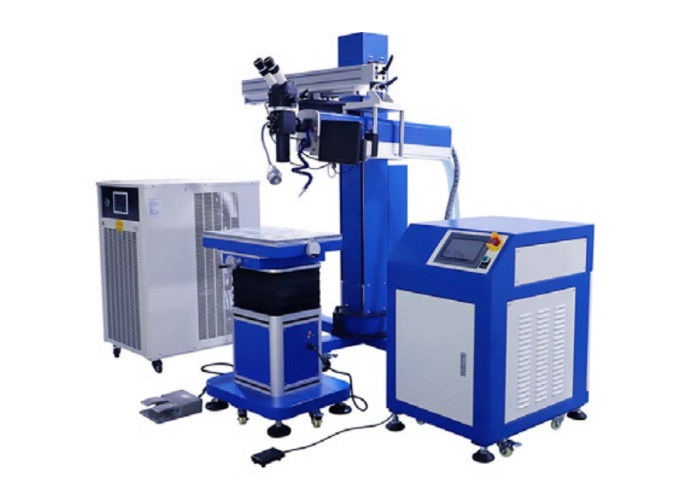

500W Automatic Cantilever Mould Repair Laser Machine YAG Spot Laser Repairing 0


Alien Machinery laser welding cleaning and cutting three-in-one machine is a machine that integrates multiple processes, which can realize three different processes of laser welding, cleaning and cutting.

It has the following advantages: High efficiency: Due to the integration of multiple processes, the laser welding, cleaning and cutting three-in-one machine can complete multiple operations on the same equipment, reducing equipment transfer time and operator workload, thereby improving production efficiency. Environmental protection and energy saving: Alien Machinery three-in-one machine adopts laser technology for processing. Compared with traditional mechanical processing, it will not produce waste water, waste gas and other pollutants, so it has better environmental protection benefits. High reliability: The machine is easy to operate, the system is stable and the work is reliable. Under high-intensity working conditions, the machine will not fail. Wide range of applications: It is suitable for processing different types of materials, such as metal, stainless steel, carbon steel, aluminum, etc., and can be used in many industries such as automobiles, aerospace, electronics, and machinery.
500W Automatic Cantilever Mould Repair Laser Machine YAG Spot Laser Repairing 1


1 . Adopt Germany imported metal cavity , corrosion resistance , high temperature resistance , The cavity lifetime is 8-10
years,xenon lamp lifetime is more than 8 million times .

2 . Uses the world's most advanced automatic shading system to eliminate eye irritation during working hours

3 . 10X microscope magnification, cross-cursor knowledge , and automatic light shading with high-speed liquid crystal light valve . The protective gas output in synchronization with the laser will ensure the appearance of solder joints and the solder joints will not oxidize and discolor

4 . The display adopts 7-inch LED screen , which can realize the free conversion in English and Chinese , and can be connected with the international market ; CCD monitoring system can be installed

5 . Small heat-affected zone , won’t cause deformation of the mold



1.Why choose us?
Execeed 10 years laser industry experience.
Professional team offer you the best quality machine and best after-sales service.We focus on every detail of the products, Each of us try best to delicated on ourwork to make you andus win-win together.

2.Can you customize? Can you OEM?
Of course. We can OEM and provide the customized solution for laser marking, cutting, welding as peryour requirements.

3.What about the lead time for production?
it depends on the order quantity and the product. Usually our lead time is 5 working days after orderconfirmed.

4.Could you please tell me the Warranty Period of your product?
Our warranty period is two years free and lifelong maintenance.

5.Do you have technical backup to all customers from different countries?

To be surely, our technical support is always available and quick response. For installing andrunning, our technician has installed the machine before shipping. At the same time, we will senddetail training video and user manual for your information.
