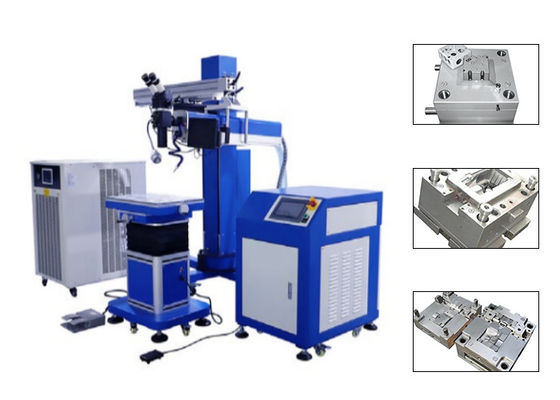

200W YAG CNC Automatic Fiber Laser Welding Machine For Mould Repair

200W YAG CNC Automatic Fiber Laser Welding Machine For Mould Repair

Products - Mould Repair Laser Welding Machine
  • High Light

    200W Automatic Fiber Laser Welding Machine

    ,

    CNC Automatic Fiber Laser Welding Machine

  • Name
    Automatic Fiber Laser Welding Machine For Mould Repair
  • Power
    200W
  • Wavelength
    1064nm
  • Focal Spot Diameter
    0.3-2mm
  • Laser Frequency
    1-20Hz
  • Spot Adjustment Range
    0.3-2mm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO / CE / FDI
  • Model Number
    CW-M8
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 Sets Per Month

200W YAG CNC Automatic Fiber Laser Welding Machine For Mould Repair

  • 200W YAG CNC Automatic Fiber Laser Welding Machine For Mould Repair
Get Price Contact Now

200W YAG Mould Repair Fiber Laser Welding

Machine With Cnc Automatic



Features
1 . Adopt imported ceramic concentrating cavity , high reflectivity , strong energy , high temperature resistance, corrosion resistance and long service life ;
2 . equipped with 1.5P special chiller, can meet the long-term, high-power welding atability ; remarks: 400W with 3P chiller
3 .  equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high - precision straight guide rails are light and flexible , accurate positioning, bearing capacity up to 200 kg ;
4 .  the laser head can slide back and forth , manual lifting , the laser head can be easily rotated 180 degrees , convenient to repair any side ;
5 . Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process , and maintain the natural color of the product to ensure the welding quality .





Application range
Suitable for mobile communication ,  jewelry crafts , electronic components , watches , sensors , precision machinery , mold repair , hardware , auto parts , etc., various metals and alloys .





Mould Repair Laser Welding Machine
Max. Output Power 200W 400W 600W
Laser type YAG
Pulse Width 01-10ms
Wavelength 1064nm
Focal Spot Diameter 0.3-2mm
laser frequency 1-20Hz
spot adjustment range 0.3-2mm
Single Pulse Energy 120J
Total power consumption Microscope or CCD for option
Workbench Bearing ≤200kg
Dimension of Worktable Stroke of 3 axis:X axis 250mm,Yaxis 150mm, Z axis 200mm (electric or manual optional)
Dimensions 1000*550*1150mm
Weight (KG) 150 KG

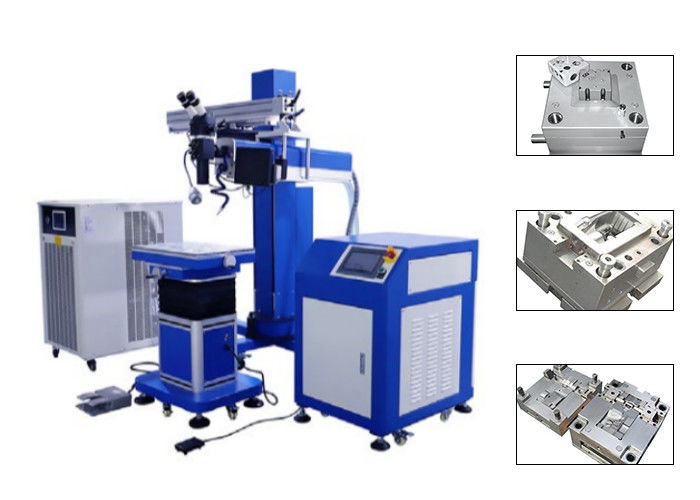

200W YAG CNC Automatic Fiber Laser Welding Machine For Mould Repair 0

The automatic mold laser welding machine consists of laser power supply , automatic operation table , optical system , CCD and microscope imaging , cooling system , red light positioning system and air blowing device .The laser power supply is a power supply specifically designed for pulsed Nd:YAG lasers. The switching power supply is used, and the internal is controlled by the single chip microcomputer, which is a real numerical control power supply. By selecting the parameters such as laser output power , frequency and pulse width through the touch mode operation panel , the user can program the laser pulse waveform and parameters through the keyboard to match the welding parameters with the welding requirements to achieve the best welding effect , thus satisfying almost All metal welding needs , is the ideal configuration of multi-function laser welding machine , with the function of misoperation and over-temperature automatic protection.

Use Environment
1 . Atmospheric pressure: 86kpa~106kpa.
2 . Humidity requirement is 40%~80%, no condensation.
3 . The ambient temperature is required to be between 15 °C and 30°C.
3 . The working space of the equipment should be smoke-free and dust-free, avoiding the dusty working environment such as metal polishing and grinding.
4 . There should be no strong electromagnetic interference near the installation equipment, and there should be no radio transmission station (or relay station) around the installation site.
5 . Ground amplitude: less than 5um; vibration acceleration: less than 0.05g. Avoid machine tools such as large stamping in the vicinity.
6 . Power grid fluctuation: ± 5%, the grid ground wire meets international requirements. In areas with a voltage amplitude of 5% or more, an automatic voltage regulator and a current stabilizing device should be installed.

FAQ:

1.Why choose us?
Execeed 10 years laser industry experience.
Professional team offer you the best quality machine and best after-sales service.We focus on every detail of the products, Each of us try best to delicated on ourwork to make you andus win-win together.


2.Can you customize? Can you OEM?
Of course. We can OEM and provide the customized solution for laser marking, cutting, welding as peryour requirements.


3.What about the lead time for production?
it depends on the order quantity and the product. Usually our lead time is 5 working days after orderconfirmed.


4.Could you please tell me the Warranty Period of your product?
Our warranty period is two years free and lifelong maintenance.


5.Do you have technical backup to all customers from different countries?

To be surely, our technical support is always available and quick response. For installing andrunning, our technician has installed the machine before shipping. At the same time, we will senddetail training video and user manual for your information.
