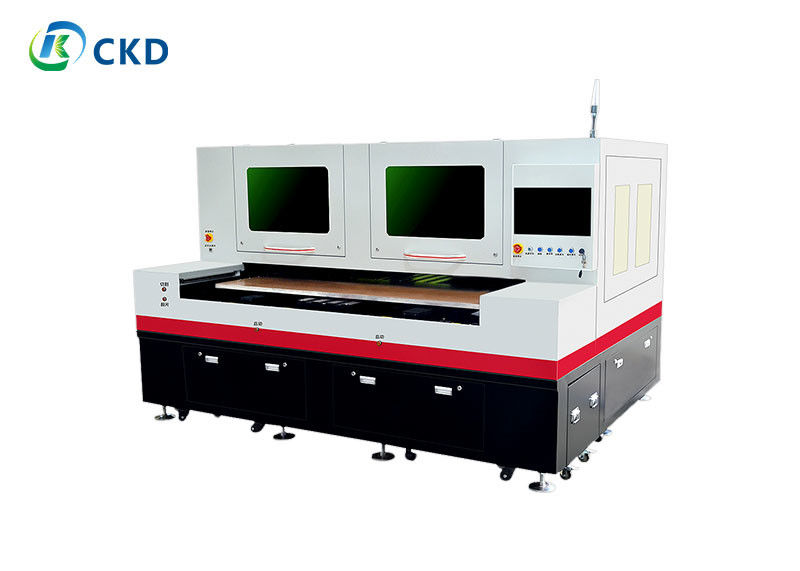

Large Size 80W Laser Glass Cutting Machine With Double Operation

Large Size 80W Laser Glass Cutting Machine With Double Operation

  • High Light

    Large Size Laser Glass Cutting Machine


    80W Laser Glass Cutting Machine

  • Name
    Fiber Laser Glass Cutting Machine
  • Cutting Speed
  • Cutting Thickness
  • Work Size
  • Accuracy
  • Chipping
  • Wavelength Coverage
  • Place of Origin
    Guangdong, China
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    30 Sets Per Month

Large Size 80W Laser Glass Cutting Machine With Double Operation


Large Size 80W Laser Glass Cutting Machine
With Double Operation


With the increasing demand for high-quality products from consumers, suppliers are compelled to impose more stringent requirements on the processing and manufacturing of brittle glass cover plates and screens. These requirements include enhanced cutting strength, minimized edge breakage, improved production efficiency, reduced costs, industry-leading technology, and other advanced processing specifications. However, traditional CNC machining methods suffer from issues such as cutting fluid pollution in the form of ring mirror contamination and tool wear during drilling. Moreover, these methods exhibit low processing efficiency and necessitate additional equipment, manpower, and larger workspaces – all contributing to elevated expenses. Our company's innovative non-taper picosecond laser cutting machine for brittle materials effectively addresses all these challenges simultaneously.


1 . The cutting efficiency is enhanced .

2 . reducing the number of cutting processes .

3 . The incision edge remains undamaged .

4 . ensuring environmental protection and energy saving without generating consumables .

5 . Additionally , high precision enables cutting of irregular shapes .


Significant Attribute
X/Y movement speed max. 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 10W/20W/40W/70W/80W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness according to the thickness of the glass to choose the number of laser W
Minimum cutting edge chipping 6um
X / Y cutting stroke 400mm x500mm (600X700mm 600X900 optional or customize a larger platform)
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um


Large Size 80W Laser Glass Cutting Machine With Double Operation 0


1 . The cutting efficiency is enhanced,
2 . Reducing the number of cutting processes
3 . The incision edge remains undamaged,
4 . Ensuring environmental protection and energy saving . without generating consumables.
5 . Additionally, high precision enables cutting of irregular shapes.
  Applied Materials
  Ultra-clear glass, plain white polymer,
  high borosilicate glass, quartz glass etc;
  Phone glass cover, car glass , camera glass cover etc;
  LCD screen,K9 glass, filter cutting, mirror cutting etc


Optic/UTG/Willow/Brittle/Biomedical Glass
Real Estate
Architectural decoration
Bathroom glass
Car glass/Instrumentation panel
Communication Media
Mobile/Watch sapphire cover
Camera/CCTV Lens
Home Appliance
Home appliance glass panel
Lighting glass
Photovoltaic glass


Large Size 80W Laser Glass Cutting Machine With Double Operation 1

Product description


1 . high stability : Our equipment is developed by the professional team of laser and automation industry for more than ten years, and the equipment design uses high-quality imported durable parts , and the long-term production of equipment is stable and reliable .

2 .  high cutting efficiency : master the underlying software optimization technology with high quality hardware, unit time can process more products.

3 . thick glass cutting : In the thick glass cutting by more experience , 21 years the country's first to achieve 15mm glass cutting , 2 years again to break through 19mm glass cutting

4 . can actually cut more kinds of glass : high borosilicate , sapphire , F green and other special glass can also achieve batch processing !





Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from

bao'an International airport to our factory.

Q2: How many years do you do this business?

A2: From 2008.

Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

       We can make customized products especially for you; Please kindly contact us for more details.

Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.


 If you have any questions, please feel free to contact us. We provide you with 24 hours and feedback higher performance, more cost-effective, better quality product consultation and after-sales service.
