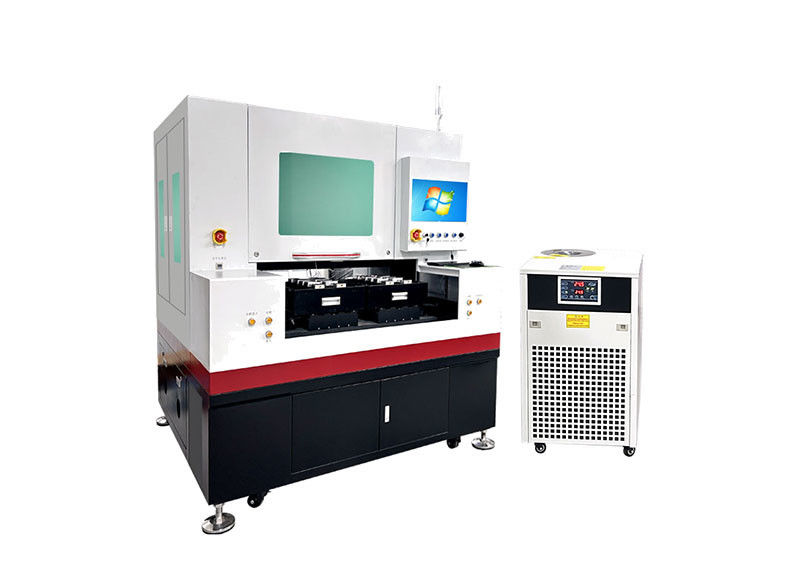

80W Dual Table Rearview Mirror Glass Cutting Machine With HTI Control System

80W Dual Table Rearview Mirror Glass Cutting Machine With HTI Control System

  • High Light

    80W Mirror Glass Cutting Machine


    Rearview Mirror Glass Cutting Machine


    Rearview Mirror Glass Cutting Equipment

  • Name
    Rearview Mirror Glass Cutting Machine
  • Material
    Rearview Mirror
  • Transmission System
    Rack And Pinion
  • Cutting Area
  • Cooling System
    Water Cooling
  • Working Environment
  • Working Frequency
  • Laser Power
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-30 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

80W Dual Table Rearview Mirror Glass Cutting Machine With HTI Control System

80W Dual-Table Rearview Mirror

Glass Cutting Machine With HTI Control System

Product Description:

Our Fiber Laser Cutting Machine is perfect for optical glass cutting, offering exceptional precision with its cutting accuracy of ±0.01mm. Our machine features a laser power of 30/50/60/80w, and is capable of ultra fast piecesecond speeds. It is powered by a reliable rack and pinion transmission system, making it suitable for industrial-level applications. With our optical glass Laser Cutting Machine, you can rest assured that you are receiving the highest quality product.

Our optical glass Laser Cutting Machine is designed for maximum efficiency and reliability. It is easy to install and requires minimal maintenance, making it a great choice for businesses of any size. Its advanced laser technology ensures that your projects are completed quickly and accurately, and its low-power consumption helps to reduce production costs. Our machine is also incredibly durable, allowing you to use it for years to come.


    Large-space operation area, wider field of vision and more freedom of operation
    Supports multi-language interaction to facilitate precise operation bycustomers
    LED red light source, see the cutting gap more clearly
    Comes with wiring instruction video, easy to learn and master

Technical Parameters:

Significant attribute
X/Y movement speed max . 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 30W / 50W / 75W / 80W / 90W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness
Minimum cutting edge chipping 6um
X / Y cutting stroke 200mm x 400mm
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um


80W Dual Table Rearview Mirror Glass Cutting Machine With HTI Control System 0



operation procedure

1 . Set cutting parameters

 According to the glass material and size to be cut, set the laser power, cutting speed, cutting depth and other parameters .
2 . Prepare the glass material

Place the glass material to be cut on the work table of the cutting machine and fix it .

3 . Positioning and alignment

Using the positioning system on the cutting machine, the glass material is precisely positioned and aligned to ensure that the cutting position is accurate .

4 . Start the cutting machine

Press the start button and the cutting machine starts to work.

5 . Laser cutting

The laser beam is emitted from the laser head of the cutting machine, and the high energy and peak power of the ultra-short pulse laser produce a local high energy density on the glass material through the nonlinear optical effect, so that the glass material is broken.

6 . CO2 cracks

After cutting, the transmission device is transmitted to the fragment table, and the high energy and high power of the CO2 laser are used to locally heat the glass material to a high temperature state, and then the glass material is cooled rapidly to make the fragment occur.

7 . Completion of cutting

When the cutting is complete, the conveyor will return the material to its original location.

8 . Cleaning and maintenance

Clean the table and laser head of the cutting machine to ensure the accuracy and stability of the next cutting. Regular maintenance and maintenance of the cutting machine to keep its normal operation.


It should be noted that there may be slight differences between different models of dual-platform laser glass cutting machines, and the specific operation process can be operated according to the user manual of the cutting machine. In addition, operators need to comply with the relevant safety regulations when performing cutting operations, wear personal protective equipment to ensure personal safety.

 80W Dual Table Rearview Mirror Glass Cutting Machine With HTI Control System 1


1. who are we?
We are based in Shenzhen, China, start from 2010,sell to Domestic Market(25.00%),Eastern Europe(19.00%),Western Europe(13.00%),Southeast Asia(12.00%),South Asia(6.00%),Eastern Asia(5.00%),North America(5.00%),Mid East(5.00%),South America(5.00%),Africa(4.00%),Oceania(1.00%). There are total about 100-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better
work environment. Except for the damaged parts, no parts need to be replaced.
4. Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
