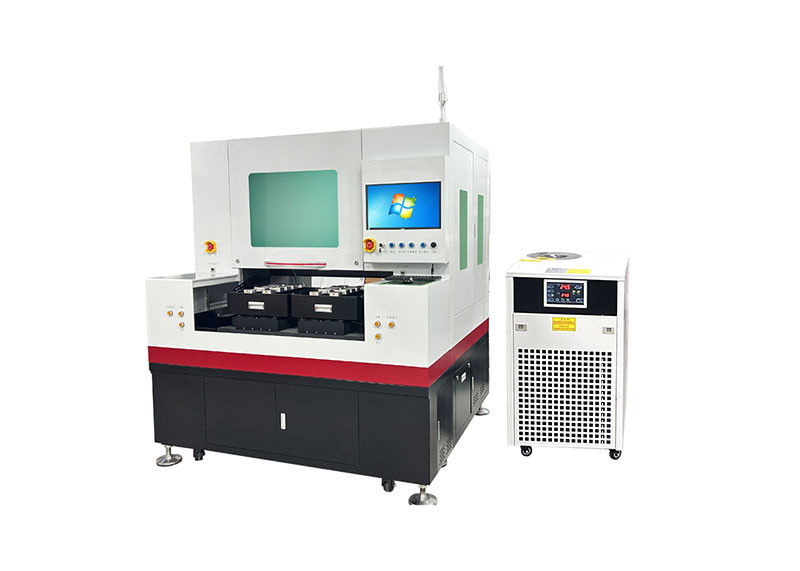

High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power

High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power

  • High Light

    Rearview Mirror Cutting Machine


    High Precision Mirror Cutting Machine

  • Name
    Laser Mirror Cutting Machine
  • Material
    Makeup Mirror
  • Cutting Size
  • Voltage
  • Processing Type
    Laser Cutting
  • Cutting Method
  • Weight
  • Dimension
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power

Glass Rearview Mirror Laser Cutting Machine

with High Precision and 3.5KW Motor Power


Product Description

The Glass Mirror Cutting Machine is a versatile and reliable cutting machine for processing glass materials. It is capable of cutting glass with a speed of 0-500mm/s and has a weight of 2000kg. This machine can cut various types of glass, such as Blind Spot Mirrors for Cars Cardboard and convex rearview mirror. It is an efficient and effective machine for all kinds of glass processing.


1 . High-precision cutting

Laser technology can achieve very fine cutting, and high-precision cutting can be carried out on the glass to ensure the accuracy of the size and shape of the cutting.

2 . Fast cutting speed


laser cutting speed is fast, can complete a large number of cutting tasks in a short time, improve production efficiency.

3 . Non-contact cutting

Laser cutting is a non-contact cutting technology that does not cause damage to the glass surface or leave cutting marks, maintaining the integrity and quality of the glass.

4 . Good cutting quality

Laser cutting can achieve smooth cutting edges without burrs or residues, improving cutting quality and aesthetics.

5 . Strong flexibility

The laser cutting machine can be cut according to various shapes and sizes as needed to adapt to different rearview mirror glass design needs.

6 . Easy operation

The operation of the laser cutting machine is relatively simple, just set the cutting parameters and place the glass to be cut, you can automatically complete the cutting process.


Technical Parameters

X/Y movement speed max. 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 10W/20W/40W/70W/80W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness according to the thickness of the glass to choose the number of laser W
Minimum cutting edge chipping 6um
X / Y cutting stroke 400mm x500mm (600X700mm 600X900 optional or customize a larger platform)
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um


High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power 0





CKD CC-GM6 Glass Mirror Cutting Machine is a versatile and reliable fiber laser cutting machine specially designed for convex rearview mirror cutting and blind spot mirrors for cars cardboard cutting. It is built with HTI control system for easy and efficient operation. The machine is made of high quality material and can provide stable performance while cutting glass material. It is equipped with voltage 220V/380V and weighs 2000kg.

This machine is capable of providing accurately cut glass mirror for many applications such as automobile industry, building and construction, furniture industry, home decoration, etc. It offers high cutting precision, fast speed, and superior quality. It can cut both thin and thick glass material with great accuracy and easy to use. It is also easy to maintain and can withstand heavy workload.

CKD CC-GM6 Glass Mirror Cutting Machine is available with minimum order quantity of 1 and price is negotiable. The delivery time is 15-45 days and payment terms are L/C, T/T. The packaging details are wooden box. The machine has a supply ability of 50 sets per month and it can be used for cutting processing.



Production Processes

1 .Preparation: Place the glass to be cut on the work table of the cutting machine, and ensure that the glass is fixed and stable.

2 . Set cutting  parameters: Set cutting parameters, including cutting shape, size, cutting speed, power, etc., by controlling the operating interface or software of the machine as required.

3 . Laser cutting: Start the laser cutting machine, the laser beam will be focused on the glass, according to the set parameters for cutting. The laser beam generates high heat on the glass, causing the glass material to undergo thermal fission, thus achieving cutting.

4 . Monitoring the cutting process: During the cutting process, the operator needs to monitor the cutting situation to ensure the quality and accuracy of the cutting. If necessary, it can be adjusted and amended according to the actual situation. Finish cutting: When the cutting is complete, stop the operation of the laser cutting machine. Remove the cut glass and carry out subsequent cleaning and processing.


High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power 1


Support and Services

Glass Mirror Cutting Machine Technical Support and Service

We provide comprehensive technical support and service for the Glass Mirror Cutting Machine. Our team of experienced professionals are available to assist you with any questions or concerns you may have regarding the installation, use, or maintenance of your machine.

Our technical support team is available via phone, email, or live chat to provide you with the answers you need. We also offer a range of tutorials, videos, and other resources to help you get the most out of your machine.

For maintenance and repairs, our certified technicians are available to come to your site and provide the necessary service. We also offer maintenance plans to help keep your machine running smoothly and efficiently.

If you have any questions or would like more information about our technical support and service for the Glass Mirror Cutting Machine, please contact us today.


Packing and Shipping

Packaging and Shipping for Glass Mirror Cutting Machine

The Glass Mirror Cutting Machine will be packaged in a box with bubble wrap and packaging peanuts for protection. After being packaged it will be shipped using a reliable and secure shipping service such as FedEx or UPS .


High Precision Rearview Mirror Cutting Machine With 3.5KW Motor Power 2



Q : Are you a factory or trading company?
A : We are a factory with 16 years experience
Q : Where is your factory located? How can I visit there?
A : Our factory is located in Duangdong Province ( Shenzhen ) , China.You can fly to Shenzhen /Guangzhou airport directly . All our clients ,
from home or abroad, are warmly welcome to visit us !
Q : How does your factory do regarding quality control ?
A : "Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained ISO, CE certificate .
Q : Do you give any discount ?
A : I'll surely try my best to help you get those by the best price and good service at the same time .
Q : I would like to ask you if it's possible to have my logo on the product .
A : We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra
service,so a little bit extra service fee is needed .
