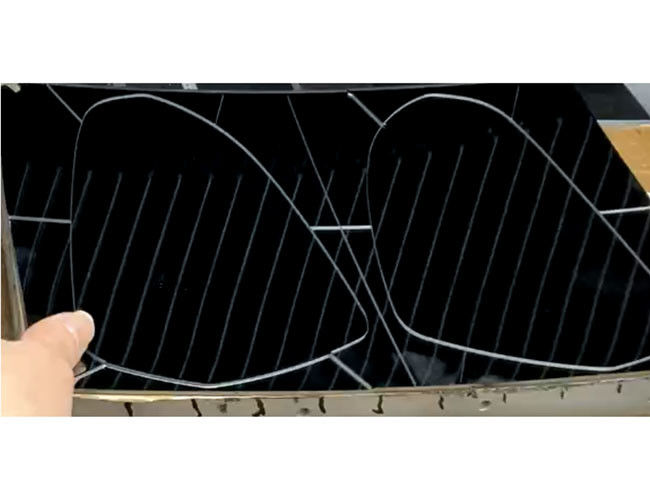

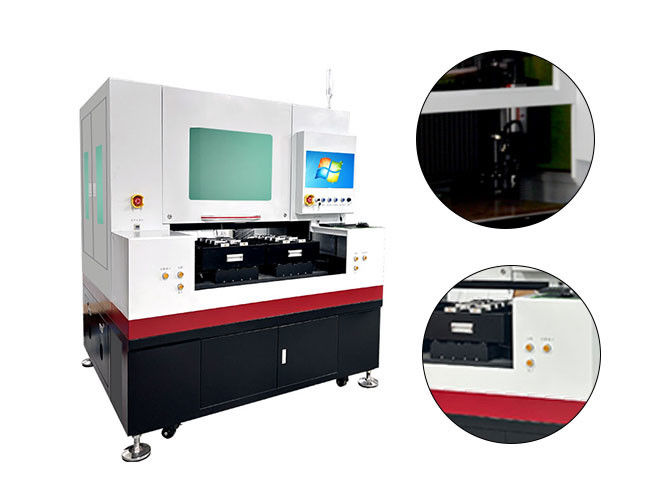

Supply Glass Laser cutting Machine
for Auto Parts Rearview Mirror
1. Picosecond processing uses small single pulse energy, high frequency processing, fine carving, processing surface is more fine and smooth . There are three power options: 30W, 50W and 80W.
2. 200*400mm working width issuitable for most cutting scenes .
| Significant Attribute | |
| X/Y movement speed | max. 500mm/s |
| Laser type | Infrared picosecond |
| Laser wavelength | 1064nm |
| Laser power | 10W/20W/40W/70W/80W optional |
| Pulse length | ≤10PS |
| Pulse frequency | 1Hz-1000kHz |
| Working mode | Laser XY moving |
| Cooling method | Water-cooled |
| Focusing mode | Cutting head |
| Focusing spot | ≤Ф3um |
| Cutting speed | Adjustable 0-500mm / s |
| Cutting thickness | according to the thickness of the glass to choose the number of laser W |
| Minimum cutting edge chipping | 6um |
| X / Y cutting stroke | 400mm x500mm (600X700mm 600X900 optional or customize a larger platform) |
| X/Y positioning accuracy | ≤±2μm |
| X/Y repeat positioning accuracy | ≤±1um |
Strengthened and non-strengthened glass cutting (mobile phone glass cover, car glass cover, camera glass cover, etc.),
sapphire glass cutting (mobile phone sapphire cover, camera sapphire glass cover, sapphire light bar (LED light bar), etc.), LCD
glass cutting (abnormal LCD screen inverted R/U/C angle, LCD screen slitting, etc.), other optical glass cutting (filter cutting,
mirror cutting, etc., prisms, etc.)
After placing an order, the delivery lead time is usually within 10 working days
1 . No Consumable , High precision cutting , Large space workbench
2 . Marble countertopConstant quality
The marble countertop has the characteristics of low linear expansioncoefficient, high hardness, and anti-magnetic
to ensure the stability of theaccuracy of the bed during high-speed operation, to ensure excellentworkpiece quality,
and to exert high dynamic power even on complex contours.
3 . Large-space operation area, wider field of vision and more freedom of operation
4 . Supports multi-language interaction to facilitate precise operation by customers
5 . LED red light source, see the cutting gap more clearly
6 . Comes with wiring instruction video, easy to learn and master
Warranty and after-sales service
Pre-sales services
*Inquiring and consulting support;
*Sample testing support;
*Visiting our factory;
After-sales services
*Engineers available to service machinery overseas;
*Training how to install and use the machine;
*Free parts;
Packing
Depends on different situation (weight, volume, country...), the shipping method could be different and its negotiable.
1 .What is the machine warranty and after sale service?
We will provide instruction videos and operation manuals to help you operate the machine. During covid19,
we can provide whatsapp videos and WeChat online videos teach you how to use the machine step by step.
The machine has 1 years of after-sales service. During the warranty period, if there is any quality problem
with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any
problem with the quality of the machine more than 1 years warranty, our after sales service team will help you
solve it within 8 hours.
2 . Is this machine has quickly-wear part?
Our products are sold all over the world, you can rest assured.
