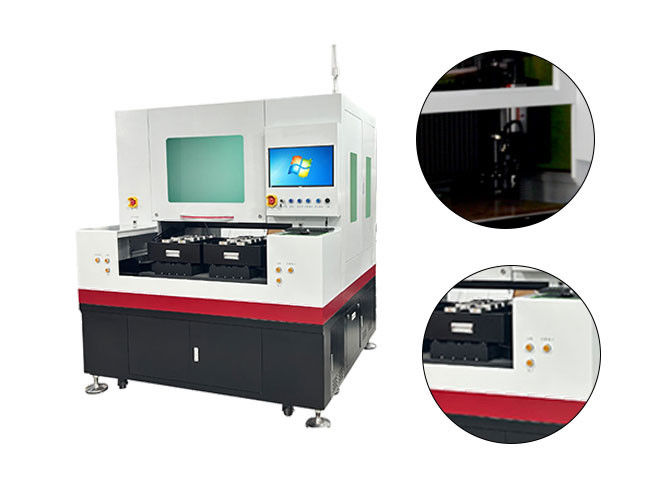

Infrared Picosecond Small Size Laser Cutting Machine 80W For Cars Cardboard

Infrared Picosecond Small Size Laser Cutting Machine 80W For Cars Cardboard

  • High Light

    Infrared Picosecond Small Size Laser Cutting Machine


    Small Size Laser Cutting Machine 80W

  • Name
    Laser Rearview Mirror Cutting Machine
  • Work Size
    26*40cm X 2
  • Accuracy
  • Thickness
  • Speed
  • Chipping
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    50 Sets Per Month

Infrared Picosecond Small Size Laser Cutting Machine 80W For Cars Cardboard

Small Size Laser Rearview Mirror Cutting Machine

For Blind Spot Mirrors For Cars Cardboard


1. Laser Cutting Head
Independently developed cutting head . It's been tested by us for a long time .


2. Laser Source
Raycus/Max/IPG/nLIGHT , multiple choice Different brands , different laser power are available . The higher power , the thicker cutting thickness .


3. Control System
We choose top brand laser control system Cypcut/Weihong,After further optimization by our engineers, the laser cutting efficiency can be increased by 30%


4. PLC Control System
Independent research and development of PLC control system, the error is less than 0.01s


Significant Attribute
X/Y movement speed max. 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 10W/20W/40W/70W/80W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness according to the thickness of the glass to choose the number of laser W
Minimum cutting edge chipping 6um
X / Y cutting stroke 400mm x500mm (600X700mm 600X900 optional or customize a larger platform)
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um

Infrared Picosecond Small Size Laser Cutting Machine 80W For Cars Cardboard 0


Machine scope


Strengthened and non-strengthened glass cutting (mobile phone glass cover, car glass cover, camera glass cover, etc.),

sapphire glass cutting (mobile phone sapphire cover, camera sapphire glass cover, sapphire light bar (LED light bar), etc.), LCD

glass cutting (abnormal LCD screen inverted R/U/C angle, LCD screen slitting, etc.), other optical glass cutting (filter cutting,

mirror cutting, etc., prisms, etc.)


After placing an order, the delivery lead time is usually within 10 working days




1 . No Consumable , High precision cutting , Large space workbench


2 . Marble countertopConstant quality

The marble countertop has the characteristics of low linear expansioncoefficient, high hardness, and anti-magnetic to ensure the stability of theaccuracy of the bed during high-speed operation, to ensure excellentworkpiece quality,


3 . Large-space operation area, wider field of vision and more freedom of operation


4 . Supports multi-language interaction to facilitate precise operation by customers


5 . LED red light source, see the cutting gap more clearly


6 . Comes with wiring instruction video, easy to learn and master


Warranty and after-sales service

1 . After-sales service: lifetime warranty, 24 hours after-sales technical support.
Warranty period: 1 year, replacement of other parts after 1 year can be purchased at factory cost.
2 . During the warranty period, if any part is damaged, we will provide you with new parts for free, and the freight
will be borne by us (you will never be required to return old parts, and some manufacturers will require customers
to return damaged parts)
3 . Even if your machine is out of warranty period, if you encounter any problems, you can
call our service center or contact your sales staff. We will help you solve the problem
within 12 hours. We have a team of after-sales engineers in English, Japanese, and
Russian, and we can provide support services that small factories cannot provide.

Infrared Picosecond Small Size Laser Cutting Machine 80W For Cars Cardboard 1



1. Non-strengthened glass: CO2 laser can be used to heat along the cutting line, sothat the glass will be heated to produce stress and separate the shards / after cutting,it will be strengthened twice to produce stress shards;

2. Tempered glass: After cutting, the self-strengthening stress is released and thesplinters are separated automatically;

3. LCD screen glass: mechanical pulling, firing pin split / ultrasonic split;4. Filter glass: mechanical knife lobes, etc.;5. Camera protection glass: laser cracking or soaking in chemical medicine, etc.
Whether the equipment needs a CO2 laser splitter, please contact ourcustomer service to confirm!






1 .What is the machine warranty and after sale service?

We will provide instruction videos and operation manuals to help you operate the machine. During covid19,

we can provide whatsapp videos and WeChat online videos teach you how to use the machine step by step.

The machine has 1 years of after-sales service. During the warranty period, if there is any quality problem

with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any

problem with the quality of the machine more than 1 years warranty, our after sales service team will help you

solve it within 8 hours.

2 . Is this machine has quickly-wear part?

The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better work
environment. Except for the damaged parts, no parts need to be replaced.
3 . Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe transportation.
We have exported to 180 countries worldwide. So transportation won't be problem for us and customers will
definitely receive products in good condition.
