Small Size Laser Cutting Machine 40W With 200X400mm Working Size

Small Size Laser Cutting Machine 40W With 200X400mm Working Size

  • High Light

    Small Size Laser Cutting Machine 40W


    40W Laser Cutting Machine Glass

  • Name
    Small Size Laser Cutting Machine
  • Work Size
  • Thickness
  • Speed
  • Chipping
  • Accuracy
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Sets Per Month

Small Size Laser Cutting Machine 40W With 200X400mm Working Size

Factory Cheap Price For Glass And Mirror Cutting Machine

With 200X400mm Working Size


hich is specially used for cutting rearview mirror glass. It uses laser beam to cut glass with high precision, and has the characteristics of fast cutting speed, high precision and easy operation.


Laser rearview mirror glass cutting machine is usually composed of laser generator, optical system, control system, cutting platform and other parts. The laser generator produces a high energy laser beam, which can be focused to a very small point after the optical system is focused, so as to achieve the cutting of the glass. The control system can adjust the cutting parameters according to the need to control the cutting speed and precision. The cutting platform is used to hold and move the glass to be cut.



  • Product Name: Laser Glass Cutting Machine
  • Cutting Area: 200mmx400mm
  • Laser Type: Optical glass coated glass
  • Key Selling Points: Ultra Fast Picesecond
  • Control System: HTI Control
  • Coated Glass Laser Cutting Machine
  • Fast and Reliable Machine


Significant Attribute
X/Y movement speed max. 500mm/s
Laser type Infrared picosecond
Laser wavelength 1064nm
Laser power 10W/20W/40W/70W/80W optional
Pulse length ≤10PS
Pulse frequency 1Hz-1000kHz
Working mode Laser XY moving
Cooling method Water-cooled
Focusing mode Cutting head
Focusing spot ≤Ф3um
Cutting speed Adjustable 0-500mm / s
Cutting thickness according to the thickness of the glass to choose the number of laser W
Minimum cutting edge chipping 6um
X / Y cutting stroke 200mm x500mm (customize a larger platform)
X/Y positioning accuracy ≤±2μm
X/Y repeat positioning accuracy ≤±1um

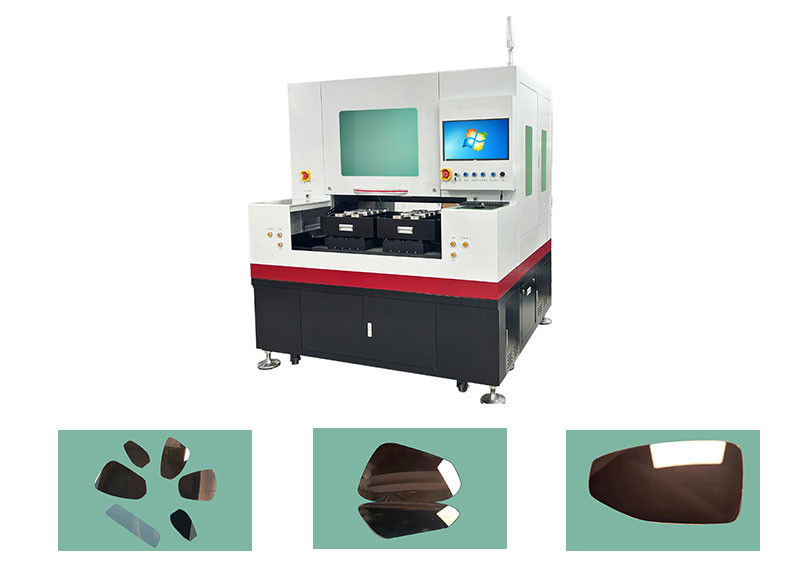

Small Size Laser Cutting Machine 40W With 200X400mm Working Size 0



1 . Non-strengthened glass: CO2 laser can be used to heat along the cutting line, sothat the glass will be heated to produce stress and separate the shards / after cutting , it will be strengthened twice to produce stress shards ;
2 . Tempered glass: After cutting , the self-strengthening stress is released and thesplinters are separated automatically ;
3 . LCD screen glass: mechanical pulling , firing pin split / ultrasonic split ;

4 . Filter glass: mechanical knife lobes, etc.;

5 . Camera protection glass: laser cracking or soaking in chemical medicine , etc.
Whether the equipment needs a CO2 laser splitter , please contact ourcustomer service to confirm !





Product laser automation equipment manufacturer . Our products include laser cutting machines , marking machines , laser welding machines, laser engraving machines and non-standard automation equipment.
Our company has a group of high-level optical, electronic and precision mechanical researchers, and has world-class optical and microelectronic test equipment , advanced quality , management system , improve the efficiency of the manufacturing test process, and create excellent quality .
Our commitment is to focus on product quality and customer service through research and continuous improvement of technical level, development, standardization, and scientific management.
has won a good reputation in Germany , the United States, Japan, the United Kingdom, Russia , Malaysia and other countries .
established a long-term friendly cooperative relationship with domestic laser research institutes . Over the years , our products have been exported to more than
one hundred countries and regions .

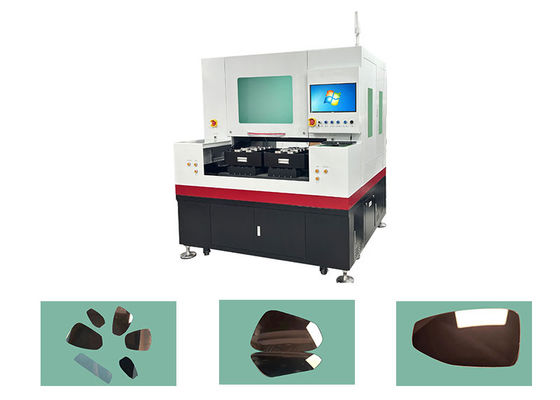

Small Size Laser Cutting Machine 40W With 200X400mm Working Size 1


Q1: Could I visit your factory?

A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from

bao'an International airport to our factory.

Q2: How many years do you do this business?

A2: From 2008.

Q3: Does your factory have the design & development capacities, we need customized products?

A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.

We can make customized products especially for you; Please kindly contact us for more details.

Q4: What is payment terms?

A4: 100% T/T advanced.

Q5: About shiping?

A5: 15-30 days after payment for standard products, please consult our sales for customized products.

Q6: How about your after service?

A6: Our engineers who has long time professional experience and sales will help you within 24h.

Q7: Do you have patents or core technology?

A7: Yes, for details, please contact our sales.

Q8: Where have you sold your products?

A8: Europe, Americas, Africa, and Asia.
