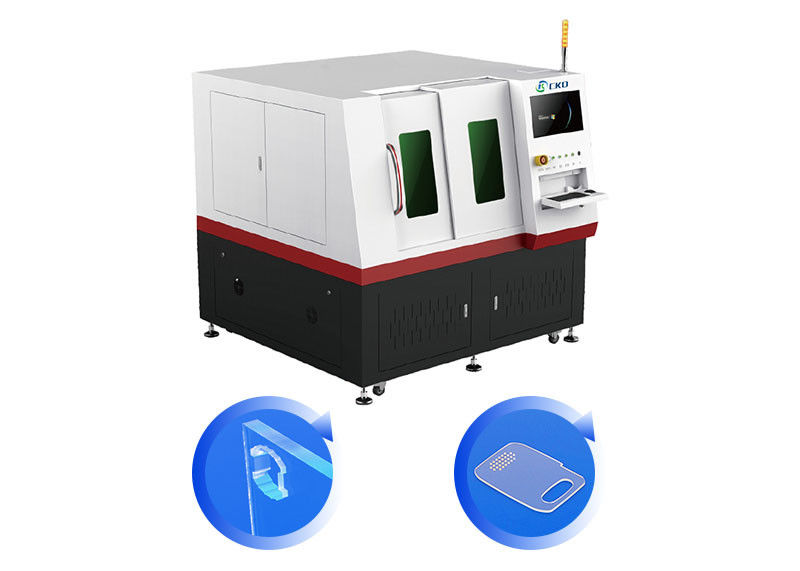

0-6000mm/s Green Nanosecond Laser Hole Drilling Machine Customized

0-6000mm/s Green Nanosecond Laser Hole Drilling Machine Customized

  • High Light

    6000mm/s Laser Hole Drilling Machine


    Green Nanosecond Laser Hole Drilling Machine

  • Product Name
    6000mm/s Laser Hole Drilling Machine
  • Position Accuracy
  • Pulse Energy
  • Pulse Width
  • Power Supply
  • Repetition Frequency
  • Dimension
  • Laser Beam Mode
    Green Nanosecond
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

0-6000mm/s Green Nanosecond Laser Hole Drilling Machine Customized

Glass Drilling Machine - Laser Drilling with Max Power 45W - Reliable Performance

Product Description:

The whole system is equipped with high performance servo, precision screw and precision guide closed loop control ensures stability and accuracy. It also uses high power pulse laser in order to cut the glass with small edge breakage and fast speed. It is more precise with help of high-precision galvanometer, telecentric lens, and its cutting stability brings the maximum close to no taper. There is also high negative pressure vacuum machine that can adsorb products to guarantee the position stability. This system is also equipped with automatic alignment CCD and visual lens for alignment cutting. It also enjoys a professional cutting software that is easy to learn and use to meet application needs.



Irregular, micro, through and countersunk holes, as well as tapered holes can all be processed without the use of any contact.

This type of processing offers minimum material damage and a high drilling accuracy with minimal or no chip formation.

This contactless processing requires no wastewater and helps maximize efficiency in production.


Technical Parameters:

Name Description
Cooling System Air Cooling
Working Area 600mm*800mm
Drilling Speed 0-6000mm/s
Laser Beam Mode Green Nanosecond
Laser Wavelength 1064nm
Dimension 1560mm*1750mm*1750mm
Max Laser Power 45W
Position Accuracy ±0.02mm
Repetition Frequency 20kHz
Weight 1500kg
Product Name YAG Laser Drilling Machine, Laser Hole Drilling Machine, Laser Micro Drilling Machine


0-6000mm/s Green Nanosecond Laser Hole Drilling Machine Customized 0


The application of ordinary glass, ultra white glass, K9 glass, stone British glass and high borosilicate glass is widely spread in household appliances, sanitary ware, decoration, technology, optics and construction industry, also in photovoltaic industry.

These kinds of glass products can be used in various kinds of situations, and they have gained much attention in recent years for their multiple benefits.



Customized Laser Drilling Machine

Brand Name: CKD
Model Number: CC-G1
Place of Origin: China
Certification: ISO/CE/FDI
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Wooden box
Delivery Time: 15-45 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Pulse Width: 20ns
Power Supply: 220V/50Hz
Laser Beam Mode: Green Nanosecond
Weight: 1500kg
Product Name: Laser Drilling Machine

  • Laser Micro Drilling Machine
  • Automatic Drilling Machine Laser
  • Laser Drilling Machine
0-6000mm/s Green Nanosecond Laser Hole Drilling Machine Customized 1

Support and Services:

Laser Drilling Machine Technical Support and Service

We provide technical support and service for our Laser Drilling Machine. Our team of engineers and technicians are dedicated to ensuring your Laser Drilling Machine is always operating at its best, and are available to assist you with any technical questions or requests you may have.

Our technical support and service includes:

  • Troubleshooting and diagnostics
  • Software and hardware updates
  • Inspection and maintenance
  • Replacement parts and components
  • Consultation and advice

If you have any questions or need assistance with your Laser Drilling Machine, please do not hesitate to contact us. Our team is always ready to help you get the most out of your machine.


Packing and Shipping:

Packaging and Shipping for Laser Drilling Machine:

The Laser Drilling Machine is packed in sturdy corrugated boxes for safe shipping. The package is sealed with plastic wrap to protect it from dust and moisture. The machine is then secured in the box with foam padding and bubble wrap to avoid any possible damage during transport.

The boxes are labeled with the product's name and contents. The markings also include instruction for the shipping company and include the customer's contact information in case of any issues.

The Laser Drilling Machine is shipped via a reliable shipping company to ensure its safe and timely arrival. The customer is notified when the product is shipped and is provided with tracking information.



1.What is the machine warranty and after sale service?
We will provide instruction videos and operation manuals to help you operate the machine. During covid19, we can provide whatsapp videos and WeChat online videos teach you how to use the machine step by step.
The machine has 1 years of after-sales service. During the warranty period, if there is any quality problem with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any problem with the quality of the machine more than 1 years warranty, our after sales service team will help you solve it within 8 hours.

2. Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better
work environment. Except for the damaged parts, no parts need to be replaced.

3. Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
