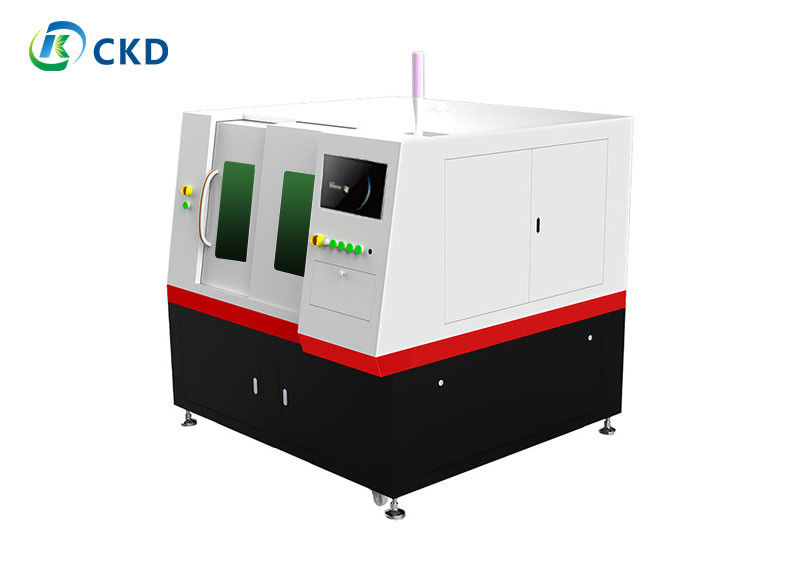

0-6000mm/s Laser Drilling Machine 45W with 2mJ Pulse Energy

0-6000mm/s Laser Drilling Machine 45W with 2mJ Pulse Energy

  • High Light

    6000mm/S Laser Drilling Machine


    Laser Drilling Machine 45W


    6000mm/S Laser Drilling Equipment

  • Name
    6000mm/S Laser Drilling Machine
  • Drilling Speed
  • Max Laser Power
  • Laser Beam Mode
    Green Nanosecond
  • Laser Wavelength
  • Repetition Frequency
  • Cooling System
    Air Cooling
  • Dimension
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

0-6000mm/s Laser Drilling Machine 45W with 2mJ Pulse Energy

Green Laser Drilling Machine With Nanosecond Laser Beam 2mJ Pulse Energy High Speed

Product Description:

For precision processing, we use a combination of high performance servo and precision screw & guide in a closed loop control. This ensures accuracy and stability of cuts, while faster speeds are achievable. A high power pulsed laser is used for cutting glass, introducing minimal chipping and breaks in the cut edge. Cutting contours are also kept to the highest level of accuracy with our telecentric lens. Additionally, to ensure proper placement prior to cutting, we use a high negative pressure vacuum machine to align products. For better alignment accuracy, we employ both automatic alignment CCD and visual lens. Additionally, a professional cutting software is included, making is simple for use to learn and meet all of your cutting application needs.


Irregular holes, micro holes, through holes and countersunk holes are all processes that require precision and accuracy when drilling. However, tapping can often be time-consuming and require extra work. To reduce time and labor, tapered holes are often suggested due to their quick and efficient nature.

When creating these holes, the process must be done with care. Non-contact processing is often recommended as it offers minimal material damage, leaving the finished product looking precise and professional. In addition to this, high drilling accuracy is essential, as it guarantees a smooth surface with minimal chipping.

The environment must also be taken into consideration. Traditional drilling techniques can produce large amounts of wastewater, which can be hazardous. Thankfully, the process of creating tapered holes is wastewater-free, making it an excellent choice for those looking to be environmentally conscious.


Technical Parameters:

Parameter Value
Power Supply 220V/50Hz
Repeatability ±0.01mm
Position Accuracy ±0.02mm
Drilling Speed 0-6000mm/s
Cooling System Air Cooling
Pulse Width 20ns
Max Laser Power 45W
Laser Beam Mode Green Nanosecond
Dimension 1560mm*1750mm*1750mm
Pulse Energy 2mJ


0-6000mm/s Laser Drilling Machine 45W with 2mJ Pulse Energy 0


Glass and ceramic products are hugely popular in many industries, including household appliances, sanitary ware, decoration, technology, optics and construction. Photovoltaic is also an important application field.

There are various kinds of materials available, such as ordinary glass, ultra white glass, K9 glass, stone British glass, and high borosilicate glass.




Our Laser Drilling Machine is an automatic drilling machine laser that is perfect for horizontal glass drilling. It is a YAG laser drilling machine with excellent repeatability of ±0.01mm and precision of ±0.02mm. It uses air cooling and 45W laser power to create perfect holes and is supplied with a wooden box packaging. It is certified with ISO/CE/FDI and the minimum order quantity is 1. The price and delivery time is negotiable and the supply ability is 50 sets per month.


Support and Services:

Laser Drilling Machine Technical Support and Service

Our technical support and service team is dedicated to providing the best support and service for your Laser Drilling Machine. Our team has the expertise and experience to help you get the most out of your machine. Our team is available 24/7 to help you with any questions or issues you may have.

We provide a range of services for your Laser Drilling Machine, including:

  • Installation and setup
  • Maintenance and repair
  • Upgrades and enhancements
  • Training and technical support
  • Troubleshooting and problem solving

Our team is committed to providing you with the best support and service experience possible. We are always available to answer any questions or concerns you may have.


Packing and Shipping:

Packaging and Shipping for Laser Drilling Machine:

  • The laser drilling machine will be securely packaged in a wooden crate.
  • The crate will be banded with metal bands to secure the crate and its contents.
  • The crate will be labeled with the product name, weight, and shipping address.
  • The crate will be lifted onto a truck for shipping.
  • The truck will deliver the Laser Drilling Machine to its destination.


Q1 : I don't know anything about this machine , what kind of machine should I choose?
Very easy to choose . Just tell us what you want to do with a picosecond glass cutter and let us provide you with the perfect solution and advice .
Q2 : When I got this machine , I didn't know how to use it. what do I do ?
We will send video and English manual to the machine . If you still have questions , we can chat by phone or via Skype and email .
Q3 : What should I do if the machine has a problem during the warranty period ?
If there is a problem with the machine, we will repair it for free during the machine warranty period . So if you have any questions , please let us know and we will provide you with a solution .
Q4 : Before asking me about our fiber lasers , you'd better provide me with the following information
1)  Your metal or non-metal material size . Because in our factory , we have different models according to the work area .
2)  Your material .
Metal/Acrylic/Plywood/MDF/Glass ?
3)  Do you want to engrave or cut ?

If cutting , can you tell me the thickness of your cut ? Because different cutting thicknesses require different laser tube power and laser power suppliers .
