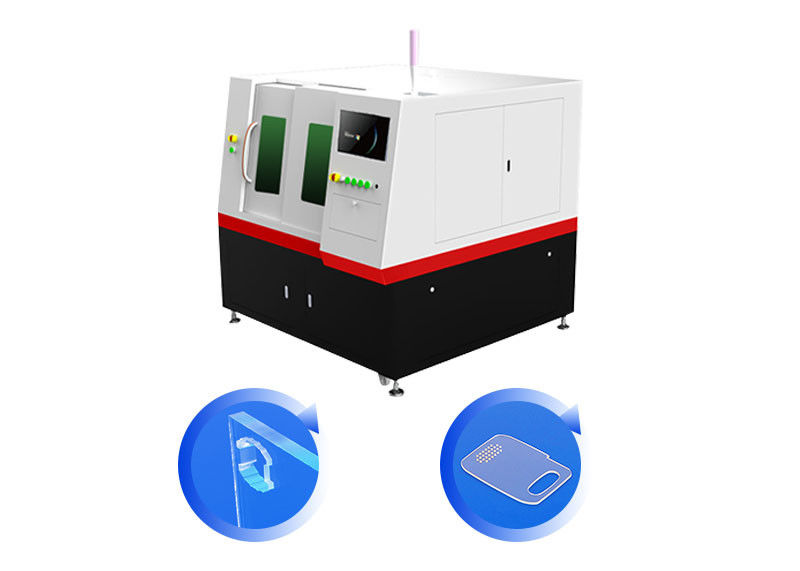

3 Axis Laser Drilling Machine

3 Axis Laser Drilling Machine

  • High Light

    3 Axis Laser Drilling Machine


    ISO Glass Laser Drilling Machine

  • Name
    Glass Laser Drilling Machine
  • MAX Work Size
  • Drilling Thickness
  • Drilling Diameter
  • Positioning Accuracy
  • Laser Power
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    30 Sets Per Month

3 Axis Laser Drilling Machine

3axis Fiber Laser Glass Drilling Machine

For Building Glass Processing


MOPA ( Master Oscillator Power Amplifier ) is a type of laser that produces a stable laser output and has high power and frequency modulation capabilities . This glass drilling machine can carry out accurate hole processing on glass materials through precision laser processing technology , which is suitable for glassware, glass crafts, glass panels and other fields. It has the advantages of high processing precision , fast speed , simple operation , etc ., and is widely used in glass processing industry .


1 . It can realize fine processing of glass materials, including micro-hole drilling .

2 . The instantaneous high energy laser pulse can quickly heat and evaporate the material , and can avoid the formation of heat affected zones .

3 . Can quickly complete the drilling task , improve production efficiency and save time cost .

4 . Drilling of different shapes and sizes can be carried out to achieve complex hole design and meet different processing needs .


Technical parameters
Laser type Green pulse laser
Laser power 10w , 30w , 45w
laser wavelength 532nm
laser pulse width 7ns@100KHz
Laser pulse frequency 50-500KHz
Work Size 800*800mm 800*1000mm
Drilling Thickness <20mm
Drilling Φ <Φ100mm
Positioning Accuracy ±0.02mm
Chipping ≤200μm
Positional accuracy ±3μm / ±5μm
Power AC220V±5%,L+N+E,<3KW
Dimension 1560mm × 1750mm × 1750mm / 1900mm ×1800mm × 1900mm
Weight 1500kg


3 Axis Laser Drilling Machine 0


Scope of application

Widely used in household appliances , sanitary ware , decoration, technology , optics , Drilling of glass and ceramic products in construction , photovoltaic and other industries . Specific materials : ordinary glass , ultra white glass , K9 glass , stone British glass, high borosilicate glass , etc


Optic/UTG/Willow/Brittle/Biomedical Glass
Real Estate

Architectural decoration bathroom glass

Car glass/Instrumentation panel
Communication Media
Mobile/Watch /Sapphire cover/ Camera/CCTV Lens
Home Appliance
Home appliance glass panel lighting glass
New Energy
Photovoltaic glass


Equipment advantage

Infrared MOPA glass drillers offer many advantages in the field of glass processing , including :

1 . High precision : The use of infrared laser technology can achieve high precision processing of glass materials to ensure that the size and shape of the hole meet the requirements .

2 . Automation : It can be combined with automated production lines to achieve automated production and improve production efficiency and product quality .

3 . High efficiency : laser processing speed is fast, can quickly complete glass drilling processing, improve production efficiency .

4 . Flexibility : Laser processing can be precisely controlled according to needs, and hole processing of different shapes and sizes can be achieved , with strong flexibility .

5 . Non-contact processing : Laser glass drilling is a non-contact glass processing technology that does not cause mechanical damage to the glass and can avoid cracks and debris.

1 . Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better work environment. Except for the damaged parts, no parts need to be replaced.
2 . Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe transportation . We have exported to 180 countries worldwide . So transportation won't be problem for us and customers will definitely receive products in good condition .
3 . I don't know anything about this machine, what kind of machine should I choose ?
Very easy to choose. Just tell us what you want to do with a picosecond glass cutter and let us provide you with the perfect solution and advice .
4 . When I got this machine, I didn't know how to use it. what do I do ?
We will send video and English manual to the machine. If you still have questions, we can chat by phone or via Skype and email .
