Field Of View Glass Drilling Machine With Coaxial Red Light And Len Power Supply

Product Description:

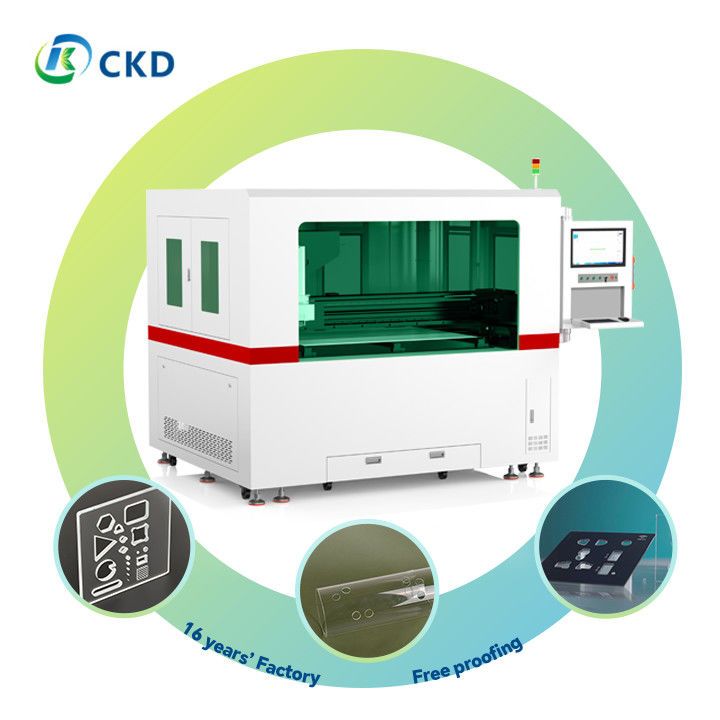

The Laser Drilling Machine features a coaxial red light field of view and a field lens for accurate positioning. The red light indication allows for quick and easy alignment, while the field lens provides a clear view of the drilling area for precise positioning. The positioning accuracy of this machine is ±0.02mm, ensuring that each hole is drilled exactly where it should be.

This laser hole drilling machine has a work size of 1300*900mm, making it ideal for drilling holes in large materials such as sheets of metal or glass. The horizontal glass drilling machine is designed to accommodate a wide range of materials and can be used for a variety of applications, including drilling holes in circuit boards, precision metal parts, and glass panels.

Overall, the Laser Drilling Machine is a powerful and versatile tool that can be used for a wide range of drilling applications. Whether you need to drill holes in metal, ceramics, or glass, this machine is up to the task. With its high-precision drilling capabilities, red light indication, and field lens, you can be sure that every hole is drilled exactly where it needs to be.

Features:

• Product Name: Laser Drilling Machine
• Model: CKD-EC1390-LDM120/ CKD-EC1390-LDM180
• Focusing Spot: <30 Times
• Repetition Frequency: 1-4000KHz
• Pulse Width: 6-100ns
• Positioning Accuracy: ±0.02mm
• Keywords: Glass drilling machine, laser hole drilling machine, yag laser drilling machine

Technical Parameters:

Applications:

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 laser drilling machine is perfect for use in many industries, including the aerospace, automotive, electronics, and medical industries. This laser micro drilling machine can be used for drilling holes in turbine blades, fuel injectors, and other precision components. It is also ideal for creating microchannels in medical devices and for producing microfluidic devices.

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 laser drilling machine has a high repetition frequency of 1-4000KHz, which makes it possible to drill holes quickly and accurately. It has a positioning accuracy of ±0.02mm, which ensures that the holes are drilled in the correct location. The equipment weight is less than 1500kg, making it easy to move and install.

This laser hole drilling machine is manufactured in China and has ISO, CE, and FDI certifications. The minimum order quantity is one, and the price is negotiable. The packaging details include a wooden box, and the delivery time is 15-45 days. Payment terms include L/C and T/T, and the supply ability is 50 sets per month.

In summary, the CKD-EC1390-LDM120/ CKD-EC1390-LDM180 laser drilling machine is a YAG laser drilling machine suitable for drilling small holes in various materials. It is perfect for use in the aerospace, automotive, electronics, and medical industries. It has a high repetition frequency and positioning accuracy, making it possible to drill holes quickly and accurately. The equipment is manufactured in China and has ISO, CE, and FDI certifications. The minimum order quantity is one, and the price is negotiable. The packaging details include a wooden box, and the delivery time is 15-45 days. Payment terms include L/C and T/T, and the supply ability is 50 sets per month.
