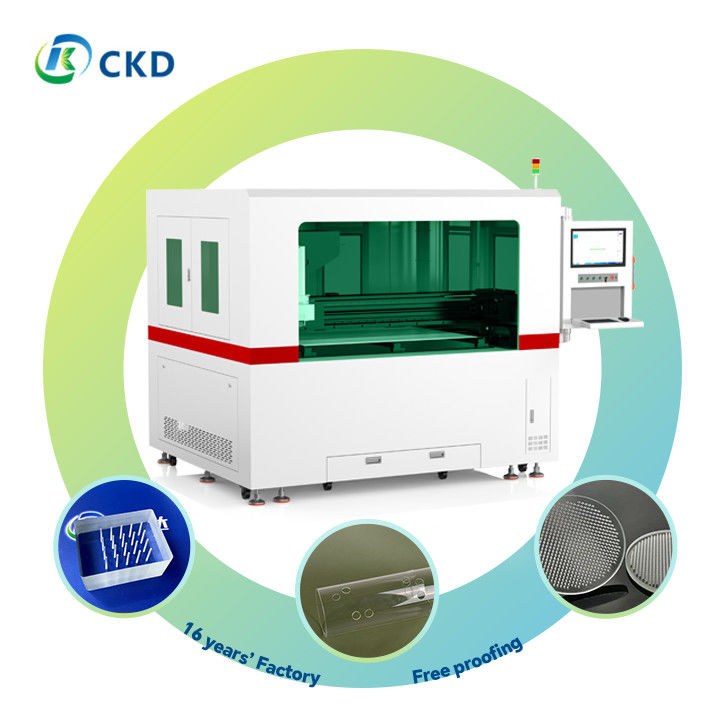

MOPA Pulse Laser Glass Drilling Machine / Laser Drilling Machine With High Floor Load Capacity

Product Description:

The motion system of the machine is a motion platform that is made from optical glass. This provides for smooth and precise movement of the laser head during the drilling process. Customized positioning accuracy of ±3μm + 5μm ensures that each hole is drilled with the utmost precision. The machine also features chipping of ≤200μm, making it suitable for even the most delicate of drilling applications.

The Laser Micro Drilling Machine is perfect for a variety of industries, including electronics, automotive, and medical. It is capable of drilling holes in a variety of materials, including glass, ceramics, and metals. The machine is easy to use and can be operated by anyone with basic training.

Whether you are looking for a glass drilling machine for your manufacturing process or need a YAG laser drilling machine for your research lab, the Laser Micro Drilling Machine is the perfect solution. With its advanced features and precise drilling capabilities, this machine is sure to meet all of your drilling needs.

Overall, the Laser Micro Drilling Machine is an excellent choice for anyone looking for a high-quality, reliable, and efficient drilling machine. Its advanced features and precise drilling capabilities make it ideal for a wide variety of applications.

Features:

• Product Name: Laser Drilling Machine
• Model: CKD-EC1390-LDM120/ CKD-EC1390-LDM180
• Laser Wavelength: 1064nm
• Customized Positioning Accuracy: ±3μm + 5μm
• Focusing Spot: <30 Times
• Cutting Thickness: <20mm

Keywords: yag laser drilling machine, laser micro drilling machine, portable glass drilling machine

Technical Parameters:

This table shows the technical parameters of the laser drilling machine for glass, also known as the glass hole drilling machine or laser hole drilling machine.

Applications:

The CKD Laser Drilling Machine is a high-quality product that is widely used in various industries. As a yag laser drilling machine, it is designed to drill holes in materials such as glass, ceramics, and metals with high precision and efficiency. The CKD-EC1390-LDM120 and CKD-EC1390-LDM180 models are both made in China and have obtained ISO, CE, and FDI certifications. With a minimum order quantity of 1 and a negotiated price, the CKD Laser Drilling Machine is available to businesses of all sizes.

The CKD Laser Drilling Machine is an essential tool for many businesses that require high-precision hole drilling. For example, in the electronics industry, the CKD Laser Drilling Machine is commonly used to drill holes in printed circuit boards, which are then used in smartphones, computers, and other electronic devices. In the automotive industry, the CKD Laser Drilling Machine is used to drill holes in engine components, such as fuel injectors and combustion chambers, to improve engine efficiency and performance.

The CKD Laser Drilling Machine is also used in the aerospace industry to drill holes in turbine blades, which are used in jet engines. These holes must be drilled with extreme precision to ensure that the turbine blades are balanced and can operate at high speeds without vibration. The CKD Laser Drilling Machine is also used in the medical industry to drill holes in dental implants and other medical devices.

The CKD Laser Drilling Machine has a repetition frequency of 1-4000KHz and features coaxial red light and a field lens for accurate positioning. The initial laser source is a MOPA pulse laser, which is highly efficient and has a long lifespan. The CKD Laser Drilling Machine requires a power supply of AC220V ±5%, L+N+E, and consumes less than 3KW of power. The CKD Laser Drilling Machine is shipped in a wooden box and has a delivery time of 15-45 days. Payment terms include L/C and T/T, and the machine has a supply ability of 50 sets per month.

Overall, the CKD Laser Drilling Machine is a reliable and versatile glass hole drilling machine that is suitable for a wide range of applications. With its high precision, efficiency, and durability, the CKD Laser Drilling Machine is an excellent investment for any business that requires high-quality hole drilling.
