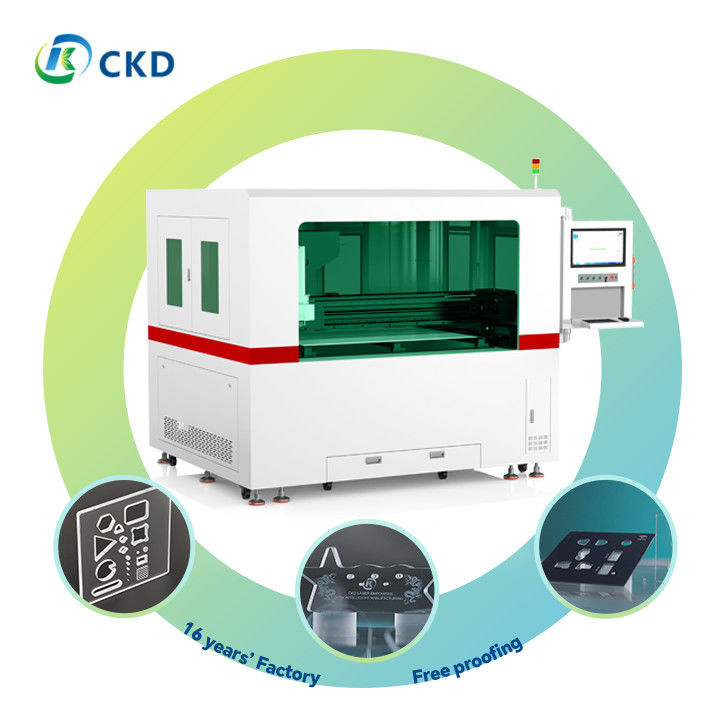

Customized Laser Glass Drilling Machine With ±3µm Positioning Accuracy

Product Description:

With a processing range of 600x700mm or 800x1000mm, this laser drilling machine is ideal for a wide range of applications, from smaller-scale projects to larger industrial applications. Additionally, the machine comes equipped with EZcad + 2D Drawing/2.5D Galvo Scanner for pattern generation, making it easy to create and execute complex designs.

Overall, the Infrared MOPA Laser Glass Drilling Machine is a top-of-the-line horizontal glass drilling machine that offers unparalleled precision and efficiency. Whether you're working with smaller-scale projects or larger industrial applications, this laser drilling machine is sure to meet all of your needs and exceed your expectations.

Features:

• Product Name: Laser Drilling Machine
• Model: CKD-EC1390-LDM120/ CKD-EC1390-LDM180
• Focusing Depth: 250~450um
• Laser Wavelength: 1064nm
• Cutting Thickness: <20mm
• Chipping: ≤200μm
• Features:
  • Laser micro drilling machine
  • YAG laser drilling machine
  • Automatic drilling machine laser

Technical Parameters:

Applications:

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine is perfect for a variety of application occasions and scenarios. Whether you are in the aerospace industry, electronics industry, or medical industry, this equipment will meet your needs. With a focusing depth of 250-450um and pulse width of 6-100ns, this laser hole drilling machine is perfect for drilling small holes in glass. The work size of 1300*900mm allows for a larger surface area and the Infrared MOPA laser technology ensures accuracy and precision in every hole drilled.

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine is a must-have for any business that requires laser micro drilling. The equipment dimensions are length 1900mm X width 1800mm X height 1900mm, making it a perfect fit for any workspace. Whether you need to drill holes in glass for medical equipment or fine electronics, this glass drilling machine will work perfectly.
