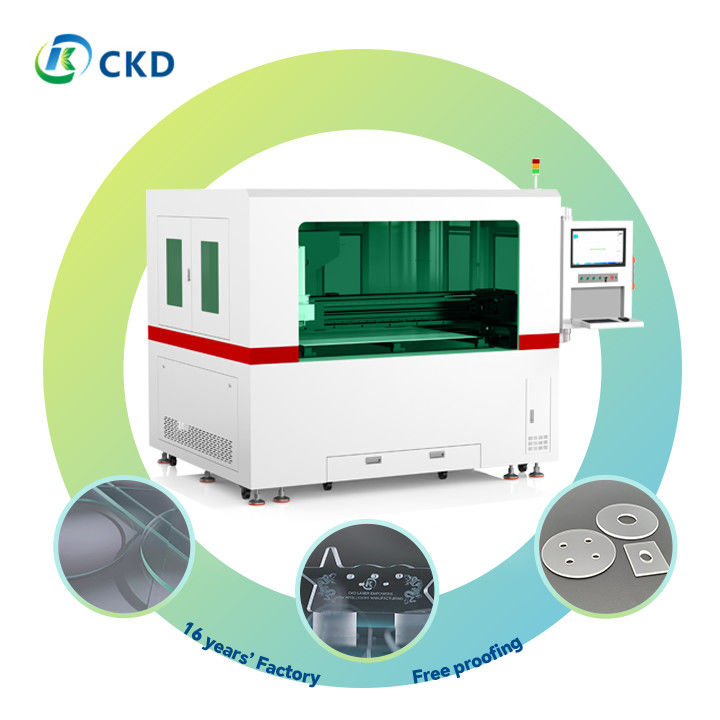

Adjustable Speed Glass Drilling Machine with Red Light Indication and Coaxial Field Lens

Product Description:

The Laser Drilling Machine has a large floor load capacity of over 500Kg/m², making it suitable for heavy-duty applications. The machine is capable of drilling holes with a thickness of less than 20mm, making it ideal for applications that require precision drilling.

The Laser Drilling Machine is the perfect glass hole drilling machine for various industrial applications. It is widely used in the manufacturing of electronic components, automotive glass, and other glass materials. The machine's advanced features and capabilities make it an excellent choice for industries that require high-precision drilling operations.

The Laser Drilling Machine is designed to provide high-precision drilling operations with minimal human intervention. The machine's advanced features include an automatic drilling machine laser, which allows for easy and efficient drilling of glass surfaces. The machine's processing range is available in two sizes, 600x700mm and 800x1000mm, making it suitable for different application requirements.

The Laser Drilling Machine is an excellent choice for industries that require high-precision drilling operations. Its advanced features and capabilities make it the ideal laser hole drilling machine for various applications. The machine's precision and efficiency make it an excellent investment for any industry looking to improve its production processes and increase productivity.

Features:

• Product Name: Laser Drilling Machine
• Pattern Generation: Includes EZcad + 2D Drawing / 2.5D Galvo Scanner
• Floor Load Capacity: >500Kg/m²
• Initial Laser Source: MOPA Pulse Laser
• Repetition Frequency: 1-4000KHz
• Chipping: ≤200μm

This horizontal glass drilling machine is perfect for your needs. It is a glass drilling machine portable and the laser micro drilling machine includes various features such as EZcad + 2D Drawing / 2.5D Galvo Scanner, MOPA Pulse Laser, and a repetition frequency of 1-4000KHz. Additionally, this machine has a floor load capacity of >500Kg/m² and chipping of ≤200μm for precise drilling.

Technical Parameters:

Applications:

The CKD Laser Drilling Machine is available in two models: CKD-EC1390-LDM120 and CKD-EC1390-LDM180. It is manufactured in China with ISO/CE/FDI certifications to guarantee its quality and reliability. The minimum order quantity is 1, and the price is negotiable. The packaging details include a wooden box, and the delivery time is between 15-45 days. Payment terms accepted are L/C and T/T, and the supply ability is 50 sets per month.

The CKD Laser Drilling Machine is a floor-mounted machine with a floor load capacity of over 500Kg/m². It is capable of drilling holes of various shapes and sizes, making it ideal for use in different applications. The machine is equipped with coaxial red light and a field lens for accurate positioning. The customized positioning accuracy is ±3μm + 5μm.

The CKD Laser Drilling Machine supports various image file formats such as .plt, .dxf, and .dwg. This feature makes it easy to use for different applications. Whether you are using the laser glass drilling machine for electronic components or the laser micro drilling machine for medical implants, the CKD Laser Drilling Machine can handle it all.

The CKD Laser Drilling Machine is a heavy-duty machine with an equipment weight of less than 1500Kg. It is easy to operate and maintain, making it a reliable and efficient glass hole drilling machine for your business needs.
