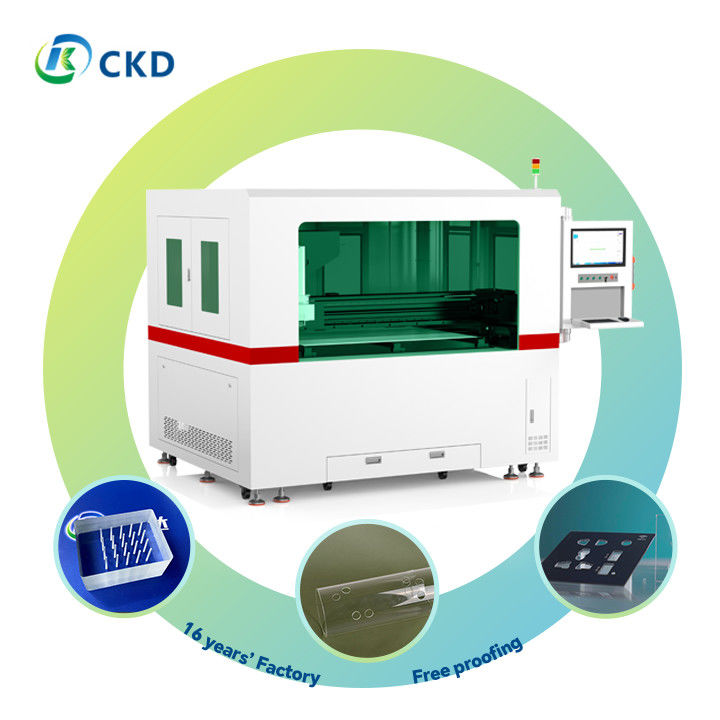

Customized Positioning Laser Glass Drilling Machine with Focusing Depth 250-450um

Product Description:

The Laser Drilling Machine uses a MOPA Pulse Laser for its initial laser source, which provides exceptional performance and high-quality results. The laser has a wavelength of 1064nm, which is perfect for drilling applications. The machine's repetition frequency ranges from 1-4000KHz, making it suitable for a wide range of industrial applications.

The Laser Drilling Machine is also compatible with various image file formats such as .plt, .dxf, .dwg, and others. This feature makes the machine versatile and easy to use in industrial applications.

The Laser Drilling Machine is a powerful and efficient tool that is ideal for drilling holes with high precision in various materials such as metals, ceramics, and others. This machine is perfect for industries that require high-precision drilling applications such as aerospace, medical, and automotive industries.

Overall, the Laser Drilling Machine is an exceptional automatic drilling machine laser that provides high accuracy, efficiency, and quality results for various industrial applications.

Features:

• Product Name: Laser Drilling Machine
• Repetition Frequency: 1-4000KHz
• Focusing Depth: 250~450um
• Pulse Width: 6-100ns
• Positioning Accuracy: ±0.02mm
• Chipping: ≤200μm
• Keywords: yag laser drilling machine, laser glass drilling machine, yag laser drilling machine

Technical Parameters:

Applications:

The CKD-EC1390-LDM120/CKD-EC1390-LDM180 laser drilling machine is suitable for laser drilling in various materials, and it is especially suitable for laser drilling in glass. The machine is equipped with an MOPA pulse laser as the initial laser source, which ensures high precision and stability. The laser power of the machine is 100W, and the focusing spot is less than 30 times, which greatly improves the drilling accuracy and efficiency. The positioning accuracy of the machine is ±0.02mm, which ensures the precise positioning of the drilling point. The drilling diameter is less than 100mm, which meets the drilling requirements of most materials.

The CKD-EC1390-LDM120/CKD-EC1390-LDM180 laser drilling machine is widely used in many application occasions and scenarios. For example, it can be used for laser drilling in glass, such as drilling holes, cutting shapes, and making patterns. The machine is also suitable for laser micro drilling, such as drilling small holes in electronic components. In addition, the CKD-EC1390-LDM120/CKD-EC1390-LDM180 laser drilling machine can be used for drilling holes in metal materials, ceramics, and other materials.

The CKD-EC1390-LDM120/CKD-EC1390-LDM180 laser drilling machine is packed in wooden boxes for safe transportation. The delivery time of the machine is 15-45 days, depending on the order quantity and destination. The payment terms can be L/C or T/T, which are flexible and convenient for customers. The supply ability of the machine is 50 sets per month, which ensures the timely delivery of the machine to customers.
