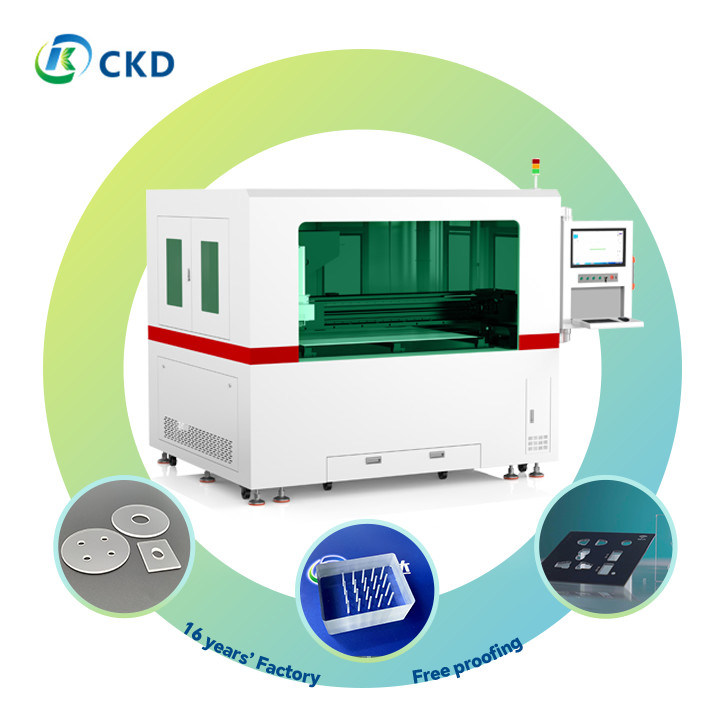

Infrared 100W MOPA Laser Glass Drilling Machine With Adjustable 0-600mm/s Cutting Speed

Product Description:

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 models come with a repetition frequency of 1-4000KHz, allowing for fast and efficient drilling. The machine has a highly accurate positioning accuracy of ±0.02mm, ensuring that the holes drilled are precise and accurate.

The laser drilling machine uses a water cooling method to regulate the temperature and prevent overheating, ensuring that the machine operates smoothly and efficiently.

Overall, the laser drilling machine is an excellent choice for those looking for a reliable and efficient laser glass drilling machine. With its high accuracy and fast drilling speed, it is perfect for a variety of industrial applications, including electronics, automotive, and aerospace.

Features:

• Product Name: Laser Drilling Machine
• Laser Wavelength: 1064nm
• Initial Laser Source: MOPA Pulse Laser
• Drilling Diameter: <100mm
• Focusing Spot: <30 Times
• Motion System: Motion Platform / Optical Glass

This laser drilling machine for glass is perfect for precision drilling in a variety of industries. Its laser wavelength of 1064nm and initial laser source of MOPA pulse laser ensure accurate and efficient drilling. With a drilling diameter of less than 100mm and a focusing spot of less than 30 times, this laser micro drilling machine can handle even the most delicate and intricate projects. The motion system features a motion platform and optical glass for smooth and precise movement. Choose this glass drilling machine for all your drilling needs.

Technical Parameters:

Applications:

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 is an infrared MOPA laser glass drilling machine that can perform laser micro drilling with a repetition frequency of 1-4000KHz. The equipment dimensions are length 1900mm X Width 1800mm X Height 1900mm, and the processing range is 600x700mm, 800x1000mm. The motion system comprises a motion platform and optical glass.

One of the main applications of this glass hole drilling machine is in the production of glass products, such as glass tubes, glass rods, and glass plates. With the CKD-EC1390-LDM120 / CKD-EC1390-LDM180, businesses can achieve high precision and accuracy in drilling holes in glass products, resulting in a higher quality end product.

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine can also be used in the electronics industry, particularly in the production of printed circuit boards (PCBs). The machine's high-speed laser drilling capabilities allow for quick and precise drilling of small holes in PCBs, which is essential for the production of high-quality electronic products.

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine is also suitable for use in the automotive industry, where it can be used to drill holes in metal parts, such as engine components and transmission parts. The machine's high precision and accuracy make it an ideal choice for businesses that require precise drilling in the production of automotive parts.

Other industries that can benefit from the CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine include aerospace, medical, and jewelry. With its ability to perform high-precision drilling and cutting, this machine can help businesses in these industries produce high-quality products that meet the strictest standards.

The CKD-EC1390-LDM120 / CKD-EC1390-LDM180 laser drilling machine is ISO/CE/FDI certified, ensuring that it meets the highest standards of quality and safety. The minimum order quantity is one, and the price is negotiable. The machine is packaged in a wooden box and has a delivery time of 15-45 days. Payment terms are L/C and T/T, and the supply ability is 50 sets per month.
