2D Pattern Generating 100W Laser Drilling Machine With Over 500Kg Load Capacity

2D Pattern Generating 100W Laser Drilling Machine With Over 500Kg Load Capacity

  • Highlight

    2D Pattern Generating Laser Drilling Machine

    ,

    500Kg Load Capacity Laser Drilling Machine

    ,

    100W Laser Drilling Machine

  • Work Size
    1300*900mm
  • Laser Power
    100W
  • Floor Load Capacity
    >500Kg/m²
  • Processing Range
    600x700mm, 800x1000mm
  • Cutting Speed
    0~600mm/s Adjustable
  • Chipping
    ≤200μm
  • Initial Laser Source
    MOPA Pulse Laser
  • Drilling Diameter
    <100mm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO/CE/FDI
  • Model Number
    CKD-EC1390-LDM120 / CKD-EC1390-LDM180
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

2D Pattern Generating 100W Laser Drilling Machine With Over 500Kg Load Capacity

Product Description:

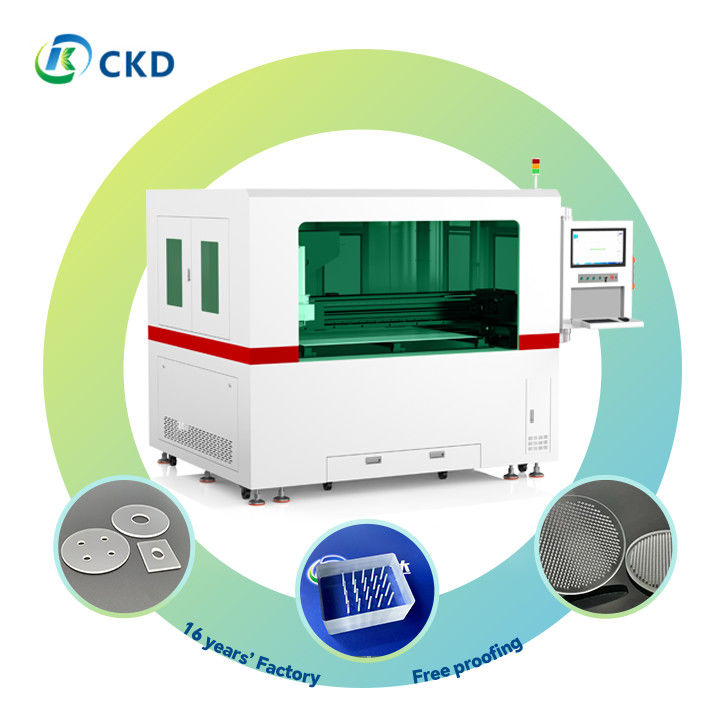

2D Pattern Generating 100W Laser Drilling Machine With Over 500Kg Load Capacity 0

The laser drilling machine features a coaxial red light field of view, which provides users with a clear indication of the drilling area. The field lens ensures that the laser is focused precisely on the drilling location, which results in clean, accurate holes every time. Additionally, the laser drilling machine has a focusing spot of less than 30 times and a focusing depth of 250~450um, making it ideal for drilling small holes in glass substrates.

One of the standout features of the Infrared MOPA Laser Glass Drilling Machine is its versatility. The machine can easily drill holes in a variety of materials, including glass, ceramics, and even metals. This makes it an essential tool for researchers and manufacturers who work with a wide range of materials.

Another advantage of this YAG laser drilling machine is its ease of use. The user-friendly interface allows operators to quickly and easily program the machine for their specific drilling needs. The machine also features a compact design that makes it easy to move and store, making it an excellent choice for labs and small manufacturing facilities.

Overall, the Infrared MOPA Laser Glass Drilling Machine is a top-of-the-line glass drilling machine that offers exceptional precision, accuracy, and versatility. Whether you're working with glass substrates, ceramics, or metals, this YAG laser drilling machine is sure to meet your needs.



Features:

  • Product Name: Laser Drilling Machine
  • Power Supply: AC220V ±5%, L+N+E, <3KW
  • Equipment Dimensions: Length 1900mm X Width 1800mm X Height 1900mm
  • Motion System: Motion Platform / Optical Glass
  • Laser Power: 100W
  • Chipping: ≤200μm

This product is a glass hole drilling machine designed for portability and ease of use. Its compact size and motion platform/optical glass motion system make it perfect for drilling precise holes in glass materials. With a laser power of 100W, it can easily handle tough jobs while still producing clean and accurate results with chipping limited to ≤200μm.



Technical Parameters:

Work Size 1300*900mm
Focusing Depth 250~450um
Processing Range 600x700mm, 800x1000mm
Cutting Speed 0~600mm/s Adjustable
Chipping ≤200μm
Model CKD-EC1390-LDM120/ CKD-EC1390-LDM180
Customized Positioning Accuracy ±3μm + 5μm
Repetition Frequency 1-4000KHz
File Formats Various Image File Formats Such As .plt, .dxf, .dwg
Focusing Spot <30 Times

Our laser drilling machine for glass is available in two models: CKD-EC1390-LDM120 and CKD-EC1390-LDM180. It is a portable and automatic drilling machine laser that can achieve a customized positioning accuracy of ±3μm + 5μm. The machine has a processing range of 600x700mm or 800x1000mm, and a cutting speed that is adjustable from 0~600mm/s. It can produce chipping of ≤200μm, and has a repetition frequency of 1-4000KHz. The laser drilling machine supports various image file formats such as .plt, .dxf, and .dwg, and has a focusing depth of 250~450um with a focusing spot of less than 30 times.



Applications:

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 laser micro drilling machine is made in China and is certified by ISO/CE/FDI, ensuring that it is made with high standards and quality materials. With a minimum order quantity of 1 and negotiable price, it is accessible to businesses of all sizes. The machine is packaged in a wooden box to protect it during transportation, and delivery time is estimated at 15-45 days after payment. Payment options include L/C and T/T. The machine is also available in a supply of 50 sets per month.

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 portable glass drilling machine is perfect for drilling holes in glass. The motion system of the machine is supported by a motion platform and an optical glass, making it easier to drill holes with precision. With a drilling diameter of less than 100mm, it can drill small holes in materials with precision and accuracy. The pulse width of 6-100ns and cutting speed of 0~600mm/s adjustable make it easier to control the drilling process.

The CKD-EC1390-LDM120/ CKD-EC1390-LDM180 glass hole drilling machine can be used in various applications such as electronics, medical equipment, solar panels, and automotive parts. It is perfect for drilling holes in small and delicate materials that require precision and accuracy. The machine is designed to be user-friendly, making it easy to use for beginners and professionals alike.
