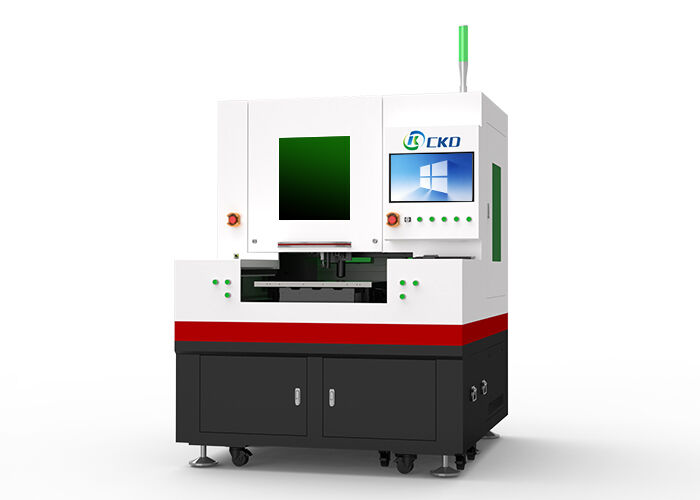

Laser Glass Cutting Machine designed to reduce material waste and improve yield through optimized cutting path algorithms

Product Description:

The Laser Glass Cutting Machine is an advanced optical glass laser cutting machine designed to deliver precision, efficiency, and versatility in glass processing applications. Engineered with cutting-edge technology, this machine offers superior performance for industries requiring high-quality glass cutting solutions, including stained glass production, architectural glass fabrication, and industrial glass manufacturing. The Laser Glass Cutting Machine stands out as an indispensable tool for both large-scale operations and specialized custom work due to its robust features and user-friendly controls.

One of the prominent highlights of this machine is its impressive acceleration capability of 1G. This ensures smooth and rapid movements during the cutting process, significantly reducing cycle times and enhancing overall productivity. The machine’s acceleration allows for quick and precise positioning of the laser head, which is essential when working with delicate optical glass materials or intricate stained glass patterns. This feature helps maintain the integrity of the glass, minimizing the risk of cracks or imperfections caused by mechanical stress.

Weighing in at 3500kg, the Laser Glass Cutting Machine is built with a solid and stable frame that guarantees durability and vibration resistance. This substantial weight contributes to the machine’s stability during high-speed cutting operations, ensuring consistent accuracy and repeatability. The robust construction also allows the machine to handle larger sheets of glass with ease, making it suitable for a wide range of glass sizes and thicknesses.

The cutting speed of the machine is highly adjustable, ranging from 0 to 500mm/s. This wide speed range offers exceptional flexibility to accommodate various glass types and cutting requirements. Whether it’s a delicate optical glass that demands slower, more controlled cutting or thicker stained glass that can withstand faster processing, the machine can be finely tuned to optimize cutting quality and efficiency. The adjustable cutting speed also helps in reducing material waste and enhancing edge quality, resulting in cleaner cuts and less post-processing.

Operating at a working frequency of 50HZ or 60HZ, the Laser Glass Cutting Machine is compatible with global electrical standards, ensuring reliable performance across different regions. This dual-frequency capability makes the machine highly adaptable and convenient for international customers, eliminating the need for additional modifications or converters. The consistent frequency operation supports stable laser output, which is crucial for achieving precise and uniform cuts on sensitive glass surfaces.

The machine incorporates an advanced water cooling system, which plays a vital role in maintaining optimal operating temperatures during extended cutting sessions. Efficient cooling prevents overheating of the laser source and associated components, thereby prolonging the machine’s lifespan and reducing maintenance requirements. The water cooling system also helps stabilize the laser beam quality, contributing to consistent cutting results and minimizing thermal damage to the glass material.

This Fiber Laser Cutting Machine variant specifically enhances cutting accuracy and speed by utilizing fiber laser technology, known for its high beam quality and energy efficiency. Fiber lasers provide superior focus and penetration capabilities, enabling the machine to cut through various types of glass with exceptional precision. Additionally, the fiber laser source requires less maintenance compared to traditional CO2 lasers, making it a cost-effective and reliable solution for continuous glass cutting operations.

In summary, the Laser Glass Cutting Machine is a versatile and high-performance stained glass cutting machine that combines powerful acceleration, sturdy build, adjustable cutting speeds, and advanced cooling technology to meet the demanding needs of modern glass processing industries. Whether you are working with delicate optical glass or decorative stained glass, this fiber laser cutting machine ensures precise, clean cuts with minimal material waste and maximum operational efficiency. Its global compatibility and durable design make it an excellent investment for businesses looking to enhance their glass cutting capabilities and maintain a competitive edge in the market.

Features:

• Product Name: Laser Glass Cutting Machine
• Wavelength: 1064nm
• Splitting Laser Source: RFC02 (Radio Frequency CO2) - 10.6μm 150W, with optional power upgrades to 250W or 350W
• Pulse Frequency of Splitting Laser Source: Adjustable from 1 to 100kHz
• Cutting Speed: Adjustable from 0 to 500mm/s for precise control
• Cooling System: Water cooling to ensure optimal laser performance and machine longevity
• Mobility: Equipped with heavy-duty wheels for easy movement and repositioning, featuring locking mechanisms for stability
• Suitable for environmental protection glass laser cutting machine applications
• Ideal for cutting colored glass and stained glass with high precision
• Designed for efficiency and versatility in various glass cutting tasks

Technical Parameters:

Applications:

The CKD Laser Glass Cutting Machine series, including models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070D-50E, CKD-DP6070D-60E, CKD-SP6070S-50E, CKD-SP6070S-60E, and others, is a highly versatile and reliable solution for various glass cutting applications. Manufactured in China and certified with ISO and CE standards, this series offers exceptional quality and performance to meet diverse industrial needs.

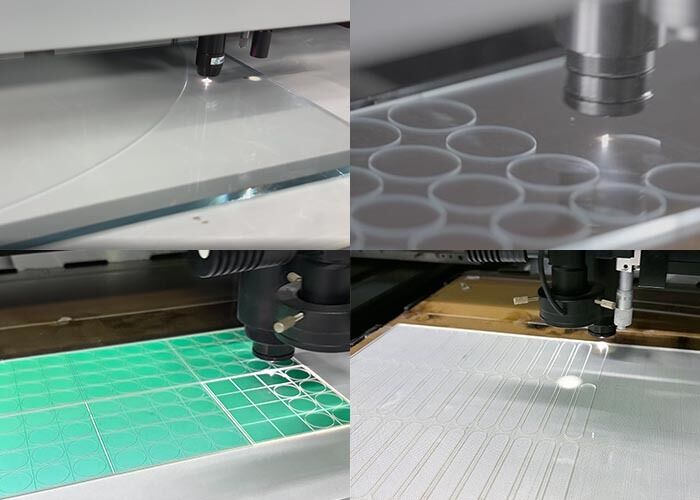

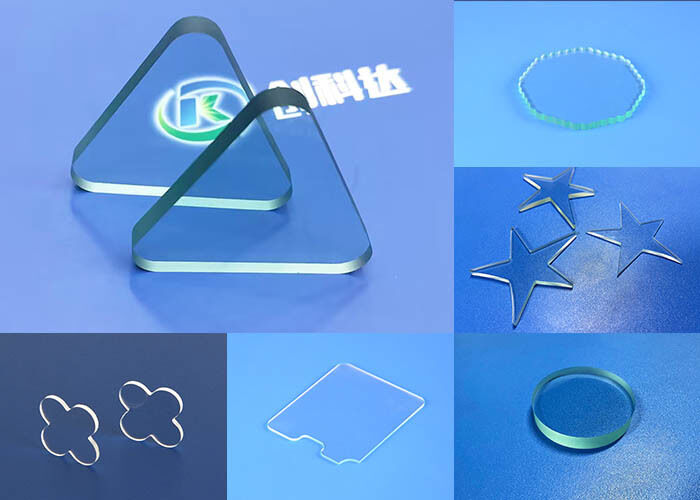

This high precision laser cutting machine is widely used in industries that require accurate and efficient glass processing. It is ideal for cutting ultra-clear glass, plain white glass, high borosilicate glass, quartz glass, optical glass, cover glass, camera glass cover, phone glass cover, car glass, LCD screens, K9 glass, filters, and mirrors. Its capability to handle a broad range of glass materials makes it indispensable in the production of electronic displays, automotive glass, camera lenses, and decorative glass products.

In scenarios where thick glass laser cutting machine performance is critical, CKD’s models with water cooling laser sources and beam quality of M² < 1.2 ensure stable and precise cutting even on thicker glass substrates. The linear speed of up to 1000mm/s supports high productivity while maintaining cutting accuracy. These machines are perfect for factories and workshops focused on producing thick glass components for industrial and commercial use.

For smaller scale operations, the CKD laser glass cutting machines also serve as excellent small glass laser cutting machines. Their compact dimensions (2150mm × 2080mm × 1960mm or 2550mm × 2080mm × 1960mm) and wooden vacuum packaging facilitate easy transportation and installation. The machines support payment terms like L/C and T/T and offer flexible pricing through negotiation, making them accessible for businesses of various sizes.

Typical application occasions include precision cutting in electronics manufacturing for phone and camera glass covers, automotive industry glass processing, optical component fabrication, and decorative glass cutting. The machine’s ability to cut filters and mirrors with high accuracy also opens up applications in scientific instruments and architectural glass design. With a supply ability of 60 sets per month and delivery within 25-45 days, CKD ensures timely fulfillment for urgent production demands.

In summary, CKD’s high precision laser cutting machine lineup is perfectly suited for a wide range of glass cutting scenarios—from thick and complex glass cutting to small-scale, detailed glass processing—delivering reliable, high-quality results for modern glass manufacturing needs.

Support and Services:

Our Laser Glass Cutting Machine is engineered to deliver precision and efficiency for all your glass processing needs. To ensure optimal performance, we provide comprehensive technical support and services tailored to your requirements.

Technical Support: Our expert team is available to assist with installation, calibration, and troubleshooting. We offer detailed user manuals and online resources to guide you through setup and operation. Should you encounter any technical issues, our support staff can provide prompt solutions to minimize downtime.

Maintenance Services: Regular maintenance is crucial for the longevity and accuracy of your laser glass cutting machine. We provide routine inspection services, software updates, and replacement of worn components to keep your equipment running smoothly.

Training: We offer professional training sessions for your operators to maximize the efficiency and safety of the machine. Training covers machine operation, safety protocols, and maintenance procedures.

Customization and Upgrades: To meet evolving production demands, we offer customization options and software upgrades. Our team can help tailor the machine’s capabilities to suit specific project requirements.

Warranty and Repairs: Our laser glass cutting machines come with a comprehensive warranty covering manufacturing defects and performance issues. In case of malfunction, we provide repair services using genuine parts to restore your machine to optimal condition.

We are committed to supporting your business with reliable and responsive service, ensuring your investment in our Laser Glass Cutting Machine delivers maximum value.

Packing and Shipping:

Our Laser Glass Cutting Machine is carefully packaged to ensure it arrives in perfect condition. The machine is securely placed in a sturdy wooden crate with protective foam padding to prevent any damage during transit. All delicate components are individually wrapped and cushioned to maintain their integrity.

The packaging is designed to withstand rough handling and environmental factors during shipping. Clear labeling and handling instructions are affixed to the crate to facilitate safe transport and unloading.

We offer multiple shipping options including sea freight, air freight, and express courier services, depending on your location and urgency. Each shipment is accompanied by detailed documentation, including a packing list, user manual, and warranty information.

Upon delivery, our logistics team coordinates with you to ensure smooth customs clearance and timely receipt of the product. We also provide after-sales support to assist with installation and operation of the Laser Glass Cutting Machine.
