As a typical brittle material, it is hard for optical glass to reach high quality surface with traditional CNC machining. Nonetheless, with the aid of non-contact laser technology, the optical glasses are able to reach the required cutting precision and quality.
To achieve this, there is a need for picosecond infraredultra-fast laser source, as well as high-precision Moving Components, Fully Automated Asynchronous Intelligent loading And Unloading Structure and CCD Camera Automatic Positioning Adjustment.
This equipment is designed to cater to all kinds of glass cutting needs, from smart home displays, camera lenses, coated lenses, heterosexual glasses, LCD screens and automobiles. It features a centralized control to execute glass cutting, mobile phone glass cover cutting, photovoltaic glass cutting and glass cutting and drilling, etc.
It also has the potential for high precision marking and cutting of glass, drilling and cutting of sapphire, marking/drilling/cutting of ceramics and LCD/OLED screen panels, as well as LED wafer dicing and cutting. The laser machine is capable of self-calibrated localization and cutting under vision control with high speed and pinpoint positioning accuracy.
Additionally, its unique design allows it to achieve wear-free operation with no contact between the stationary and mobile components during its movements. This further guarantees virtually no maintenance requirements over a long period of time.
| Parameter | Value |
|---|---|
| Working Environment | 26℃ |
| Cutting Speed | 0-500mm/s |
| Dimension | 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Cutting Accuracy | ±0.01mm |
| Working Voltage | 220V |
| Drive Motor | XY Linear Motor + Grating Ruler |
| Weight | 3500kg |
| Cutting Thickness | ≤25mm |
| Control System | HTI Control |
| Cutting Area | 400mm*500mm/ 600*700mm/ 600*900mm |
| Specialty | Colored glass cutting machine, Small glass laser cutting machine, Single Table Glass Cutting Machine |
Laser source, a high energy infrared picosecond laser, provides a highly energetic laser beam to the system.
An optical mirror system, made up of lenses, mirrors and other optical components, focuses and guides the laser to achieve a precise cutting edge.
The control system, based off advanced numerical control technology, provides laser power control and motion control.
The table holds and stabilizes the glass material while it is processed, often aided by automatic feed and discharge systems to improve production speed.
The cooling system works to keep the laser and optical components at a constant temperature during operation.
Finally, safety protection systems, featuring grating, warning lights, and emergency buttons, are employed to ensure that the operators remain safe.
These configurations form an optical mirror glass laser cutting machine that can provide precision and efficiency when cutting glass material.

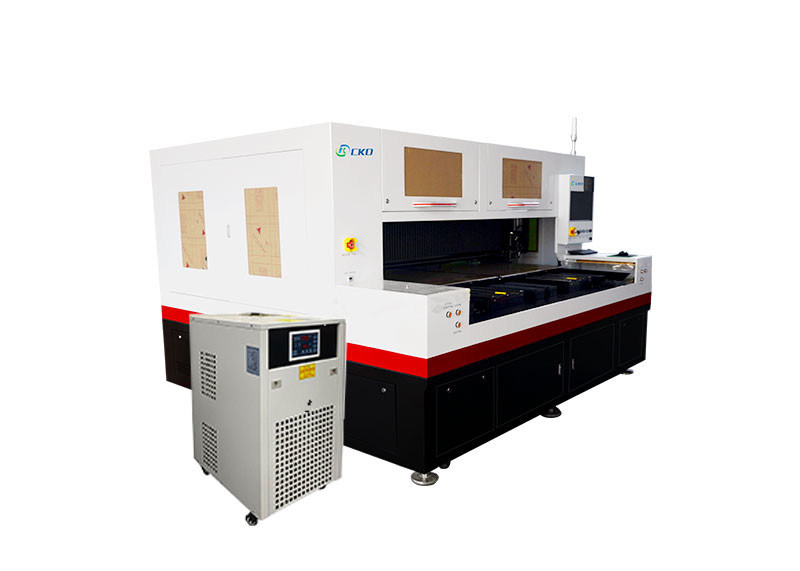

CKD offers customers a wide range of customizable services on its Laser Glass Cutting Machine (Model: CC-GDA17), which is certified by ISO. This small glass laser cutting machine has a cutting area of 400mm*500mm/ 600*700mm/ 600*900mm, and a cutting accuracy of ±0.01mm. It is driven by XY Linear Motor + Grating Ruler, with a laser power of 30/50/60/75/80/90w. Our environment-friendly laser cutting machine is highly precise and has a minimum order quantity of 1. The price is negotiable and the delivery time is 15-45 days. The payment terms are L/C, T/T, and we can provide 50 sets per month. It is packed in a wooden box.
Features of CKD's Laser Glass Cutting Machine:
We provide technical support and service for our Laser Glass Cutting Machine. Our service includes:
The Laser Glass Cutting Machine will be packaged in a double-wall cardboard box with internal foam cushioning and bubble wrap. The box is designed to protect and secure the machine during transportation. The box will be secured with packing tape.
The Laser Glass Cutting Machine will be shipped with a reputable freight company or courier. The freight company/courier will provide tracking information for the shipment. The Laser Glass Cutting Machine will be securely fastened to a pallet in order to prevent any damage during shipment.
Our products are sold all over the world, you can rest assured.
