Polygonal Glass Laser Cutting And Splitting Machine For Various Applications

Polygonal Glass Laser Cutting And Splitting Machine For Various Applications

  • Name
    Glass Laser Cutting Machine
  • Cutting Area
    400mm*500mm/ 600*700mm/ 600*900mm
  • Cutting Accuracy
  • Laser Wavelength
  • Working Frequency
  • Working Voltage
  • Voltage , Powe
    <8KW , AC220V
  • Dimension
    2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Polygonal Glass Laser Cutting And Splitting Machine For Various Applications

Versatile Polygonal Glass Laser Cutting Machine

For Various Applications

Product Description:

Optical glass, a typical brittle material, is hard to be machined with a high-quality surface with traditional CNC machining.However, equipped with non-contact laser technology, the optical glasse can reach the desired accuracy and quality. The whole laser machining system comprises of four main parts:

1.Picosecond infrared ultra-fast laser source, which provides the precise power control for cutting with high speed.

2.High-precision Moving components, allowing to perform various processes with high-accuracy.

3. Fully Automated Asynchronous Intelligent loading And Unloading Structure, for flexible, automated production.

4.CCD Camera Automatic Positioning System, which offers easy manipulation for efficient operation.



This equipment is remarkably versatile and suitable for a variety of different applications; such as cutting glass for smart homes, cutting camera lenses, coated lens cutting, cutting float glass with a laser, laser cutting an LCD screen, cutting the central control glass of a car, cutting mobile phone covers with glass, cutting photovoltaic glass and glass drilling/cutting. Moreover, it can be used in the fields of high-precision glass marking and cutting, drilling and cutting of sapphire, marking/drilling/cutting ceramics, cutting LCD/OLED display panels, LED wafer dicing and cutting.

The equipment is designed to work with extreme precision and speed. It operates by vision and uses no contact between stator and mover, therefore no wear and tear occurs over time. Furthermore, it essentially only requires minimal maintenance.


Technical Parameters:

Product Attributes Details
Material Glass
Cooling System Water Cooling
Voltage, Power <8KW, AC220V
Cutting Area 400mm*500mm/ 600*700mm/ 600*900mm
Laser Power 30/50/60/75/80/90w
Working Voltage 220V
Dimension 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
Cutting Accuracy ±0.01mm
Name Glass Cutting And Splitting Machine (All-in-One)
Laser Type Infrared Picosecond
Keywords Thick glass laser cutting machine, Environmental protection glass laser cutting machine, optical glass Laser Cutting Machine

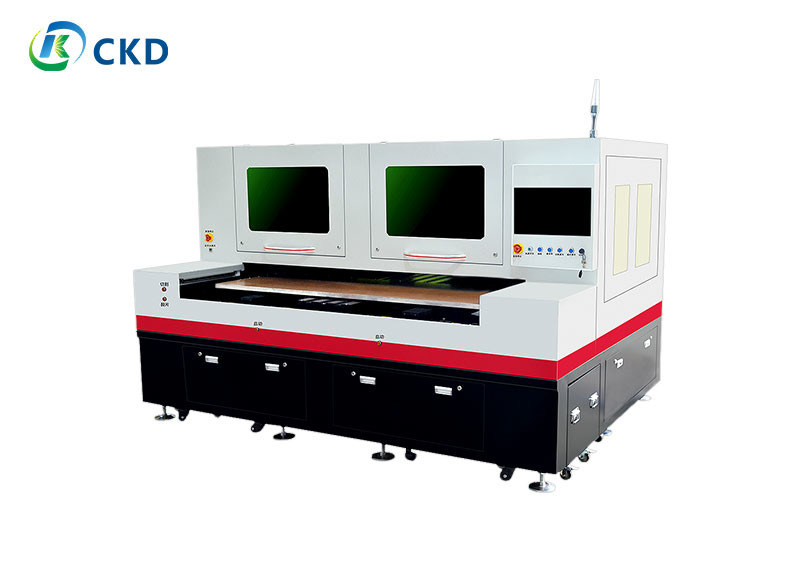

Polygonal Glass Laser Cutting And Splitting Machine For Various Applications 0


Laser source is the primary component of a laser cutting machine. High energy lasers, infrared picosecond lasers, generate high energy laser beams which can then be manipulated by optical mirror systems, including lenses, mirrors, and other optical components, to guide and focus the beams for accurate and precise cutting. A control system uses advanced numerical control technology to provide precision control of laser cutting machine, with motion and power control features.

Table plays a major role in holding and securing the glass material in place while using a laser cutting machine. It is complete with an automatic feed and discharge system to improve the overall production efficiency and speed of the operation. Just as important, a cooling system maintains a stable temperature to cool the laser and optics components. For the safety of personnel, safety protection systems are also integrated, including sensors, warning lights, and emergency stop buttons inside the sturdy enclosure.

All the key components are combined together to form an optical laser glass cutting machine, which is able to deliver efficient and precise cutting of glass materials.



Laser Glass Cutting Machine
  • Brand Name: CKD
  • Model Number: CC-GDA17
  • Place of Origin: China
  • Certification: ISO
  • Minimum Order Quantity: 1
  • Price: Negotiated
  • Packaging Details: Wooden box
  • Delivery Time: 15-45 days
  • Payment Terms: L/C, T/T
  • Supply Ability: 50 sets per month
  • Cutting Thickness: ≤25mm
  • Drive motor: XY Linear Motor + Grating Ruler
  • Laser wavelength: 1064nm
  • Laser Power: 30/50/60/75/80/90w
  • Working Frequency: 50HZ/60HZ
  • Special Feature: Irregular glass cutting, optical glass Laser Cutting Machine, Thick glass laser cutting machine.
Polygonal Glass Laser Cutting And Splitting Machine For Various Applications 1

Support and Services:

We provide full technical support and services for our Laser Glass Cutting Machine. Our services include:

  • Installation: Our team of expert technicians are available to install and set up your machine.
  • Maintenance: We provide regular maintenance and repair services to ensure your machine is running at peak efficiency.
  • Training: We provide comprehensive training for your staff to ensure they are able to use the machine safely and correctly.
  • Spare Parts: We stock a wide range of spare parts to keep your machine running smoothly.

Packing and Shipping:

Packaging and Shipping

The Laser Glass Cutting Machine is packed in a sturdy box with foam inserts to protect it during transit. The box is then sealed with plastic wrap to avoid any moisture or dust entering the box. The box is then labelled with the appropriate shipping information and placed on a pallet ready for shipment.

The Laser Glass Cutting Machine is shipped via ground transportation for domestic orders and air freight for international orders. All shipments are insured for the full value of the machine and tracked to ensure its safe arrival.




Q1: I don't know anything about this machine, what kind of machine should I choose?
Very easy to choose. Just tell us what you want to do with a picosecond glass cutter and let us provide you with the perfect solution and advice.
Q2: When I got this machine, I didn't know how to use it. what do I do?
We will send video and English manual to the machine. If you still have questions, we can chat by phone or via Skype and email.
Q3: What should I do if the machine has a problem during the warranty period?
If there is a problem with the machine, we will repair it for free during the machine warranty period. So if you have any questions, please let us know and we will provide you with a solution.
Q4: Before asking me about our fiber lasers, you'd better provide me with the following information
1) Your metal or non-metal material size. Because in our factory, we have different models according to the work area.
2) Your material.
3) Do you want to engrave or cut?

If cutting, can you tell me the thickness of your cut? Because different cutting thicknesses require different laser tube power and laser power suppliers.
