Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area

Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area

  • Trade Name
    Glass Laser Cutting Machine
  • Laser Power
  • Laser Wavelength
  • Cutting Speed
  • Voltage , Powe
    <8KW , AC220V
  • Dimension
    2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
  • Cooling System
    Water Cooling
  • Key Selling Points
    Ultra Fast Picesecond
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area

Thick Optical Filters Glass Laser Cutting Machine

With 600*700mm Cutting Area

Product Description:

Optical glass is a brittle material, which makes it difficult to machine with traditional CNC machining. However, non-contact laser technology has the capability to produce high-quality surfaces and required cutting precision. In order to achieve this, the following components are put into use:

  • Picosecond infrared ultra-fast laser source
  • High-precision Moving Components
  • Fully Automated Asynchronous Intelligent loading And Unloading Structure
  • CCD Camera Automatic Positioning System


With these components, non-contact laser technology is able to produce a precise and high-quality surface, making optical glass able to perfectly meet cutting requirements.



This sophisticated equipment is designed to be used for cutting a vast array of materials, including glass. From smart home displays to camera lenses, heterosexual glasses to LCD screens, it even includes applications for automobile glass cutting and mobile phone glass casing. Furthermore, the laser machine can help with precise marking and cutting of glass, sapphire drilling, ceramic marking, drilling, and cutting, and with LCD, OLED displays, LED wafer dicing.

What makes this equipment so impressive is its automated features; by using a vision system, it is able to locate and cut materials with enormous speed and accuracy, without having to make contact with the material. This means that there is no wear and tear and no need for maintenance for a long period of time.


Technical Parameters:

Parameter Value
Laser Wavelength 1064nm
Cooling System Water Cooling
Material Glass
Drive Motor XY Linear Motor + Grating Ruler
Working Voltage 220V
Name Glass Cutting And Splitting Machine (All-in-One)
Key Selling Points Ultra Fast Picesecond
Cutting Speed 0-500mm/s
Laser Power 30/50/60/75/80/90w
Voltage , Power <8KW , AC220V
Polygonal Glass Cutting Machine Yes
Colored Glass Cutting Machine Yes
Irregular Glass Cutting Machine Yes

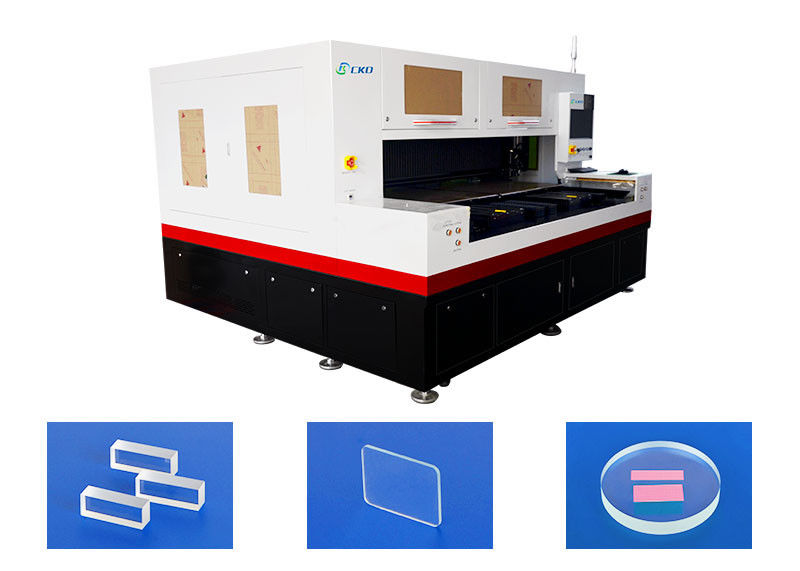

Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area 0

Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area 1


The cutting machine is a combination of several parts assembled specifically for the purpose of laser cutting. The main components are the laser source, the optical mirror system, the control system, the table, the cooling system and the safety protection system.

The laser source is a high energy infrared picosecond laser; it emits a beam of laser that is used for the cutting. The optical mirror system contains lenses, mirrors, and other optical components--these components are meant to focus and guide the laser beam, with the purpose of providing a high level of precision to the cutting.

The control system is composed of motion control and laser power control, which relies on the use of advanced numerical control technology for its functioning. The table where the glass material is placed is typically equipped with an automatic feed and discharge system in order to increase the efficiency of the production. In addition to this, there is a cooling system that is used to cool down the lasers and the components related to the optics.

Finally, the safety protection system includes some pieces of equipment, such as grating, warning lights and emergency stop buttons, that guarantee the safety of the personnel operating the machine. Summing all these elements up, what one obtains is a laser cutting machine for glass materials that is capable of both achieving a high level of precision and efficiency.



Laser Glass Cutting Machine

Brand Name: CKD

Model Number: CC-GDA17

Place of Origin: China

Certification: ISO

Minimum Order Quantity: 1

Price: Negotiated

Packaging Details: Wooden box

Delivery Time: 15-45 days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per month

Laser wavelength: 1064nm

Cutting Area: 400mm*500mm/ 600*700mm/ 600*900mm

Drive motor: XY Linear Motor + Grating Ruler

Cutting Accuracy: ±0.01mm

Cooling System: Water Cooling

Our Laser Glass Cutting Machine are:
  • Small glass laser cutting machine
  • Environmental protection glass laser cutting machine
  • Fiber Laser Cutting Machine
  • Laser Glass Cutting Machine
Thick Optical Filters Glass Laser Cutting Machine With 600*700mm Cutting Area 2

Support and Services:

Laser Glass Cutting Machine Technical Support and Service

Our technical support team is available to answer any of your questions and provide you with the best possible service. Our staff is knowledgeable and experienced in the operation and maintenance of laser glass cutting machines.

We offer a wide range of services, including troubleshooting, repair, replacement parts, and software updates. We also offer preventative maintenance and remote monitoring services. Our goal is to keep your laser glass cutting machine running efficiently and reliably.

If you ever have any questions or need any help with your machine, please don’t hesitate to contact us. We are here to help you in any way we can.


Packing and Shipping:

Packaging and Shipping for Laser Glass Cutting Machine:

The laser glass cutting machine will be shipped in a wood crate. It will be cushioned with foam to protect it during transit. The crate will be securely sealed to ensure that no damage is done to the machine during shipping. After the machine arrives at its destination, the customer will need to remove the crate and foam materials before operating the machine.



1.What is the machine warranty and after sale service?
We will provide instruction videos and operation manuals to help you operate the machine. During covid19, we can provide whatsapp videos and WeChat online videos teach you how to use the machine step by step.
The machine has 1 years of after-sales service. During the warranty period, if there is any quality problem with the machine, we will replace with new parts and send it to you by express. Our freight. If there is any problem with the quality of the machine more than 1 years warranty, our after sales service team will help you solve it within 8 hours.
2. Is this machine has quickly-wear part?
The service life of the picosecond laser cutting machine is more than 100,000 hours, keeping better
work environment. Except for the damaged parts, no parts need to be replaced.
3. Will the package be damaged during transportation?
Our packages take all damage factors into consideration and make sure the product will be in safe
transportation. We have exported to 180 countries worldwide. So transportation won't be problem
for us and customers will definitely receive products in good condition.
