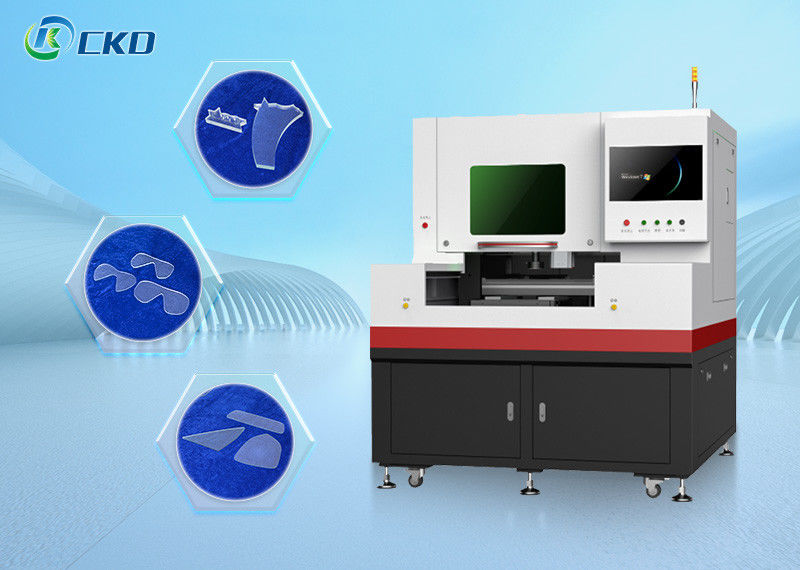

Precise Picosecond Laser Cutting Machine for Untreated Aluminosilicate Glass 50W/80W

Precise Picosecond Laser Cutting Machine for Untreated Aluminosilicate Glass 50W/80W

  • High Light

    80W Laser Cutting Glass Machine


    50W Laser Cutting Glass Machine

  • Name
    Laser Cutting Glass Machine
  • Power
  • Material
    Plain White Glass
  • Work Size
    610*700mm X 2
  • Cutting Accuracy
  • Cutting Thickness
  • Place of Origin
  • Brand Name
  • Certification
    ISO / CE / FDI
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Sets Per Month

Precise Picosecond Laser Cutting Machine for Untreated Aluminosilicate Glass 50W/80W

The new picosecond laser cutting machine is used to cut chemically strengthened or untreated aluminosilicate glass

 Equipment description

The picosecond laser glass cutting machine is a high-quality cutting equipment that offers superior performance compared to traditional cutting methods including high efficiency , with cutting speeds of up to 500mm/s , which is several times faster than CNC machines . It can cut up to 19mm thick glass in a single pass , which is three times more than traditional cutting methods . It also produces smooth and even edges , with no micro-cracks , breakage , or fragments .


The optimized material flow in our systems allows producing small quantities just as efficiently as mass production lots. Low production costs per component are a result of our short machine set-up times.

Our systems are capable of processing all typical materials:

Our Laser Cutting Machines can be used for glass cutting in a wide range of applications and industries, e.g.:

  • cover glasses for a wide range of electronic applications
  • cutting transportation glass for trains or cars, i.e. interior or exterior glass (mirrors, side windows, windscreens, etc.)
  • specific architectural glass like smart windows
  • or technical glass for e.g. optical substrates

Precise Picosecond Laser Cutting Machine for Untreated Aluminosilicate Glass 50W/80W 0


Technical Parameters

Device Name Infrared Picosecond Glass Cutting & Splitting Machine
Dual-Table Glass Cutting Machine Single Table Glass Cutting Machine
Type HT-IPC- 6070CD/6090CD HT-IPC-4050D/6070D/6090D HT-IPC- 4050/6070/6090
Cutting laser source
Laser type Infrared Picosecond
Power 50W ( optional 10W , 20W , 30W , 60W , 80W , etc .)
Wave length 1064nm , Beam quality: M2<1.2
Pulse width <10PS; Pulse frequency :1Hz-1000kHz
Type of cooling water-cooling
Cutting Performance
Drive Motor XY linear motor + grating ruler , positioning accuracy <±2um , repetition accuracy < soil 1.5um , acceleration 1G , linear speed maximum 1000mm/s
Cutting speed 0-500mm/s
Cutting thickness Ultra white glass one knife <19mm , green plate glass two knives <19mm(according to product material , thickness , speed requirements to choose the required laser power and cutting head focal depth ; Material may affect the processing thickness thicker can take multi-tool cutting)
Minimum cutting edge breakage ≤5um
Cutting Accuracy ±0.01mm
X/Y cutting stroke 600*900*2 / 800*1000mm*2 400x500mm , 600x700mm , 600x900mm dual platform 400x500mm ,600x700mm ,600x900mm
Cutting laser source
Laser Type RFCO2
Power 150W / 250W / 350W
Wave length 10.6um
Type of cooling water-cooling
Voltage , size , weight
Voltage, power <8KW,AC220V <5KW,AC220V <4KW,AC220V









Weight 3500KG / 40000KG 2000KG / 3500KG / 40000KG

2000KG / 2500KG / 3000KG



Precise Picosecond Laser Cutting Machine for Untreated Aluminosilicate Glass 50W/80W 1



The PEARLs are based on granite, which offers inherent accuracy and long-term stability. The coefficient of thermal expansion of granite is 4 times lower than that of steel. This guarantees a sustainable production of high precision and high quality products. The specific tuning of the axis controllers not only results in a high cutting speed, but also in excellent path accuracy to achieve high-precision outer contours in the end product. An optional autofocus offers further advantages with regard to the robustness of the process window without having to accept a loss of process speed.

Our PEARLS are currently available in three versions with three standard working ranges. The length of the L and XL systems is scalable. Other sizes on request!

  • 1000mm width and length 800mm as HT-IPC- 6070CD
  • 900mm wide and length 600mm as HT-IPC-4050D
  • 1000m wide and scalable in length HT-IPC-4050
