Professional Laser Glass Cutting Machine 0.01mm Cutting Accuracy For Glass Manufacturing

Professional Laser Glass Cutting Machine 0.01mm Cutting Accuracy For Glass Manufacturing

  • High Light

    Professional Glass Cutting Machine

    ,

    Glass Manufacturing Laser Glass Cutting Machine

    ,

    Professional Laser Glass Cutting Machine

  • Splitting Laser Source Cooling Method
    Water Cooling
  • Repeatability
    ±1.5um
  • Cutting Thickness
    0.03~25mm
  • Linear Speed
    Up To 1000mm/s
  • Drive Motor
    XY Linear Motor + Grating Ruler
  • Cutting Accuracy
    ±0.01mm
  • Splitting Laser Source Laser Type
    RFC02 (Radio Frequency CO2)
  • Splitting Laser Source Wavelength
    10.6µm
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO CE
  • Model Number
    CKD-DP6070C
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

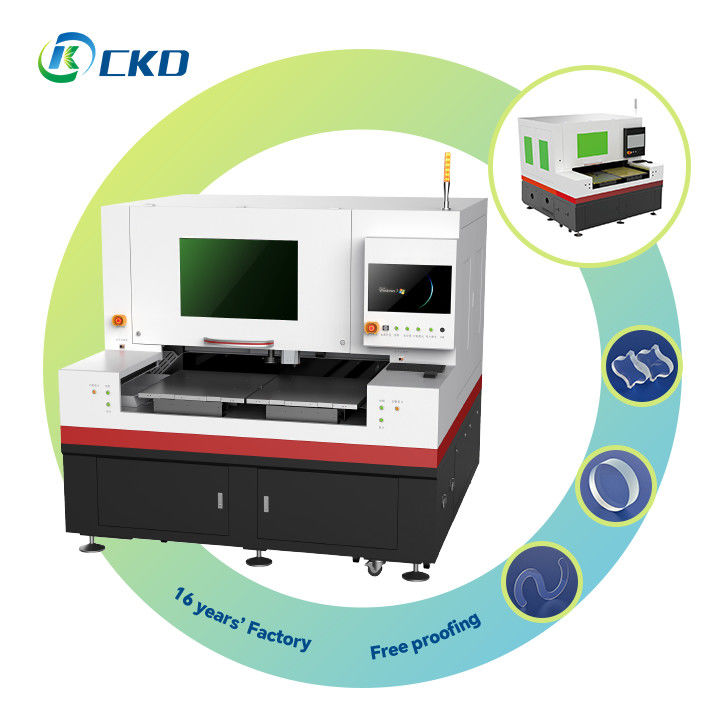

Professional Laser Glass Cutting Machine 0.01mm Cutting Accuracy For Glass Manufacturing



Product Description:CKD E Catalog2310.pdf

  1. This state-of-the-art laser cutting machine is ideal for high-precision glass cutting applications. Designed for both efficiency and precision, this advanced machine features a self-developed glass cutting head equipped with fully imported lenses, which ensure a refined laser beam and a long focal depth. This design allows for both integrated and separate cutting and breaking processes, providing a high level of versatility to meet various production requirements.
  2. Boasting high-end linear motors for the X and Y axes, as well as German-made 0.1um digital grating scales, this machine offers exceptionally precise and smooth motion control. Additionally, the standard PSO (Position Synchronized Output) function guarantees uniform control of laser spot spacing, which is essential for achieving consistent, high-quality cuts.
  3. To further enhance precision and reduce errors, the machine is equipped with a precise CCD positioning system. Telecentric optical lenses enable accurate recognition of circular and cross marks, further enhancing cutting precision. The use of Schneider Electric components and a Mean Well power supply ensures reliable and stable operation, reflecting the machine's high-quality construction and durability.
  4. Capable of cutting single glass pieces up to 19mm in thickness, this laser cutting machine meets the demands of various industrial applications - from automotive to architectural glass. The base of the motor platform and optical platform is crafted from natural marble, providing exceptional stability and enhanced precision during operation.
  5. This high-power picosecond laser cutting machine delivers superior cutting performance, efficiency, and reliability, making it an ideal choice for high-precision glass cutting tasks in various industries.
    Professional Laser Glass Cutting Machine 0.01mm Cutting Accuracy For Glass Manufacturing 0





Features:

  • Our cutting-edge technology revolutionizes the glass cutting industry by offering exceptional performance and an array of benefits. By equipping this state-of-the-art cutting system, you can be assured of a high cutting quality that ensures smooth, precise edges without tapering.
  • The cut surfaces remain perfectly parallel with no narrowing along the edges, making it stand out in the industry. Furthermore, our technology eliminates the burrs, leaving the edges clean and smooth without any additional deburring operations required, saving you both time and labor costs. Minimizing chipping also ensures the material's edges remain intact and flawless, making it well-suited for delicate applications.
  • Our technology is also budget-friendly, with low operational costs, making it an economical choice for any business. The high yield rates of this cutting system enable a significant boost in production efficiency by processing more materials within a specified time frame. Additionally, our technology has minimal consumables and is highly energy-efficient, contributing to lower overall production costs and a smaller environmental footprint.
  • The cutting system is also versatile, capable of high-speed cutting of irregular shapes while maintaining precision and quality, making it suitable for various industries. Additionally, our eco-friendly technology produces no pollution, dust, or wastewater during the cutting process, guaranteeing a clean and safe working environment in line with sustainable manufacturing practices.
  • To sum it up, our cutting technology offers unparalleled quality and efficiency. It guarantees high-quality cuts with minimal chipping, burrs, or tapering, making it cost-effective with low operational costs. The high-speed cutting of irregular shapes and minimal consumables and energy consumption make it suitable for various industries. Furthermore, it ensures sustainability by producing no pollution, dust, or wastewater in the process.


Technical Parameters:

Description

Our infrared picosecond pulse laser is designed to provide precise cutting of ultra-clear and blue glass with minimum cutting burr. The machine is equipped with an XY linear motor and optical grating scales to ensure high positioning accuracy and repeatability while maintaining a cutting precision of ±0.01mm.

Cooling Method

The laser uses water cooling to maintain a stable operating temperature.

Pulse Width

The pulse width of the laser is less than 10ps.

Pulse Frequency

The laser can operate at pulse frequencies ranging from 1 Hz to 1000 kHz.

Wavelength

The wavelength of the laser is 1064nm.

Beam Quality

The laser has a beam quality of M^2 < 1.2, ensuring a high-quality cutting process.

Power

The laser has a power capacity of 50W, although options for 10W, 20W, 30W, 60W, 80W, and other power capacities are also available.

Drive Motor

The laser is equipped with an XY linear motor and optical grating scales to provide precise positioning and repeatable results.

Positioning Accuracy

The laser has a high positioning accuracy of ±2um, ensuring optimal cutting precision.

Repeatability

The laser has a repeatability of ±1.5um.

Acceleration

The laser has an acceleration capacity of 1G.

Linear Speed

The laser has a linear speed capability of up to 1000mm/s.

Cutting Speed

The cutting speed of the laser is adjustable from 0 to 500mm/s.

Cutting Thickness

The laser can cut ultra-clear glass with a single cut thickness of ≤19mm and blue glass with a double cut thickness of ≤19mm.

Minimum Cutting Burr

The laser ensures minimum cutting burr of ≤5um.

Cutting Precision

The laser ensures a cutting precision of ±0.01mm, ensuring high accuracy results.

X/Y Cutting Range

The laser has a cutting range of 610×700mm.

Laser Type (RFC02)

Our RFC02 (Radio Frequency CO2) laser uses water cooling and has a wavelength of 10.6μm. It has a power capacity of 150W, although options for 250W/350W are also available.

Weight

The laser weighs approximately 3500KG/40000KG.

Machine Dimensions (Option 1)

The machine measures Length 2550mm x Width 2080mm x Height 1960mm.

Machine Dimensions (Option 2)

The machine measures Length 2150mm x Width 2080mm x Height 1960mm.

Voltage, Power

The laser has a voltage and power capacity of <8KW, AC220V.



Applications:

Application Industry

There are various industries that make use of glass in one form or another. These industries include the glass processing industry, real estate industry, automobile industry, communication media industry, home appliance industry and new energy industry. Each industry has specific requirements for the type of glass used.

Types of Glass Used

There are different types of glass used in different industries. Some examples of such glass include Optic glass, UTG glass, Willow glass and Brittle Biomedical glass used in the glass processing industry, architectural decoration and bathroom glass used in the real estate industry, car glass and instrumentation panel glass used in the automobile industry, mobile and watch sapphire cover, camera and CCTV lens glass used in the communication media industry, and home appliance glass panel and lighting glass used in the home appliance industry. Additionally, photovoltaic glass is used in the new energy industry.

Glass Processing Industry

Glass processing industry involves complex fabrication and processing techniques. These techniques are used to create various types of glass, including Optic glass used for high-end optical equipment, UTG glass used for touch screens and display panels, Willow glass used in creating flexible electronic displays and Brittle Biomedical glass used in biomedical implants and devices.

Real Estate Industry

The real estate industry requires glass for architectural decoration purposes and for use in bathroom fixtures. Glass is an ideal material for decorative purposes and is used extensively in modern architecture. Bathroom fixtures like shower enclosures and mirrors are made of tempered glass to ensure safety.

Automobile Industry

The automobile industry uses glass in various parts of the car such as the windshield, side windows, rear windows, and instrumentation panel glass. The glass used in the automobile industry needs to be tough and withstand great amounts of pressure and temperature changes to ensure the safety of passengers.

Communication Media Industry

Glass plays an important role in the communication media industry, where it is used in mobile and watch sapphire covers, camera and CCTV lens glass. Sapphire covers are used to protect the screen of mobile devices and watches. Camera and CCTV lens glass are used to ensure clear and sharp images. The glass used in this industry is of high quality and has specific properties like resistance to scratches, and high clarity.

Home Appliance Industry

Glass panels are used extensively in the home appliance industry. Glass is used as a front panel on a variety of appliances such as ovens, refrigerators, and dishwashers. Lighting glass is another type of glass used in the home appliance industry. It is used in lighting fixtures and helps diffuse and guide light.

New Energy Industry

The new energy industry uses photovoltaic glass to harness solar energy. This type of glass has a special film coating that allows the sun's energy to be converted into electricity. It is used in solar panels to generate renewable energy.



Customization:

  • Brand Name: CKD
  • Model Number: CKD-DP6070C
  • Place of Origin: China
  • Certification: ISO
  • Minimum Order Quantity: 1
  • Price: Negotiated
  • Packaging Details: Wooden vacuum packaging
  • Delivery Time: 15-45 days
  • Payment Terms: L/C, T/T
  • Supply Ability: 50 sets per month
  • Drive motor: XY Linear Motor + Grating Ruler
  • Cutting Speed: Adjustable From 0-500mm/s
  • Cooling System: Water Cooling
  • Support image and text formats: AI PLT DXF BMP Dst DWg LAS DXP
  • Wavelength: 1064nm

The CKD-DP6070C polygonal glass cutting machine is capable of cutting colored glass with high precision. With its adjustable cutting speed of up to 500mm/s, it can accommodate a wide range of glass thicknesses. The machine is equipped with a water cooling system to ensure optimal performance and longevity. It supports various image and text formats including AI, PLT, DXF, BMP, Dst, DWg, LAS, and DXP. The product is ISO certified and can be customized according to individual needs. The minimum order quantity is one and the price is negotiable. Each unit is packaged in wooden vacuum packaging to ensure safe delivery. The delivery time is 15-45 days and payment terms include L/C and T/T. The machine has a supply ability of 50 sets per month.



Support and Services:

The Laser Glass Cutting Machine product comes with comprehensive technical support and services to ensure the optimal performance and longevity of the machine. Our team of experts is available to provide installation, maintenance, and repair services for the machine. We also offer training sessions to help operators learn how to use the machine effectively and efficiently. In addition, we provide technical assistance and troubleshooting support to address any issues that may arise. Our goal is to ensure that our customers receive the best possible experience with our product and services.



Packing and Shipping:

Product Packaging:

  • 1 Laser Glass Cutting Machine
  • 1 Water Chiller
  • 1 Exhaust Fan
  • 1 Air Pump
  • 1 Tool Kit
  • User Manual and Installation Guide

Shipping:

  • Ships within 3-5 business days
  • Free shipping within the US
  • International shipping available, fees apply
  • Ships in a wooden crate for protection

FAQ:

Q: What is the brand name of this Laser Glass Cutting Machine?

A: The brand name is CKD.

Q: What is the model number of this Laser Glass Cutting Machine?

A: The model number is CKD-DP6070C.

Q: Where is this Laser Glass Cutting Machine manufactured?

A: This machine is manufactured in China.

Q: Does this Laser Glass Cutting Machine come with any certification?

A: Yes, it comes with ISO certification.

Q: What is the minimum order quantity for this Laser Glass Cutting Machine?

A: The minimum order quantity is 1.

Q: Can the price be negotiated?

A: Yes, the price is negotiable.

Q: What is the packaging method for this Laser Glass Cutting Machine?

A: The machine is packaged in wooden vacuum packaging.

Q: How long will it take to receive the Laser Glass Cutting Machine after placing an order?

A: The delivery time is between 15-45 days.

Q: What payment methods are accepted for purchasing this Laser Glass Cutting Machine?

A: We accept L/C and T/T payments.

Q: How many sets of this Laser Glass Cutting Machine can be supplied per month?

A: We can supply up to 50 sets per month.
